KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )LHD

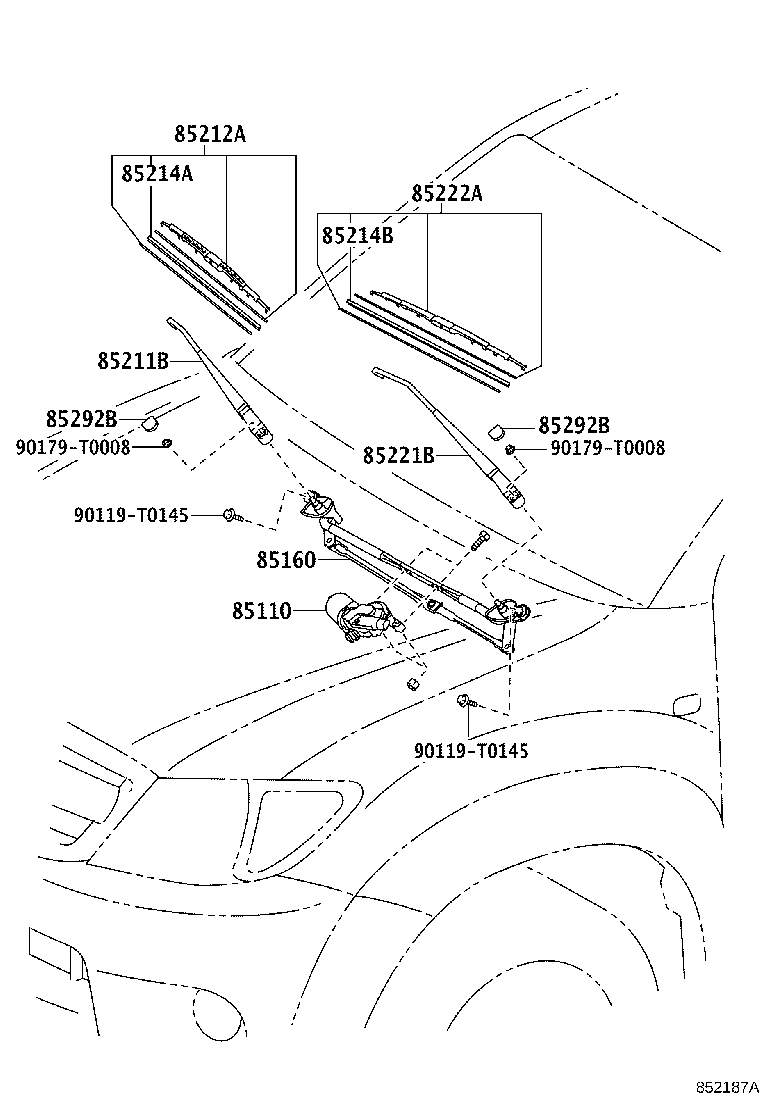

Click highlighted areas on diagram

diagram 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 90119T0145 90119T0145 90179T0008 90179T0008
Part # Description Qty Price
Common parts
90119-T0145
90179-T0008

(1107- )LHD

Click highlighted areas on diagram

diagram 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 90119T0145 90119T0145 90179T0008 90179T0008
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-0K061

KUN2#,35..LHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-0K061

KUN2#,35..LHD

 1
85211B - ARM, FRONT WIPER, RH
85211-0K020

KUN2#,35..LHD

 1
85212A - BLADE, FR WIPER, RH
85212-0K020

KUN2#,35..LHD

 1
85214A - RUBBER, WIPER, RH
85214-0K040

KUN2#,35..LHD

 1
85214B - RUBBER, WIPER, LH
85214-0K051

KUN2#,35..LHD

 1
85221B - ARM, FRONT WIPER, LH
85221-0K030

KUN2#,35..LHD

 1
85222A - BLADE, FR WIPER, LH
85222-0K031

KUN2#,35..LHD

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-0K030

KUN2#,35

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-0K030

KUN2#,35

 2
Common parts
90119-T0145
90179-T0008
