KUN25L-CRMDHH (2011)
Toyota Hilux
Production
Nov 2011
-
Apr 2015
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0507- )KUN2#

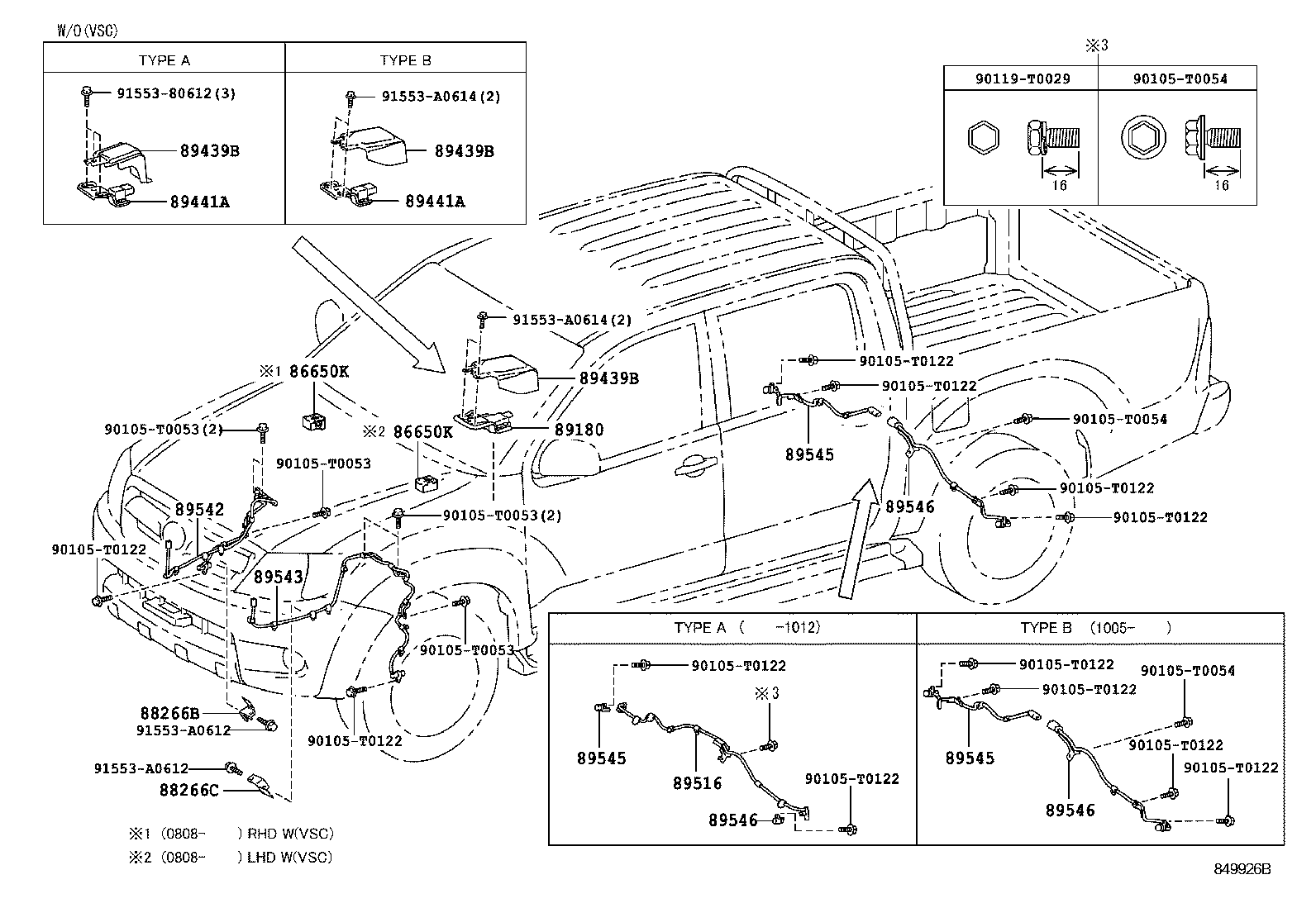

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0053 | ||||
| 90105-T0054 | ||||
| 90105-T0122 | ||||
| 90119-T0029 | ||||
| 91553-80612 | ||||
| 91553-A0612 | ||||
| 91553-A0614 | ||||
(1107- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88266B - CLAMP, SKID CONTROL SENSOR, NO.1 | ||||
| 88266-0K020 |
KUN2#,35 |
1 | ||
| 88266C - CLAMP, SKID CONTROL SENSOR, NO.2 | ||||
| 88266-0K030 |
KUN2#,35 |
1 | ||
| 89180 - SENSOR ASSY, YAWRATE | ||||
| 89180-71010 |
KUN2#,35..LHD..(THDCB,XTR)..CBU VSC-WITH |
1 | ||
| 89439B - BRACKET, SENSOR | ||||
| 89439-0K030 |
KUN2#,35 (L) |
1 | ||
| 89439-71020 |
KUN2#,35 (J) |
1 | ||
| 89441A - SENSOR, DECELERATION | ||||
| 89440-71030 |
KUN2#,35..THDCB,THSCB,XTR LABEL=89441-60030 |
1 | ||
| 89440-71030 |
KUN25,35;KUN26..SR |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-0K020 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 89542-71010 |
KUN2#,35..LHD..(THDCB,XTR)..CBU VSC-WITH |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-71010 |
KUN2#,35..LHD..(THDCB,XTR)..CBU VSC-WITH |
1 | ||
| 89543-0K020 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-0K070 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 89545-71030 |
KUN2#,35..LHD..(THDCB,XTR)..CBU VSC-WITH |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-0K070 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 89546-71030 |
KUN2#,35..LHD..(THDCB,XTR)..CBU VSC-WITH |
1 | ||
| Common parts | ||||
| 90105-T0053 | ||||
| 90105-T0054 | ||||
| 90105-T0122 | ||||
| 90105-T0201 | ||||
| 91553-A0612 | ||||
