KUN25L-CRMDHH (2011)
Toyota Hilux
Production
Nov 2011
-
Apr 2015
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

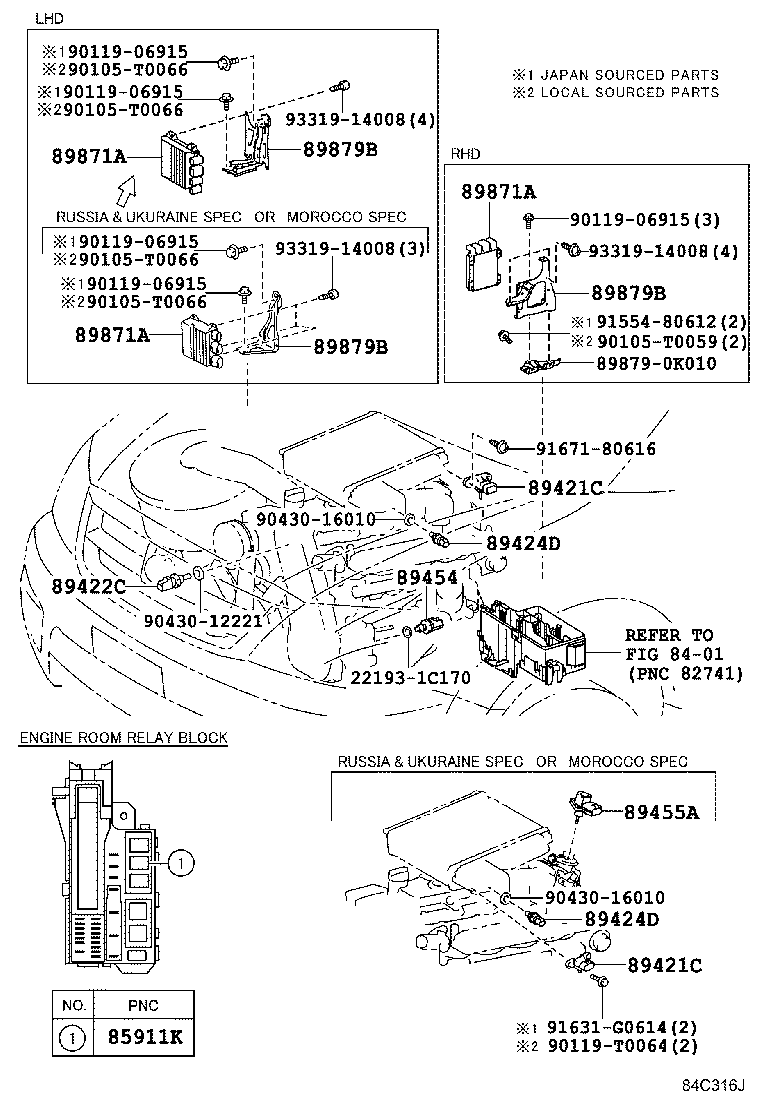

ILLUST NO. 1 OF 2(1107- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85911K - RELAY, HEATER(FOR AIR FUEL RATIO SENSOR) | ||||
| 90987-02027 |
KUN2#,35 (J) |
1 | ||
| 90987-T2001 |
KUN2#,35 (L) |
1 | ||
| 89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO) | ||||
| 89421-71030 |
KUN2#,35 |
1 | ||
| 89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO) | ||||
| 89421-71030 |
KUN2#,35 |
1 | ||
| 89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE | ||||
| 89422-33030 |
KUN2#,35 |
1 | ||
| 89424D - SENSOR, INLET AIR TEMPERATURE | ||||
| 89424-60010 |
KUN2#,35 |
1 | ||
| 89424D - SENSOR, INLET AIR TEMPERATURE | ||||
| 89424-60010 |
KUN2#,35 |
1 | ||
| 89454 - SENSOR, FUEL TEMPERATURE | ||||
| 89454-20010 |
KUN2#,35 |
1 | ||
| 89871A - DRIVER, INJECTOR | ||||
| 89871-20080 |
KUN2#,35 |
1 | ||
| 89871A - DRIVER, INJECTOR | ||||
| 89871-20080 |
KUN2#,35 |
1 | ||
| 89871A - DRIVER, INJECTOR | ||||
| 89871-20080 |
KUN2#,35 |
1 | ||
| 89879B - BRACKET, INJECTOR DRIVER | ||||
| 89879-71050 |
KUN2#,35..LHD |
1 | ||
| 89879B - BRACKET, INJECTOR DRIVER | ||||
| 89879-71050 |
KUN2#,35..LHD |
1 | ||
| 89879B - BRACKET, INJECTOR DRIVER | ||||
| 89879-71050 |
KUN2#,35..LHD |
1 | ||
| Common parts | ||||
| 22193-1C170 | ||||
| 89879-0K010 | ||||
| 90105-T0059 | ||||
| 90105-T0066 | ||||
| 90119-06915 | ||||
| 90119-T0064 | ||||
| 90430-12221 | ||||
| 90430-16010 | ||||
| 91554-80612 | ||||
| 91631-G0614 | ||||
| 91671-80616 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1107- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89661-0KW50 |
KUN25 P/N LABEL=896610KW50 |
1 | ||
| 89661-0KW60 |
KUN25 P/N LABEL=896610KW60 |
1 | ||
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89661-0KW50 |
KUN25 P/N LABEL=896610KW50 |
1 | ||
| 89661-0KW60 |
KUN25 P/N LABEL=896610KW60 |
1 | ||
| 89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-0K050 |
KUN2#,35..LHD |
1 | ||
| 89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-0K050 |
KUN2#,35..LHD |
1 | ||
| 89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-0K070 |
KUN2#,35..LHD |
1 | ||
| 89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-0K070 |
KUN2#,35..LHD |
1 | ||
| Common parts | ||||
| 90105-T0066 | ||||
| 90159-T0001 | ||||
| 90178-T0018 | ||||
| 90179-06110 | ||||
