KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )

Click highlighted areas on diagram

diagram 7456 81205B 81240 81240B 8202 9008016055
Part # Description Qty Price
Common parts
90080-16055
Linked diagrams
7456
8202

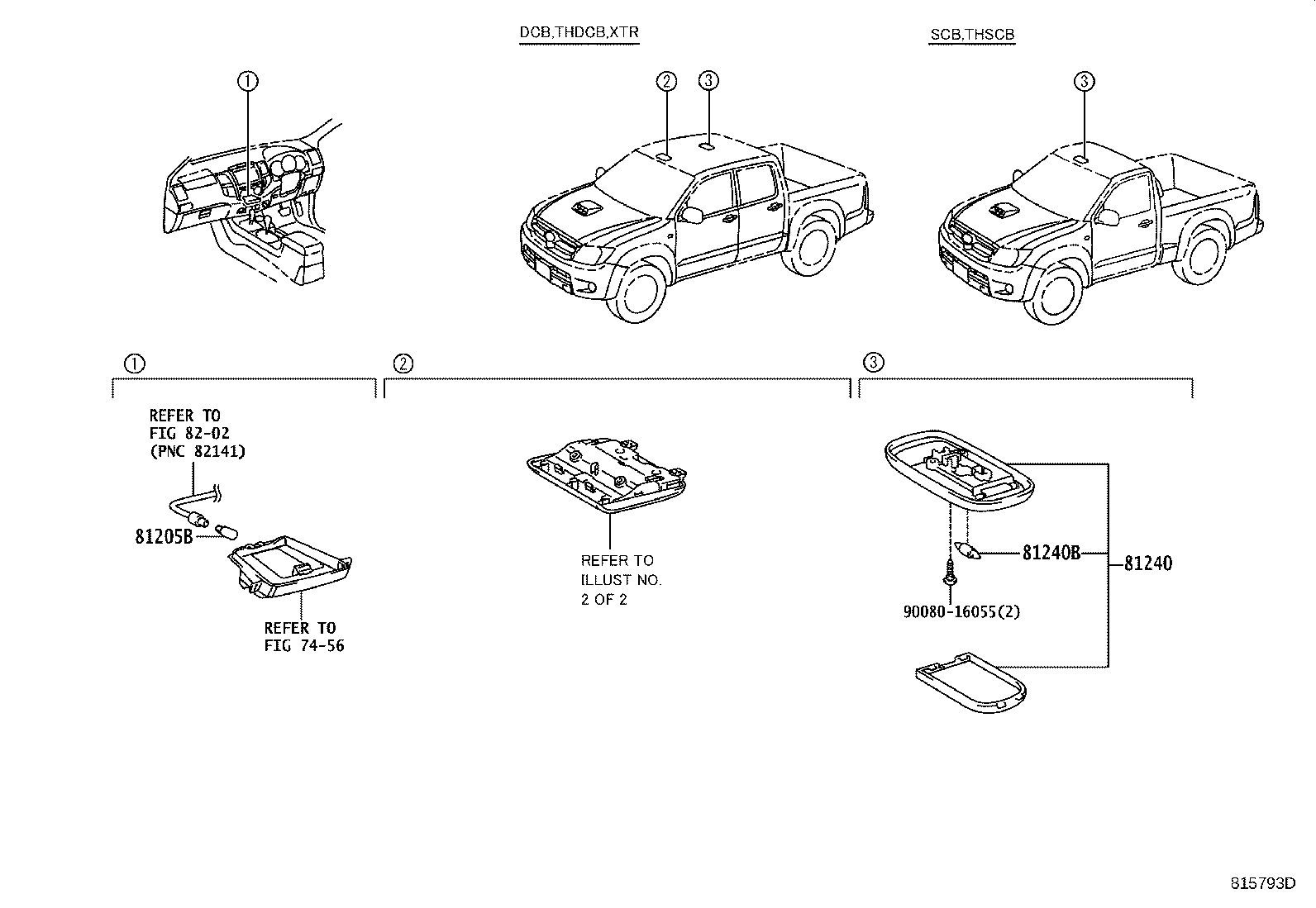

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

diagram 7456 81205B 81240 81240B 8202 9008016055
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-0K010B0

KUN2#,35

LT.GRAY,TRIM1#,2#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

KUN2#,35

12V 8W

 1
Common parts
90080-16055
Linked diagrams
7456
8202

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

diagram 81260A 81260C 81260C 81265C 81266D 81936C 81936C 8603 9015940206 90159T0047 90189T0002
Part # Description Qty Price
81260A - LAMP ASSY, MAP
81260-0K070B0

KUN25..DLX..FLD

LT.GRAY,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90981-11062

KUN2#,35..DCB,THDCB,XTR

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

KUN2#,35..DCB,THDCB,XTR

12V 8W

 2
81265C - LENS, MAP LAMP, NO.1
81265-0K020

KUN2#,35..DCB,THDCB,XTR

 1
81266D - LENS, MAP LAMP, NO.2
81266-0K020

KUN2#,35..DCB,THDCB,XTR

 1
81936C - BULB ASSY
81936-12150

KUN2#,35..DCB,THDCB,XTR

 2
81936C - BULB ASSY
81936-12150

KUN2#,35..DCB,THDCB,XTR

 2
Common parts
90159-40206
90159-T0047
90189-T0002
Linked diagrams
8603
