KUN25L-CRMDHH (2011)
Toyota Hilux
Production
Nov 2011
-
Apr 2015
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0507- )

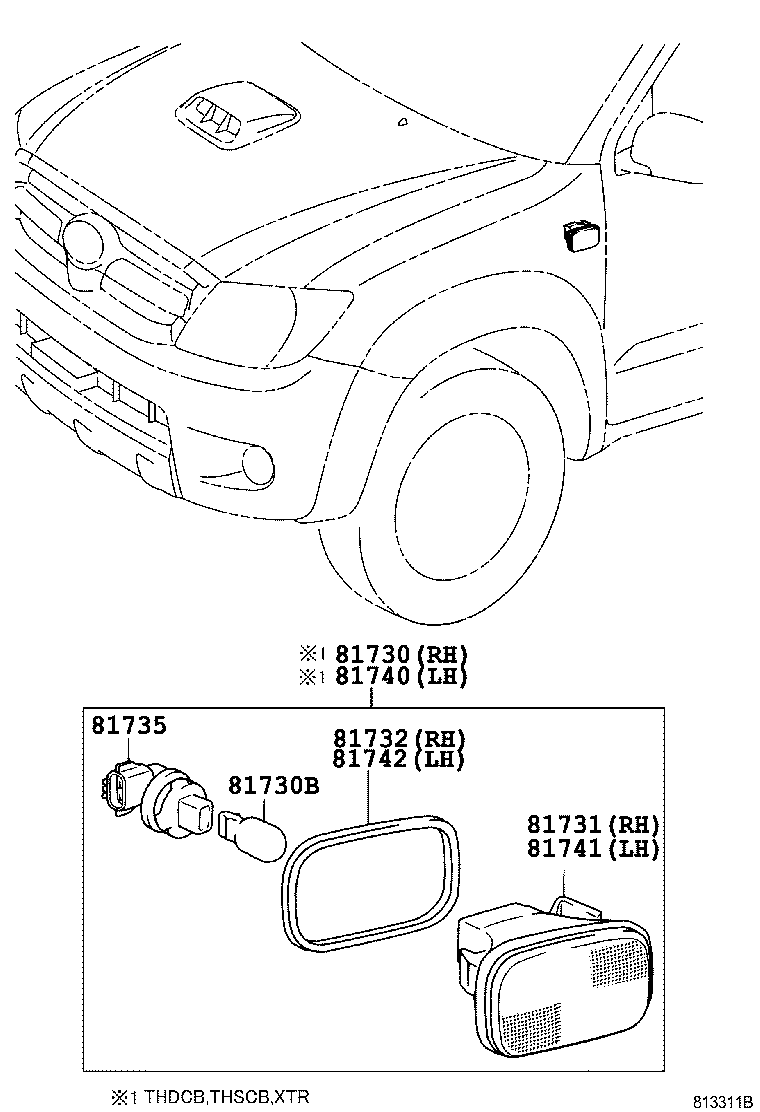

Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
(1107- )

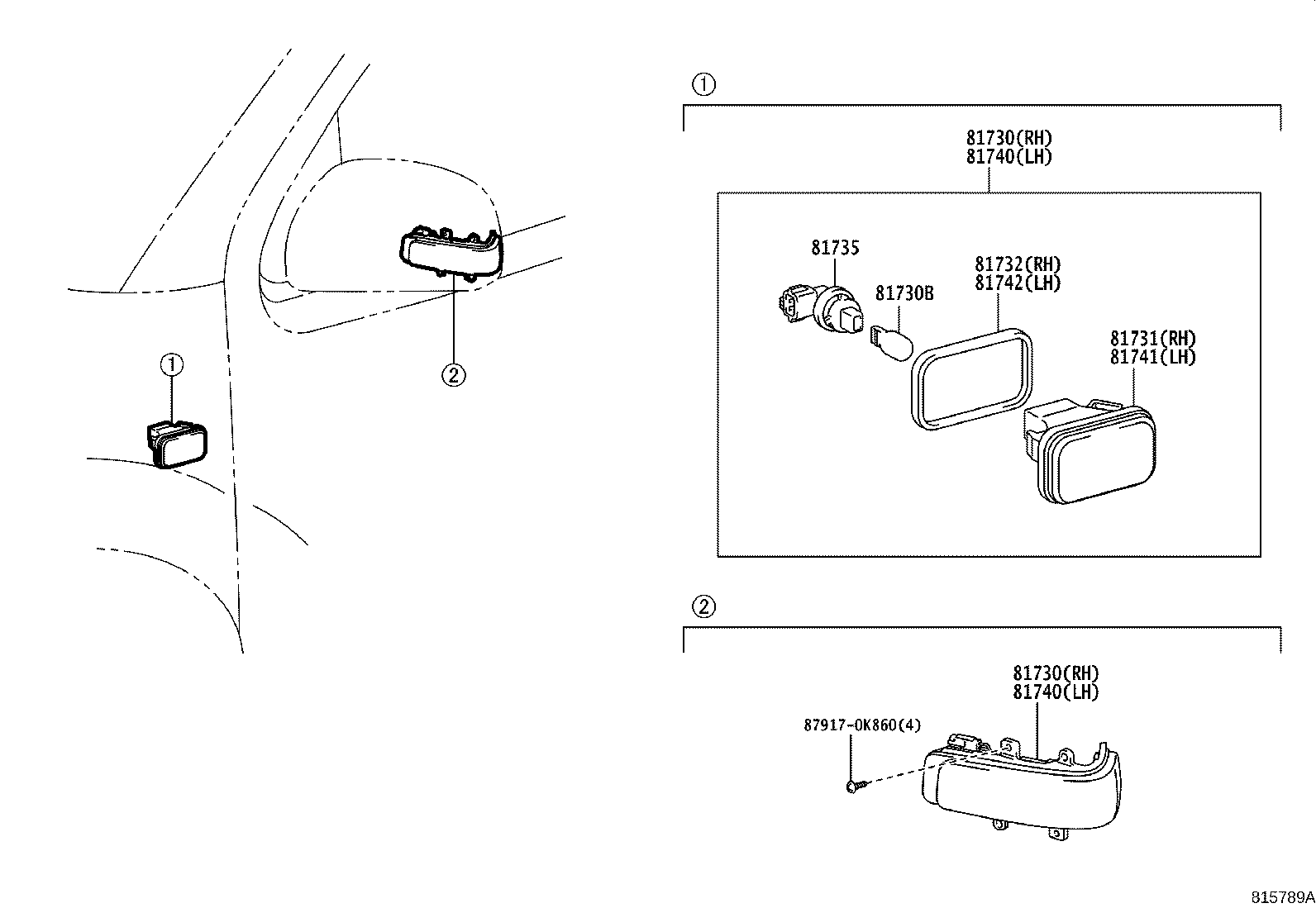

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-0K030 |
KUN25,35..(THDCB,THSCB,XTR)..DLX |
1 | ||
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-0K030 |
KUN25,35..(THDCB,THSCB,XTR)..DLX |
1 | ||
| 81730B - BULB (FOR SIDE TURN SIGNAL LAMP) | ||||
| 99132-12050 |
KUN35..DLX;KUN35..SCB..SR;KUN25..SCB,THSCB;KUN2#..(DCB,THDCB,XTR)..DLX 12V 5W |
2 | ||
| 81731 - LENS, SIDE TURN SIGNAL LAMP, RH | ||||
| 81731-0K030 |
KUN25,35..(THDCB,THSCB,XTR)..DLX |
1 | ||
| 81732 - GASKET, SIDE TURN SIGNAL LAMP LENS, RH | ||||
| 81732-02040 |
KUN25,35..(THDCB,THSCB,XTR)..DLX |
1 | ||
| 81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP | ||||
| 90075-99012 |
KUN25,35..(THDCB,THSCB,XTR)..DLX |
2 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81730-0K030 |
KUN25,35..(THDCB,THSCB,XTR)..DLX |
1 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81730-0K030 |
KUN25,35..(THDCB,THSCB,XTR)..DLX |
1 | ||
| 81741 - LENS, SIDE TURN SIGNAL LAMP, LH | ||||
| 81731-0K030 |
KUN25,35..(THDCB,THSCB,XTR)..DLX |
1 | ||
| 81742 - GASKET, SIDE TURN SIGNAL LAMP LENS, LH | ||||
| 81732-02040 |
KUN25,35..(THDCB,THSCB,XTR)..DLX |
1 | ||
| Common parts | ||||
| 87917-0K860 | ||||
