KUN25L-CRMDHH (2011)
Toyota Hilux

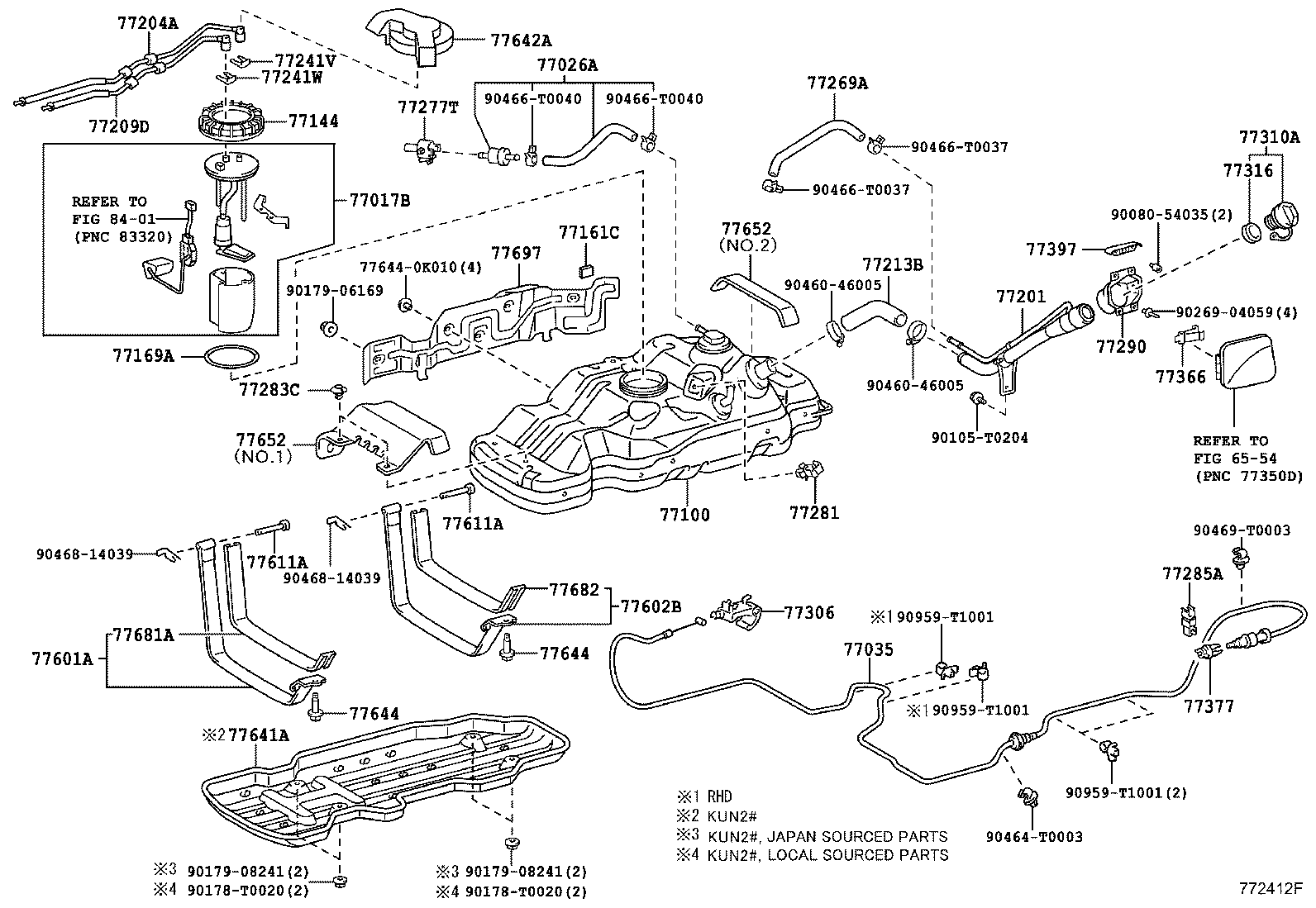

ILLUST NO. 1 OF 2(0507- )CBU
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 77644-0K010 | ||||
| 90080-54035 | ||||
| 90105-T0204 | ||||
| 90178-T0020 | ||||
| 90179-06169 | ||||
| 90179-08241 | ||||
| 90269-04059 | ||||
| 90460-46005 | ||||
| 90464-T0003 | ||||
| 90466-T0037 | ||||
| 90466-T0040 | ||||
| 90468-14039 | ||||
| 90469-T0003 | ||||
| 90959-T1001 | ||||
| Linked diagrams | ||||
| 6554 | ||||
| 8401 | ||||

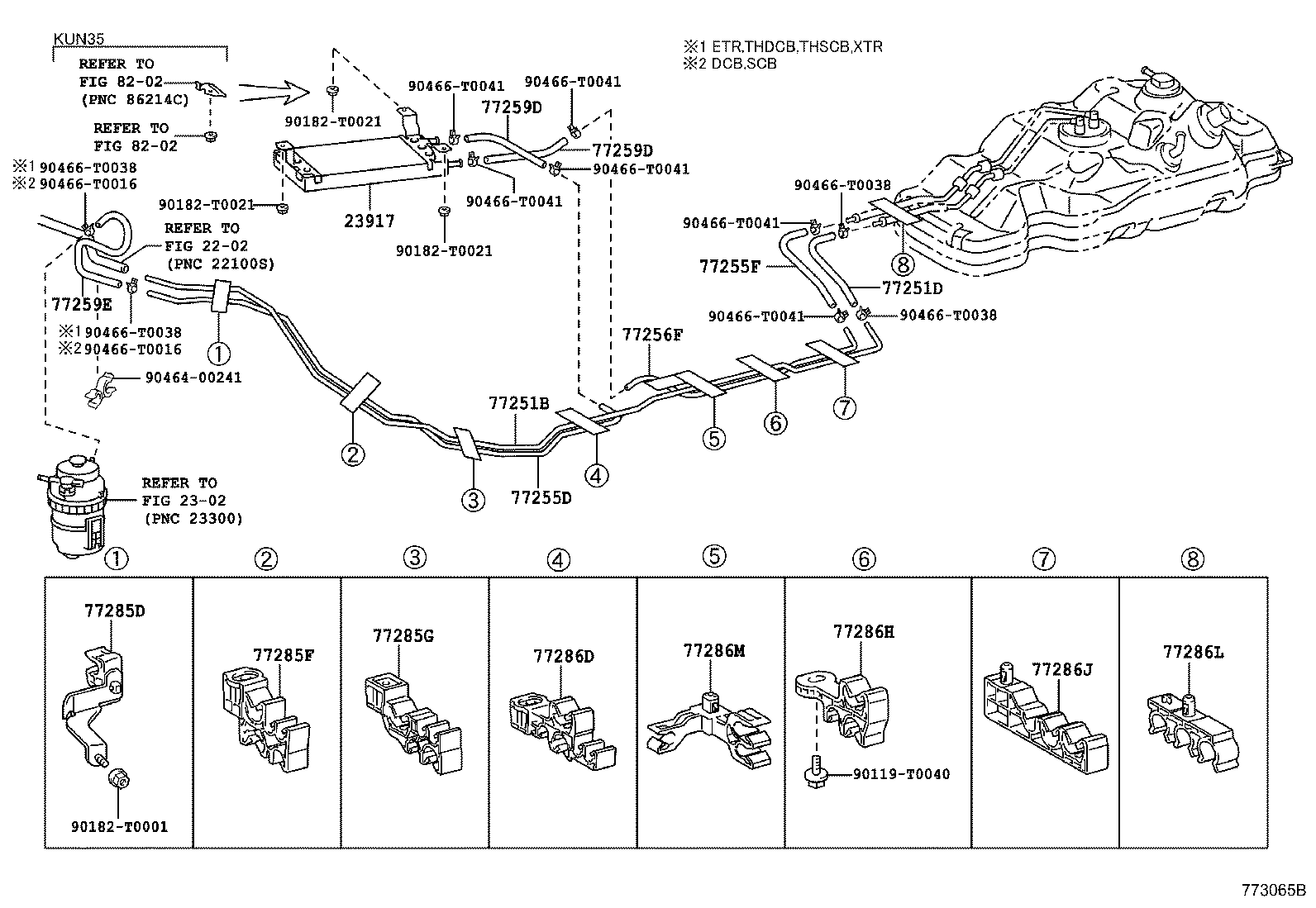

ILLUST NO. 2 OF 3(1107- )
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23917 - COOLER, FUEL | ||||
| 23917-30011 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0K030 |
KUN2#,35 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95338-10020 |
KUN2#,35 L=200 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-0K090 |
KUN2#,35 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95338-08022 |
KUN2#,35 L=220 |
1 | ||
| 77256F - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-0K010 |
KUN2#,35 |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-71060 |
KUN2#,35 |
2 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-71060 |
KUN2#,35 |
2 | ||
| 77259E - HOSE, FUEL | ||||
| 77259-0K060 |
KUN2#,35 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K030 |
KUN2#,35 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K040 |
KUN2#,35 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K050 |
KUN2#,35 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K090 |
KUN2#,35 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-0K100 |
KUN2#,35 |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77286-0K130 |
KUN2#,35 |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77286-0K060 |
KUN2#,35 |
1 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77286-0K080 |
KUN2#,35 |
1 | ||
| Common parts | ||||
| 90119-T0040 | ||||
| 90182-T0001 | ||||
| 90182-T0021 | ||||
| 90464-00241 | ||||
| 90466-T0016 | ||||
| 90466-T0038 | ||||
| 90466-T0041 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
| 8202 | ||||
ILLUST NO. 3 OF 3(1107- )CBU
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0K120 |
KUN25,35..LHD..XTR..CBU |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0K120 |
KUN25,35..LHD..XTR..CBU |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-0K190 |
KUN2#,35..CBU |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-0K190 |
KUN2#,35..CBU |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0K010 |
KUN2#,35..(THDCB,THSCB,XTR)..CBU |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0K010 |
KUN2#,35..(THDCB,THSCB,XTR)..CBU |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-0K030 |
KUN2#,35..CBU |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0K010 |
KUN2#,35..CBU |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0K010 |
KUN2#,35..CBU |
1 | ||
| Common parts | ||||
| 90269-04059 | ||||
| 90464-T0003 | ||||
| 90469-T0003 | ||||
| 90959-T1001 | ||||
| Linked diagrams | ||||
| 6554 | ||||

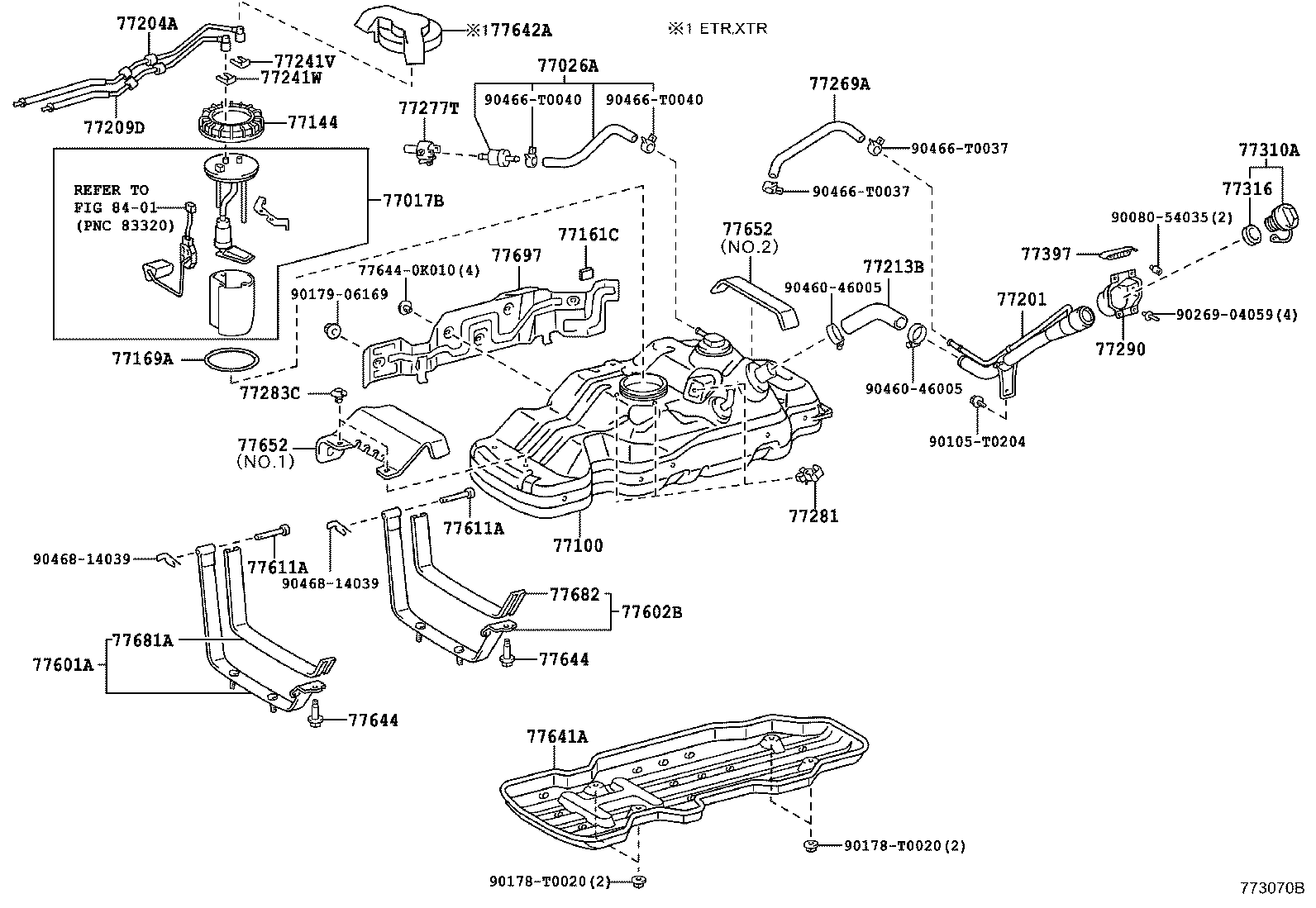

ILLUST NO. 1 OF 3(1107- )CBU
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77010-0K011 |
KUN2#,35 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77027-0K010 |
KUN2#,35 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0K220 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0K010 |
KUN2#,35 |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77671-0K010 |
KUN2#,35 |
3 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0K010 |
KUN2#,35 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-0K100 |
KUN2#,35..CBU |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-0K020 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0K020 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0K020 |
KUN2#,35 |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-35450 |
KUN2#,35 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
KUN2#,35 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-0K020 |
KUN2#,35 |
1 | ||
| 77277T - BRACKET, CHECK VALVE | ||||
| 77277-0K010 |
KUN2#,35 |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-0K070 |
KUN2#,35 |
3 | ||
| 77283C - BRACKET, FUEL TANK PROTECTOR | ||||
| 77283-0K010 |
KUN2#,35 |
2 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-0K010 |
KUN2#,35..(THDCB,THSCB,XTR)..CBU |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
KUN2#,35..CBU |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
KUN2#,35..CBU |
1 | ||
| 77397 - PLATE, FUEL INLET PIPE SEAL | ||||
| 77397-0K010 |
KUN2#,35..CBU |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-0K040 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-0K040 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
KUN2#,35 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
KUN2#,35 |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-0K050 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77641-0K100 |
KUN25,35..XTR |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
KUN2#,35 |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
KUN2#,35 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-0K010 |
KUN2#,35 NO.1:REFER ILLUST. |
1 | ||
| 77652-0K020 |
KUN2#,35 NO.2:REFER ILLUST. |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-0K010 |
KUN2#,35 NO.1:REFER ILLUST. |
1 | ||
| 77652-0K020 |
KUN2#,35 NO.2:REFER ILLUST. |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-0K040 |
KUN2#,35 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-0K020 |
KUN2#,35 |
1 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0K010 |
KUN2#,35 |
1 | ||
| Common parts | ||||
| 77644-0K010 | ||||
| 90080-54035 | ||||
| 90105-T0204 | ||||
| 90178-T0020 | ||||
| 90179-06169 | ||||
| 90269-04059 | ||||
| 90460-46005 | ||||
| 90466-T0037 | ||||
| 90466-T0040 | ||||
| 90468-14039 | ||||
| Linked diagrams | ||||
| 8401 | ||||
