KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )

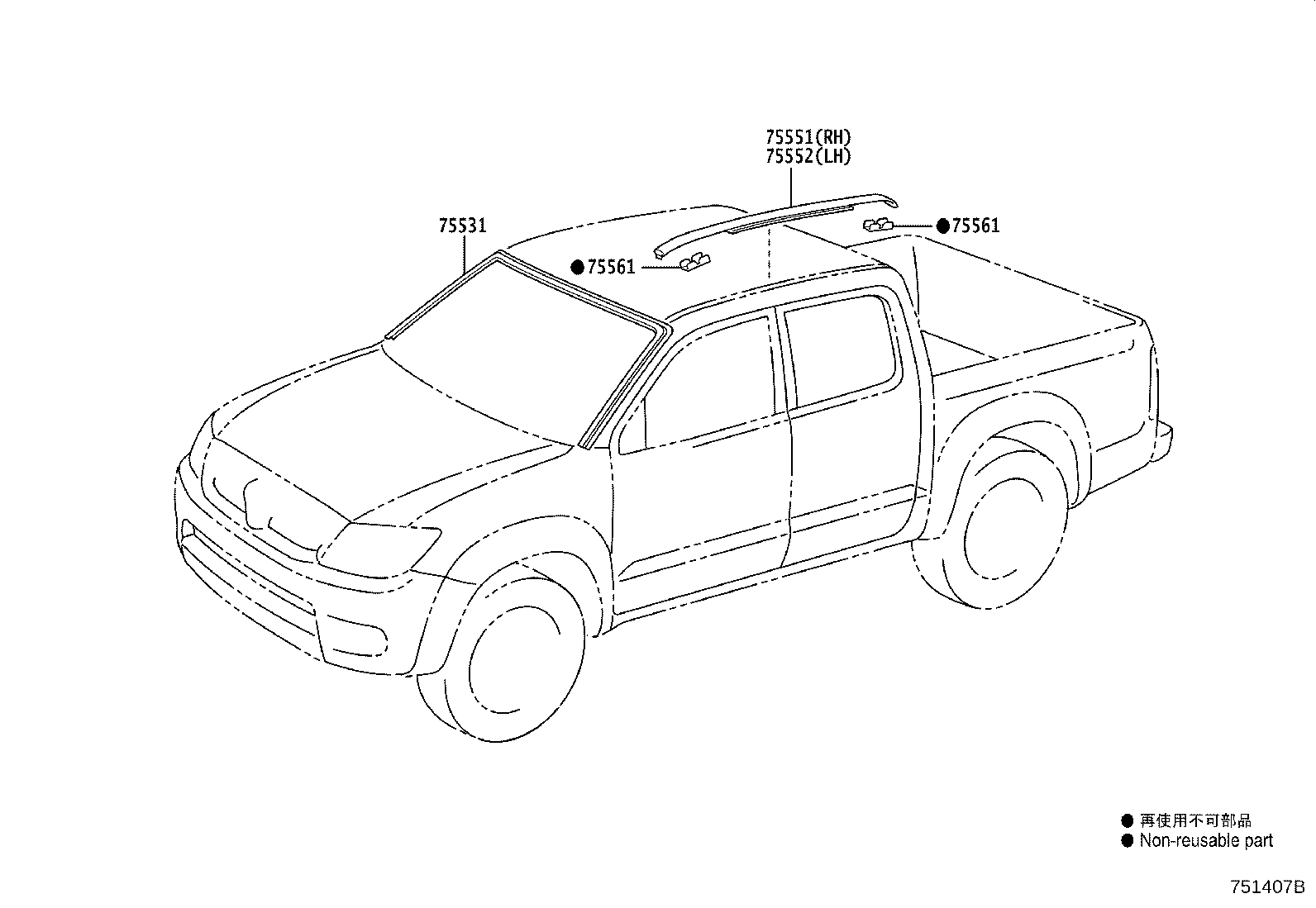

Click highlighted areas on diagram

diagram 75531 75551 75552 75561 75561
Part # Description Qty Price

(1107- )

Click highlighted areas on diagram

diagram 75531 75551 75552 75561 75561
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-0K010

KUN2#,35

 1
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-0K041

KUN25,35..XTR

NO PAINT REQ.

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-0K041

KUN25,35..XTR

NO PAINT REQ.

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-52020

KUN2#,35

 4
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-52020

KUN2#,35

 4
