KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0507- )

Click highlighted areas on diagram

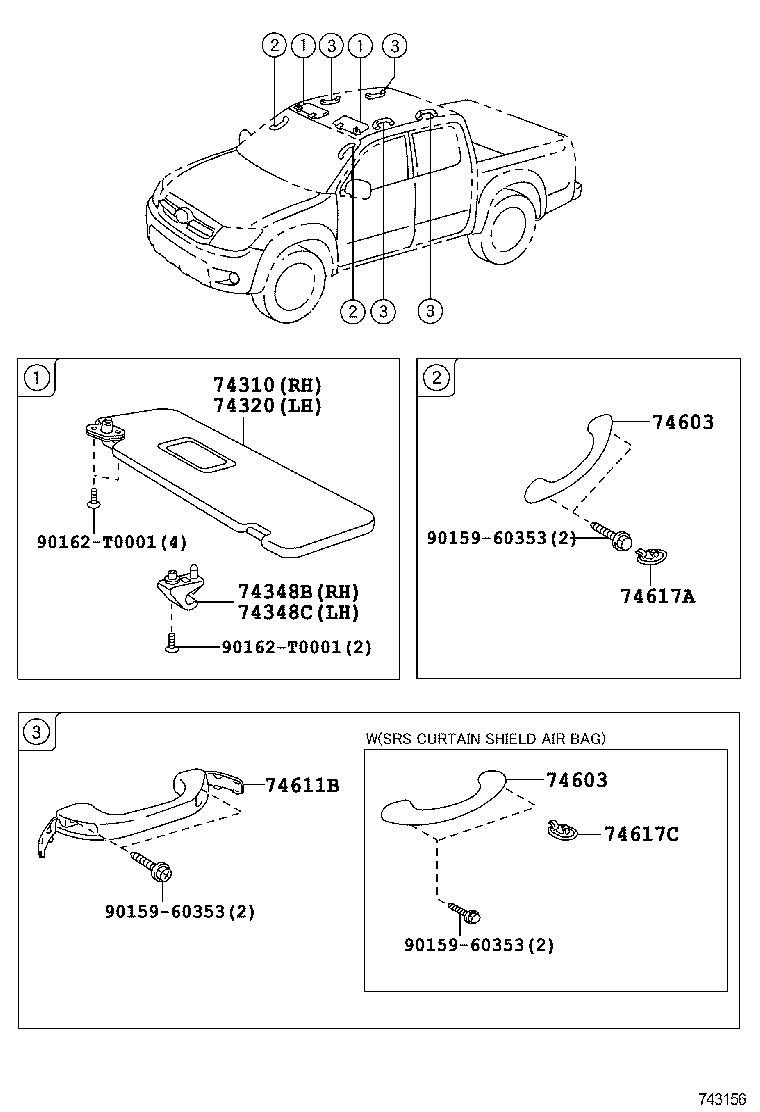

VISOR & ASSIST GRIP

diagram 74310 74320 74348B 74348C 74603 74603 74611B 74617A 74617C 9015960353 9015960353 9015960353 90162T0001 90162T0001
Part # Description Qty Price
Common parts
90159-60353
90162-T0001

ILLUST NO. 1 OF 2(0507- )LHD..SCB,THSCB,XTR

Click highlighted areas on diagram

ARMREST

diagram 6751 6751 74231 74232 74811B 74811B 90164T0006 90164T0006 9046710203 9046710203
Part # Description Qty Price
Common parts
90164-T0006
90467-10203
Linked diagrams
6751

ILLUST NO. 1 OF 2(1107- )SCB,THSCB,XTR

Click highlighted areas on diagram

ARMREST

diagram 6751 6751 6751 6751 74231 74231 74232 74232 74811B 74811B 74811B 74811B 90164T0006 90164T0006 90164T0006 90164T0006 9046710203 9046710203 9046710203 9046710203
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-0K020B1

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

POWER DOOR LOCK-WITH,MD.GRAY,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-0K020B1

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

POWER DOOR LOCK-WITH,MD.GRAY,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0K060B1

KUN25,35..LHD..(THSCB,XTR)..DLX

POWER DOOR LOCK-WITH,MD.GRAY,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0K060B1

KUN25,35..LHD..(THSCB,XTR)..DLX

POWER DOOR LOCK-WITH,MD.GRAY,TRIM1#

 1
74811B - HANDLE, DOOR PULL
74811-0K010B1

KUN25,35..THSCB,XTR

MD.GRAY,TRIM1#

 2
74811-0K010C0

KUN25,35..THSCB,XTR

BLACK,TRIM2#

 2
74811B - HANDLE, DOOR PULL
74811-0K010B1

KUN25,35..THSCB,XTR

MD.GRAY,TRIM1#

 2
74811-0K010C0

KUN25,35..THSCB,XTR

BLACK,TRIM2#

 2
74811B - HANDLE, DOOR PULL
74811-0K010B1

KUN25,35..THSCB,XTR

MD.GRAY,TRIM1#

 2
74811-0K010C0

KUN25,35..THSCB,XTR

BLACK,TRIM2#

 2
74811B - HANDLE, DOOR PULL
74811-0K010B1

KUN25,35..THSCB,XTR

MD.GRAY,TRIM1#

 2
74811-0K010C0

KUN25,35..THSCB,XTR

BLACK,TRIM2#

 2
Common parts
90164-T0006
90467-10203
Linked diagrams
6751

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74348B 74348C 74603 74603 74611B 74617A 74617C 9015960353 9015960353 9015960353 90162T0001 90162T0001
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-0K150B0

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

LT.GRAY,TRIM1#,2#

 1
74320 - VISOR ASSY, LH
74320-0K020B0

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

LT.GRAY,TRIM1#,2#

 1
74348B - HOLDER, VISOR, RH
74348-0K010B0

KUN2#,35..THDCB,THSCB,XTR

LT.GRAY,TRIM1#,2#

 1
74348C - HOLDER, VISOR, LH
74348-0K010B0

KUN2#,35..THDCB,THSCB,XTR

LT.GRAY,TRIM1#,2#

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-0K020B0

KUN25,35..THDCB,THSCB,XTR

LT.GRAY,TRIM1#,2#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-0K020B0

KUN25,35..THDCB,THSCB,XTR

LT.GRAY,TRIM1#,2#

 2
74611B - GRIP, ASSIST
74611-0K040B0

KUN25,35..XTR..SR;KUN25,35..(THDCB,THSCB,XTR)..DLX

LT.GRAY,TRIM1#,2#

 1
74617A - PLUG, ASSIST GRIP
74615-0K010B0

KUN2#,35..THDCB,THSCB,XTR

LT.GRAY,TRIM1#,2#,FRONT-RH,REAR-LH

 2
74616-0K010B0

KUN2#,35..THDCB,THSCB,XTR

LT.GRAY,TRIM1#,2#,FRONT-LH,REAR-RH

 2
Common parts
90159-60353
90162-T0001
