KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

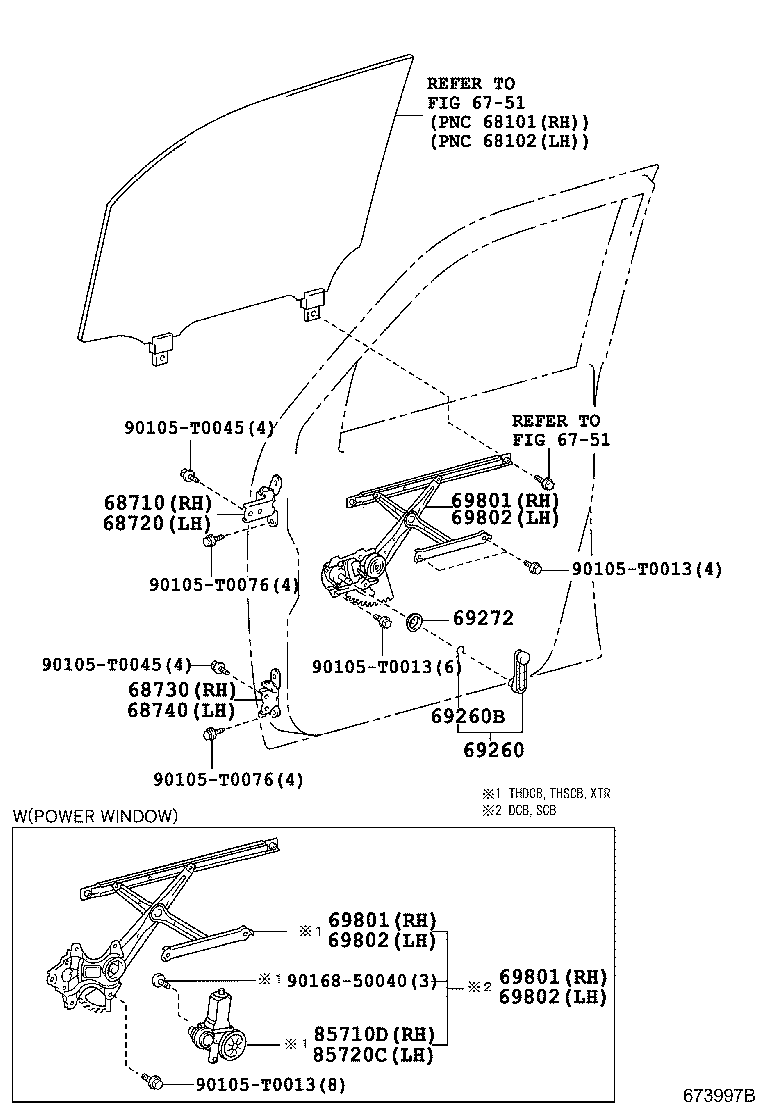

(0507- )

Click highlighted areas on diagram

diagram 6751 6751 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69801 69802 69802 69802 85710D 85720C 90105T0013 90105T0013 90105T0013 90105T0045 90105T0045 90105T0076 90105T0076 9016850040
Part # Description Qty Price
Common parts
90105-T0013
90105-T0045
90105-T0076
90168-50040
Linked diagrams
6751

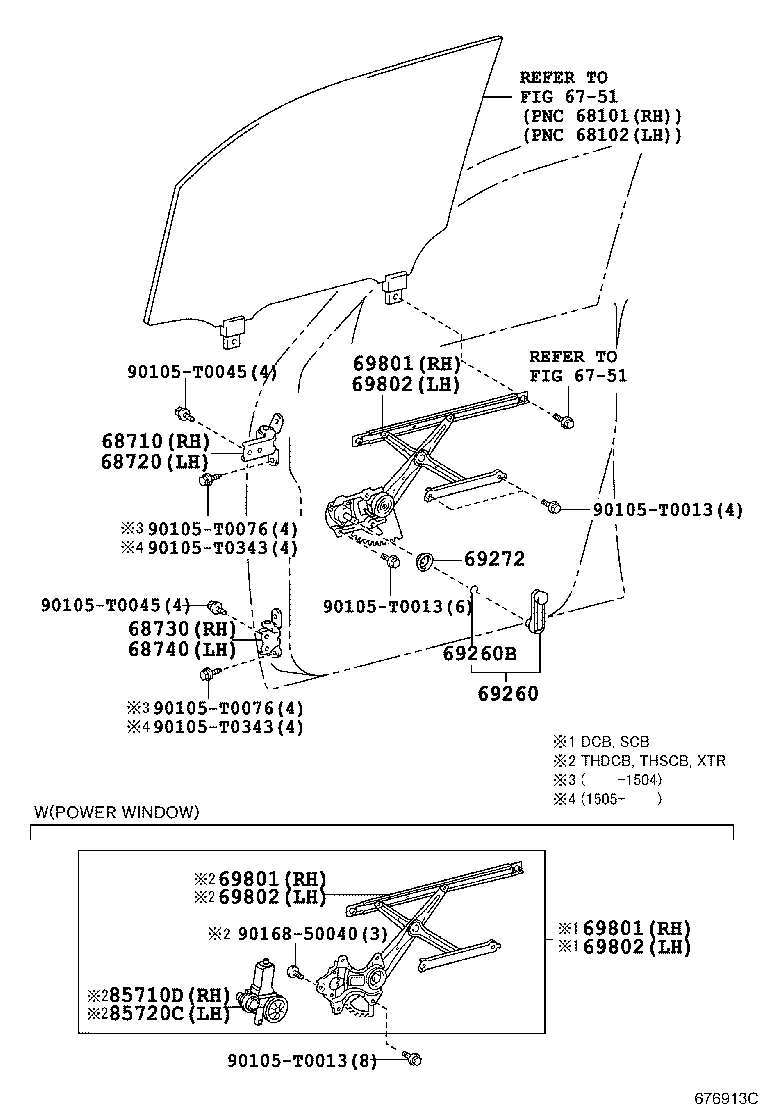

(1107- )

Click highlighted areas on diagram

diagram 6751 6751 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69801 69802 69802 69802 85710D 85720C 90105T0013 90105T0013 90105T0013 90105T0045 90105T0045 90105T0076 90105T0076 90105T0343 90105T0343 9016850040
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-0D030

KUN2#,35..THDCB,THSCB,XTR

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-0D030

KUN2#,35..THDCB,THSCB,XTR

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-52010

KUN2#,35

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-52010

KUN2#,35

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-0K010B1

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

MD.GRAY,TRIM1#

 2
69260-0K010C0

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

BLACK,TRIM2#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

KUN35..DLX;KUN35..SCB..SR;KUN25..LHD..(SCB,THSCB);KUN2#..LHD..(DCB,THDCB,XTR)..DLX

 1
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-04020

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-0K011

KUN25..THSCB..CBU;KUN25,35..LHD..(THDCB,XTR)..DLX

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))

 1
69810-0K011

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

 1
69801-0K011

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

POWER DOOR LOCK-WITH

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-0K011

KUN25..THSCB..CBU;KUN25,35..LHD..(THDCB,XTR)..DLX

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))

 1
69810-0K011

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

 1
69801-0K011

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

POWER DOOR LOCK-WITH

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-0K011

KUN25..THSCB..CBU;KUN25,35..LHD..(THDCB,XTR)..DLX

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))

 1
69810-0K011

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

 1
69801-0K011

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

POWER DOOR LOCK-WITH

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-0K011

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

 1
69802-0K011

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

POWER DOOR LOCK-WITH

 1
69802-0K011

KUN25..THSCB..CBU;KUN25,35..LHD..(THDCB,XTR)..DLX

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-0K011

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

POWER DOOR LOCK-WITH

 1
69820-0K011

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

 1
69802-0K011

KUN25..THSCB..CBU;KUN25,35..LHD..(THDCB,XTR)..DLX

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-0K011

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

POWER DOOR LOCK-WITH

 1
69820-0K011

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

 1
69802-0K011

KUN25..THSCB..CBU;KUN25,35..LHD..(THDCB,XTR)..DLX

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))

 1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-0K010

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

POWER DOOR LOCK-WITH

 1
85710-0K010

KUN25..THSCB..CBU;KUN25,35..LHD..(THDCB,XTR)..DLX

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-0K010

KUN25..THSCB..CBU;KUN25,35..LHD..(THDCB,XTR)..DLX

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))

 1
85720-0K010

KUN25,35..LHD..(THDCB,THSCB,XTR)..DLX

POWER DOOR LOCK-WITH

 1
Common parts
90105-T0013
90105-T0045
90105-T0076
90105-T0343
90168-50040
Linked diagrams
6751
