Toyota Hilux KUN25 FRONT DOOR PANEL & GLASS

Manufacturers Home
Toyota
EU
HILUX
KUN25L-CRMDHH (2011)
6751 - FRONT DOOR PANEL & GLASS

KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0507- )

Click highlighted areas on diagram

DOOR TRIM

Part #	Description	Period	Qty	Price
Common parts
67771-58010
90159-T0013
90164-T0006
90189-T0005
90189-T0011
90467-10161
90467-T0016
90467-T0021
Linked diagrams
6753
7451

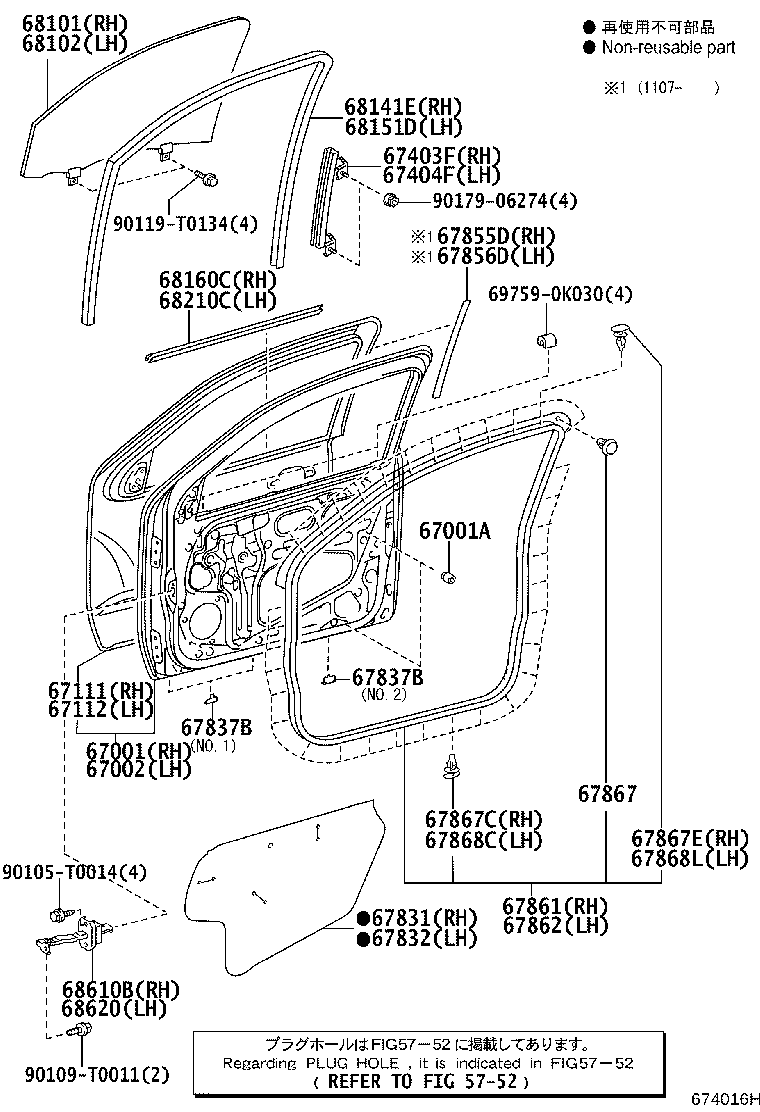

ILLUST NO. 1 OF 2(0507- )SCB,THSCB,XTR

Click highlighted areas on diagram

DOOR PANEL

Part #	Description	Period	Qty	Price
Common parts
69759-0K030
90105-T0014
90109-T0011
90119-T0134
90179-06274
Linked diagrams
5752

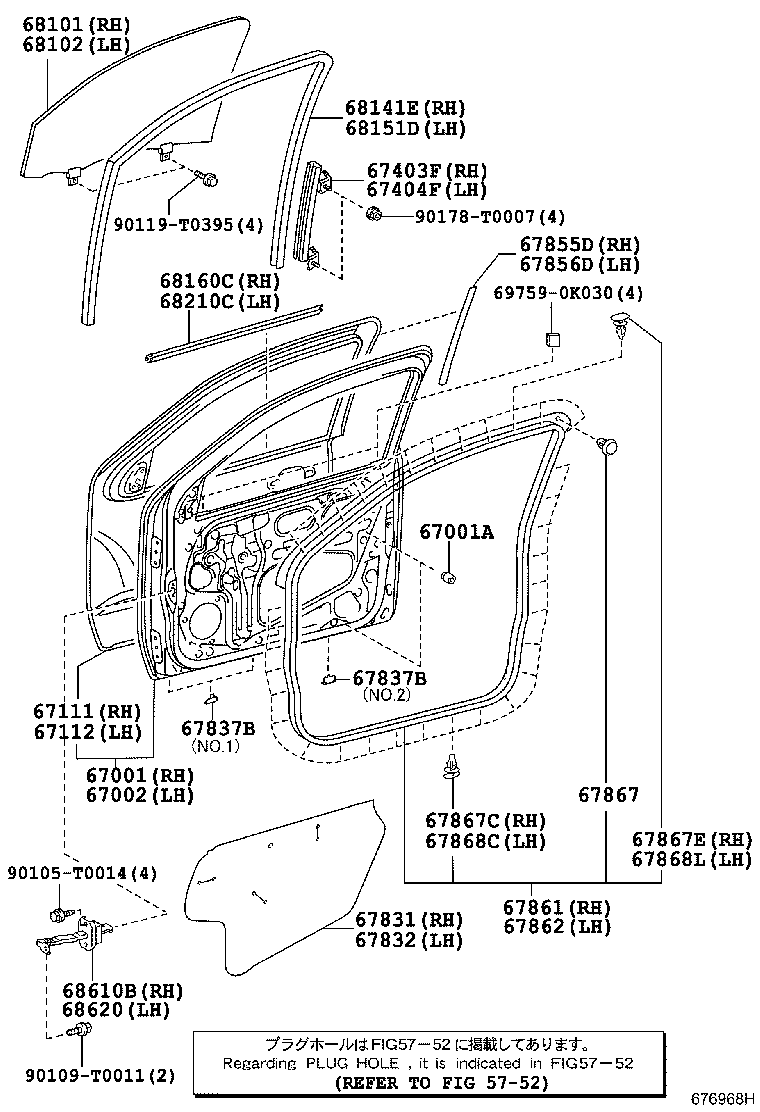

ILLUST NO. 1 OF 2(1107- )SCB,THSCB,XTR

Click highlighted areas on diagram

DOOR PANEL

Part #	Description	Period	Qty
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-0K020	KUN25,35..THSCB,XTR	07/2011 - 04/2015	1
67001A - CUSHION, FRONT DOOR PANEL
90541-09069	KUN2#,35	07/2011 - 12/2015	4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-0K020	KUN25,35..THSCB,XTR	07/2011 - 04/2015	1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-0K020	KUN25,35..SCB,THSCB,XTR	07/2011 - 12/2015	1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-0K020	KUN25,35..SCB,THSCB,XTR	07/2011 - 12/2015	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-0K010	KUN2#,35	07/2011 - 12/2015	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-0K010	KUN2#,35	07/2011 - 12/2015	1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-0K040	KUN25,35..THSCB,XTR	07/2011 - 04/2015	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-0K040	KUN25,35..THSCB,XTR	07/2011 - 04/2015	1
67837B - SEAL, FRONT DOOR DUST PROOF
67837-0K120	KUN25,35..THSCB,XTR NO.1 & NO.2	08/2013 - 01/2014	6
67837-0K030	KUN25,35..THSCB,XTR NO.1:REFER ILLUST.	07/2011 - 07/2013	4
67837-71020	KUN25,35..THSCB,XTR NO.2:REFER ILLUST.	07/2011 - 08/2013	2
67837B - SEAL, FRONT DOOR DUST PROOF
67837-0K120	KUN25,35..THSCB,XTR NO.1 & NO.2	08/2013 - 01/2014	6
67837-0K030	KUN25,35..THSCB,XTR NO.1:REFER ILLUST.	07/2011 - 07/2013	4
67837-71020	KUN25,35..THSCB,XTR NO.2:REFER ILLUST.	07/2011 - 08/2013	2
67855D - PROTECTOR, FRONT DOOR PANEL, RH
67855-0K050	KUN25,35..SCB,THSCB,XTR	07/2011 - 12/2015	1
67856D - PROTECTOR, FRONT DOOR PANEL, LH
67856-0K010	KUN25,35..SCB,THSCB,XTR	07/2011 - 12/2015	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-0K023	KUN25,35..SCB,THSCB,XTR	07/2011 - 12/2015	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-0K023	KUN25,35..SCB,THSCB,XTR	07/2011 - 12/2015	1
67867 - CLIP, DOOR WEATHERSTRIP
90467-06084	KUN2#,35..DCB,THDCB,THSCB,XTR	07/2011 - 07/2015	2
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150	KUN25,35..THSCB,XTR	07/2011 - 12/2015	22
67867E - RETAINER, FRONT DOOR LOWER PROTECTOR, RH
67867-52020	KUN25,35..SCB,THSCB,XTR	07/2011 - 06/2015	12
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150	KUN25,35..THSCB,XTR	07/2011 - 12/2015	22
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-52030	KUN25,35..SCB,THSCB,XTR	07/2011 - 06/2015	12
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-0K120	KUN25,35..THSCB,XTR *TEM,T=3.5,GREEN	07/2011 - 08/2011	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-0K120	KUN25,35..THSCB,XTR *TEM,T=3.5,GREEN	07/2011 - 09/2011	1
68141E - RUN, FRONT DOOR GLASS, RH
68141-0K020	KUN25,35..SCB,THSCB,XTR	07/2011 - 12/2015	1
68151D - RUN, FRONT DOOR GLASS, LH
68151-0K020	KUN25,35..SCB,THSCB,XTR	07/2011 - 12/2015	1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68161-0K020	KUN25,35..SCB,THSCB,XTR	07/2011 - 12/2015	1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68162-0K020	KUN25,35..SCB,THSCB,XTR	07/2011 - 12/2015	1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-0K012	KUN2#,35..THDCB,THSCB,XTR	05/2014 - 04/2015	1
68610-0K010	KUN2#,35..THDCB,THSCB,XTR	07/2011 - 12/2012	1
68610-0K011	KUN2#,35..THDCB,THSCB,XTR	12/2012 - 05/2014	1
68620 - CHECK ASSY, FRONT DOOR, LH
68610-0K011	KUN2#,35..THDCB,THSCB,XTR	12/2012 - 05/2014	1
68610-0K012	KUN2#,35..THDCB,THSCB,XTR	05/2014 - 04/2015	1
68620-0K010	KUN2#,35..THDCB,THSCB,XTR	07/2011 - 12/2012	1
Common parts
69759-0K030
90105-T0014
90109-T0011
90119-T0395
90178-T0007

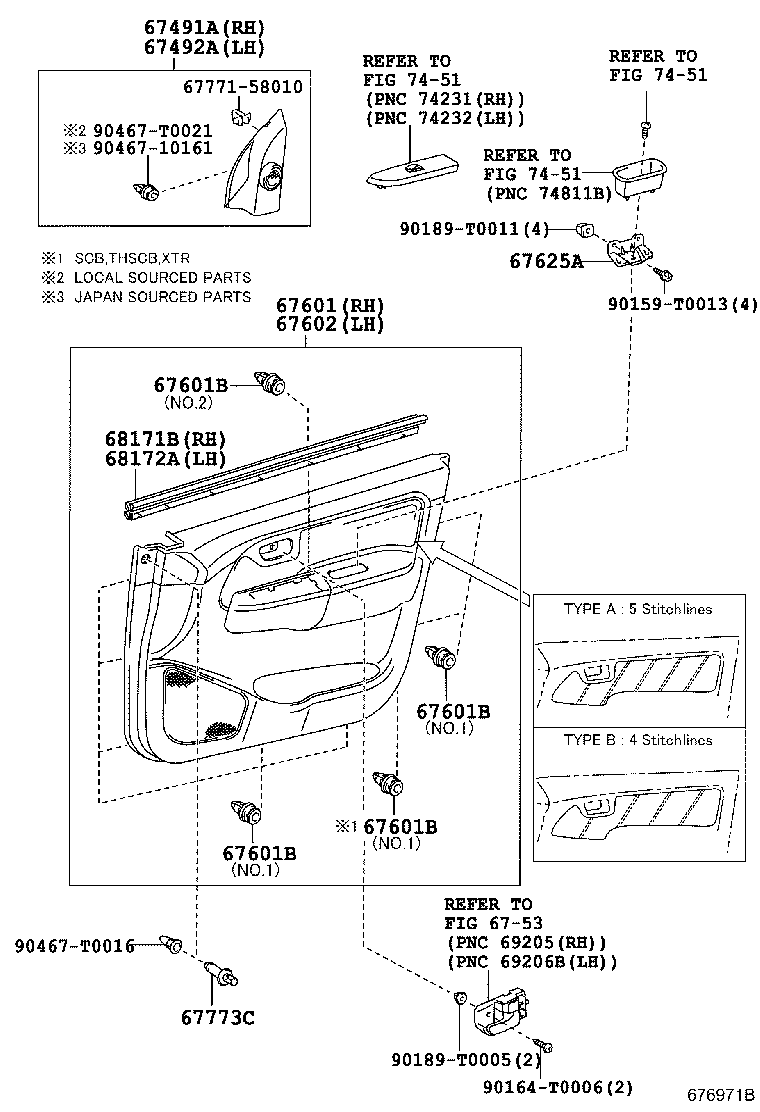

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

DOOR TRIM

Part #	Description	Period	Qty
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-0K010C0	KUN25..(THDCB,XTR)..SR..EUR;KUN25,35..(THDCB,THSCB,XTR)..DLX BLACK,TRIM1#,2#	07/2011 - 04/2015	1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-0K010C0	KUN25..(THDCB,XTR)..SR..EUR;KUN25,35..(THDCB,THSCB,XTR)..DLX BLACK,TRIM1#,2#	07/2011 - 04/2015	1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-0K630B1	KUN25,35..LHD..(THSCB,XTR)..DLX POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),MD.GRAY,TRIM1#	08/2012 - 08/2014	1
67610-0K630B1	KUN25,35..LHD..(THSCB,XTR)..DLX POWER DOOR LOCK-WITH,MD.GRAY,TRIM1#	07/2011 - 08/2012	1
67610-0K070B3	KUN25,35..LHD..(THSCB,XTR)..DLX MD.GRAY,TRIM1#	07/2011 - 04/2015	1
67610-0K070C0	KUN25,35..LHD..(THSCB,XTR)..DLX BLACK,TRIM2#	08/2013 - 04/2015	1
67610-0K630C0	KUN25..THSCB..CBU;KUN25,35..LHD..XTR..DLX POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),BLACK,TRIM2#	08/2013 - 04/2015	1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09203	KUN2#,35 NO.2:REFER ILLUST.	07/2011 - 12/2015	4
90467-T0019	KUN25,35..SCB,THSCB,XTR NO.1:REFER ILLUST.	07/2011 - 12/2015	16
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09203	KUN2#,35 NO.2:REFER ILLUST.	07/2011 - 12/2015	4
90467-T0019	KUN25,35..SCB,THSCB,XTR NO.1:REFER ILLUST.	07/2011 - 12/2015	16
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09203	KUN2#,35 NO.2:REFER ILLUST.	07/2011 - 12/2015	4
90467-T0019	KUN25,35..SCB,THSCB,XTR NO.1:REFER ILLUST.	07/2011 - 12/2015	16
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09203	KUN2#,35 NO.2:REFER ILLUST.	07/2011 - 12/2015	4
90467-T0019	KUN25,35..SCB,THSCB,XTR NO.1:REFER ILLUST.	07/2011 - 12/2015	16
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-0K630B1	KUN25,35..LHD..(THSCB,XTR)..DLX POWER DOOR LOCK-WITH,MD.GRAY,TRIM1#	07/2011 - 08/2012	1
67620-0K070B3	KUN25,35..LHD..(THSCB,XTR)..DLX MD.GRAY,TRIM1#	07/2011 - 04/2015	1
67620-0K070C0	KUN25,35..LHD..(THSCB,XTR)..DLX BLACK,TRIM2#	08/2013 - 04/2015	1
67620-0K630B1	KUN25,35..LHD..(THSCB,XTR)..DLX POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),MD.GRAY,TRIM1#	08/2012 - 08/2014	1
67620-0K630C0	KUN25..THSCB..CBU;KUN25,35..LHD..XTR..DLX POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),BLACK,TRIM2#	08/2013 - 04/2015	1
67625A - BRACKET, FRONT DOOR TRIM, NO.1
67625-0K010	KUN2#,35..THDCB,THSCB,XTR	07/2011 - 04/2015	2
67773C - CLIP, DOOR TRIM UPPER RETAINER, NO.1
90467-T0027B3	KUN2#,35 MD.GRAY,TRIM1#	07/2011 - 12/2015	2
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-0K020	KUN25,35..SCB,THSCB,XTR	07/2011 - 12/2015	1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-0K020	KUN25,35..SCB,THSCB,XTR	07/2011 - 12/2015	1
Common parts
67771-58010
90159-T0013
90164-T0006
90189-T0005
90189-T0011
90467-10161
90467-T0016
90467-T0021
Linked diagrams
6753
7451
