KUN25L-CRMDHH (2011)
Toyota Hilux
ILLUST NO. 1 OF 2(1107- )CBU
HEADER BOARD & GUARD FRAME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58227H - COVER, HEADER PANEL, NO.1 | ||||
| 58227-0K030 |
KUN2#,35..CBU |
2 | ||
| 58227H - COVER, HEADER PANEL, NO.1 | ||||
| 58227-0K030 |
KUN2#,35..CBU |
2 | ||
| 58227H - COVER, HEADER PANEL, NO.1 | ||||
| 58227-0K030 |
KUN2#,35..CBU |
2 | ||
| 65470 - BOARD ASSY, HEADER | ||||
| 65470-0K010 |
KUN26..LHD..SR;KUN25,35..LHD..CBU;KUN26..LHD..5FC..DLX;KUN2#..RHD..(DCB,XTR) |
1 | ||
| 65470 - BOARD ASSY, HEADER | ||||
| 65470-0K010 |
KUN26..LHD..SR;KUN25,35..LHD..CBU;KUN26..LHD..5FC..DLX;KUN2#..RHD..(DCB,XTR) |
1 | ||
| Common parts | ||||
| 90109-06022 | ||||
| 90119-T0118 | ||||
| 90269-06017 | ||||
| 94185-60600 | ||||
ILLUST NO. 2 OF 2(1107- )CBU
TAIL GATE(LOCK TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-0K120 |
KUN2#..LHD..DCB..DLX..CBU;KUN25..(THDCB,XTR)..DLX..CBU;KUN2#..(DCB,THDCB,XTR)..SR..EUR;KUN35..(DCB,THDCB,XTR)..DLX..CBU |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-0K120 |
KUN2#..LHD..DCB..DLX..CBU;KUN25..(THDCB,XTR)..DLX..CBU;KUN2#..(DCB,THDCB,XTR)..SR..EUR;KUN35..(DCB,THDCB,XTR)..DLX..CBU |
1 | ||
| 65717A - PROTECTOR, TAIL GATE, RH | ||||
| 65717-0K010 |
KUN2#,35..(DCB,THDCB,XTR)..CBU |
1 | ||
| 65737 - STOP, TAIL GATE | ||||
| 65737-0K010 |
KUN2#,35..(DCB,THDCB,XTR)..CBU |
2 | ||
| 65738A - STOPPER, TAIL GATE LOCK HINGE, NO.1 | ||||
| 65738-0K010 |
KUN2#,35..(DCB,THDCB,XTR)..CBU |
2 | ||
| 65747A - PLATE, TAIL GATE SEAL, RH | ||||
| 65747-0K010 |
KUN2#,35..CBU |
1 | ||
| 65748A - PLATE, TAIL GATE SEAL, LH | ||||
| 65747-0K010 |
KUN2#,35..CBU |
1 | ||
| 65759 - COVER, TAIL GATE SERVICE HOLE | ||||
| 65759-0K060 |
KUN2#,35..(DCB,THDCB,XTR)..CBU |
1 | ||
| 65760 - CONTROL ASSY,TAIL GATE LOCK | ||||
| 65760-0K010 |
KUN2#,35..(DCB,THDCB,XTR)..CBU |
1 | ||
| 65768A - STRIKER, TAIL GATE LOCK | ||||
| 65768-0K010 |
KUN2#,35..(DCB,THDCB,XTR)..CBU |
2 | ||
| 65768A - STRIKER, TAIL GATE LOCK | ||||
| 65768-0K010 |
KUN2#,35..(DCB,THDCB,XTR)..CBU |
2 | ||
| 65770A - STAY ASSY, TAIL GATE | ||||
| 65770-0K010 |
KUN2#,35..CBU |
2 | ||
| 65770A - STAY ASSY, TAIL GATE | ||||
| 65770-0K010 |
KUN2#,35..CBU |
2 | ||
| 65778 - STOPPER, TAIL GATE STAY | ||||
| 65778-0K010 |
KUN2#,35..CBU |
2 | ||
| 65778 - STOPPER, TAIL GATE STAY | ||||
| 65778-0K010 |
KUN2#,35..CBU |
2 | ||
| 65780A - LOCK ASSY, TAIL GATE, RH | ||||
| 65780-0K020 |
KUN2#,35..(DCB,THDCB,XTR)..CBU |
1 | ||
| 65790A - LOCK ASSY, TAIL GATE, LH | ||||
| 65790-0K020 |
KUN2#,35..(DCB,THDCB,XTR)..CBU |
1 | ||
| 65797A - LINK, TAIL GATE LOCK CONTROL | ||||
| 65797-0K030 |
KUN2#,35..(DCB,THDCB,XTR)..CBU |
1 | ||
| 65797B - LINK, TAIL GATE LOCK CONTROL | ||||
| 65797-0K040 |
KUN2#,35..(DCB,THDCB,XTR)..CBU |
1 | ||
| 66110F - HINGE ASSY, TAIL GATE, RH | ||||
| 66110-0K011 |
KUN2#,35..CBU |
1 | ||
| 66120F - HINGE ASSY, TAIL GATE, LH | ||||
| 66120-0K011 |
KUN2#,35..CBU |
1 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN2#,35..CBU |
4 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN2#,35..CBU |
4 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN2#,35..CBU |
4 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN2#,35..CBU |
4 | ||
| 69090B - HANDLE ASSY, TAIL GATE | ||||
| 69090-0K040 |
KUN2#,35..(DCB,THDCB,XTR)..DLX..CBU |
1 | ||
| 69730E - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.1 | ||||
| 69730-0K100 |
KUN2#,35..(DCB,THDCB,XTR)..CBU |
1 | ||
| 69730F - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.2 | ||||
| 69730-0K110 |
KUN2#,35..(DCB,THDCB,XTR)..CBU |
1 | ||
| Common parts | ||||
| 65743-0K010 | ||||
| 90119-T0178 | ||||
| 90119-T0180 | ||||
| 90119-T0253 | ||||
| 90119-T0345 | ||||
| 90149-80020 | ||||
| 90157-T0001 | ||||
| 90159-60535 | ||||
| 90159-T0024 | ||||
| 90178-T0018 | ||||
| 90189-T0009 | ||||
| 90389-10042 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8202 | ||||

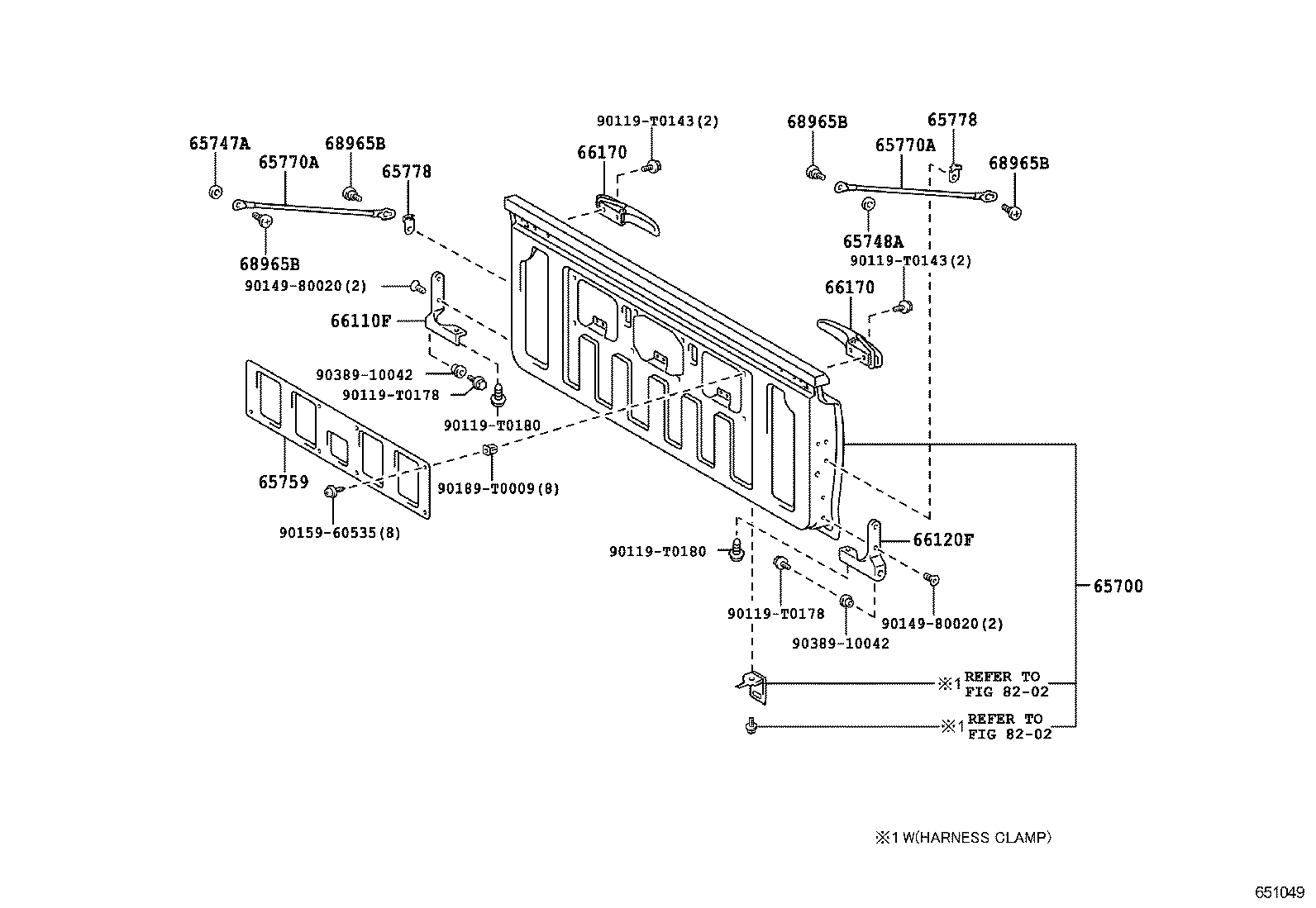

ILLUST NO. 2 OF 2(1107- )CBU
TAIL GATE(LATCH TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-0K120 |
KUN2#..LHD..DCB..DLX..CBU;KUN25..(THDCB,XTR)..DLX..CBU;KUN2#..(DCB,THDCB,XTR)..SR..EUR;KUN35..(DCB,THDCB,XTR)..DLX..CBU |
1 | ||
| 65747A - PLATE, TAIL GATE SEAL, RH | ||||
| 65747-0K010 |
KUN2#,35..CBU |
1 | ||
| 65748A - PLATE, TAIL GATE SEAL, LH | ||||
| 65747-0K010 |
KUN2#,35..CBU |
1 | ||
| 65759 - COVER, TAIL GATE SERVICE HOLE | ||||
| 65759-0K060 |
KUN2#,35..(DCB,THDCB,XTR)..CBU |
1 | ||
| 65770A - STAY ASSY, TAIL GATE | ||||
| 65770-0K010 |
KUN2#,35..CBU |
2 | ||
| 65770A - STAY ASSY, TAIL GATE | ||||
| 65770-0K010 |
KUN2#,35..CBU |
2 | ||
| 65778 - STOPPER, TAIL GATE STAY | ||||
| 65778-0K010 |
KUN2#,35..CBU |
2 | ||
| 65778 - STOPPER, TAIL GATE STAY | ||||
| 65778-0K010 |
KUN2#,35..CBU |
2 | ||
| 66110F - HINGE ASSY, TAIL GATE, RH | ||||
| 66110-0K011 |
KUN2#,35..CBU |
1 | ||
| 66120F - HINGE ASSY, TAIL GATE, LH | ||||
| 66120-0K011 |
KUN2#,35..CBU |
1 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN2#,35..CBU |
4 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN2#,35..CBU |
4 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN2#,35..CBU |
4 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN2#,35..CBU |
4 | ||
| Common parts | ||||
| 90119-T0143 | ||||
| 90119-T0178 | ||||
| 90119-T0180 | ||||
| 90149-80020 | ||||
| 90159-60535 | ||||
| 90189-T0009 | ||||
| 90389-10042 | ||||
| Linked diagrams | ||||
| 8202 | ||||
