KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

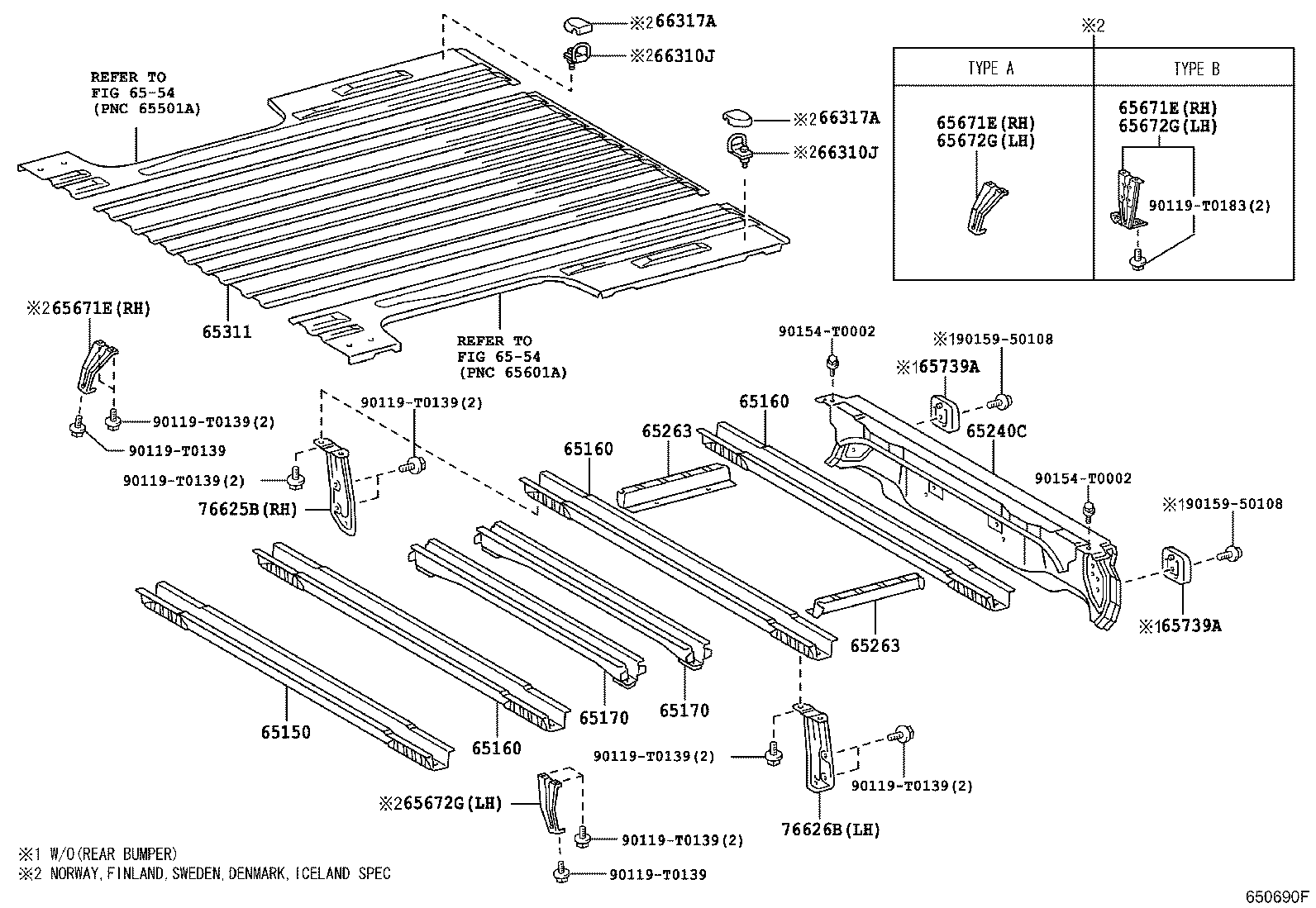

(0507- )XTR..CBU

Click highlighted areas on diagram

diagram 65150 65160 65160 65160 65170 65170 65240C 65263 65263 65311 6554 6554 65671E 65671E 65671E 65672G 65672G 65672G 65739A 65739A 66310J 66310J 66317A 66317A 76625B 76626B 90119T0139 90119T0139 90119T0139 90119T0139 90119T0139 90119T0139 90119T0139 90119T0139 90119T0183 90154T0002 90154T0002 9015950108 9015950108
Part # Description Qty Price
Common parts
90119-T0139
90119-T0183
90154-T0002
90159-50108
Linked diagrams
6554

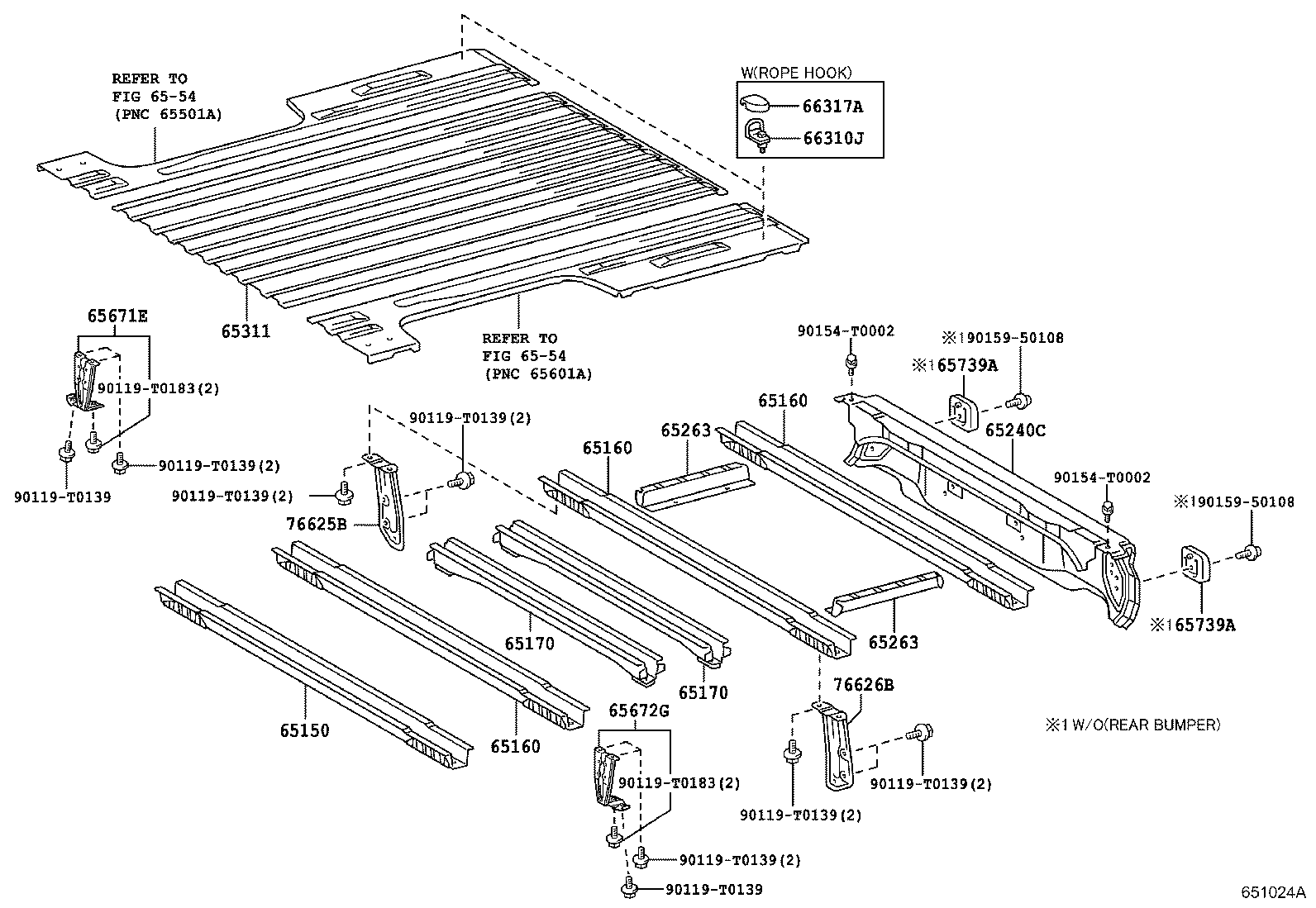

(1107- )XTR..CBU

Click highlighted areas on diagram

diagram 65150 65160 65160 65160 65170 65170 65240C 65263 65263 65311 6554 6554 65671E 65672G 65739A 65739A 66310J 66317A 76625B 76626B 90119T0139 90119T0139 90119T0139 90119T0139 90119T0139 90119T0139 90119T0139 90119T0139 90119T0183 90119T0183 90154T0002 90154T0002 9015950108 9015950108
Part # Description Qty Price
65150 - SILL ASSY, CROSS, NO.1
65151-0K010

KUN25..(SCB,XTR)..SR;KUN35..(THSCB,XTR)..CBU;KUN25..(THSCB,XTR)..DLX..CBU

 1
65160 - SILL ASSY, CROSS, NO.2
65160-0K010

KUN25,35..XTR..CBU

 3
65160 - SILL ASSY, CROSS, NO.2
65160-0K010

KUN25,35..XTR..CBU

 3
65160 - SILL ASSY, CROSS, NO.2
65160-0K010

KUN25,35..XTR..CBU

 3
65170 - SILL ASSY, CROSS, NO.2
65170-0K010

KUN2#..(SCB,THDCB,XTR)..SR;KUN35..(THDCB,THSCB,XTR)..CBU;KUN25..(THDCB,THSCB,XTR)..DLX..CBU

 2
65170 - SILL ASSY, CROSS, NO.2
65170-0K010

KUN2#..(SCB,THDCB,XTR)..SR;KUN35..(THDCB,THSCB,XTR)..CBU;KUN25..(THDCB,THSCB,XTR)..DLX..CBU

 2
65240C - SILL ASSY, CROSS, NO.9
65240-0K020

KUN35..(SCB,THSCB)..CBU;KUN2#..LHD..DCB..DLX..CBU;KUN2#..(DCB,THDCB,XTR)..SR;KUN35..(DCB,THDCB,XTR)..DLX..CBU;KUN25..(SCB,THDCB,THSCB,XTR)..DLX..CBU

 1
65263 - REINFORCEMENT, FLOOR SIDE FRAME
65263-0K010

KUN2#,35..CBU

 2
65263 - REINFORCEMENT, FLOOR SIDE FRAME
65263-0K010

KUN2#,35..CBU

 2
65311 - PANEL, FLOOR, CENTER
65311-0K030

KUN25,35..XTR..CBU

 1
65671E - BRACE, SIDE PANEL SKIRT, FRONT RH
65608-0K020

KUN25,35..(SCB,THSCB,XTR)..CBU

 1
65672G - BRACE, SIDE PANEL SKIRT, FRONT LH
65609-0K020

KUN25,35..(SCB,THSCB,XTR)..CBU

 1
66310J - HOOK ASSY, ROPE
66310-0K010

KUN25..FLD

 6
66317A - COVER, ROPE HOOK
66317-0K010

KUN25..FLD

 6
76625B - MUDGUARD, REAR BODY, RH
76607-0K040

KUN2#,35..CBU

 1
76626B - MUDGUARD, REAR BODY, LH
76608-0K040

KUN2#,35..CBU

 1
Common parts
90119-T0139
90119-T0183
90154-T0002
90159-50108
Linked diagrams
6554
