KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )

Click highlighted areas on diagram

diagram 55225A 58151 58151 58151 58327B 58327B 90182T0013 90182T0013 90182T0013 90182T0013 90182T0013 90182T0013
Part # Description Qty Price
Common parts
90182-T0013

(1107- )SCB,THSCB,XTR

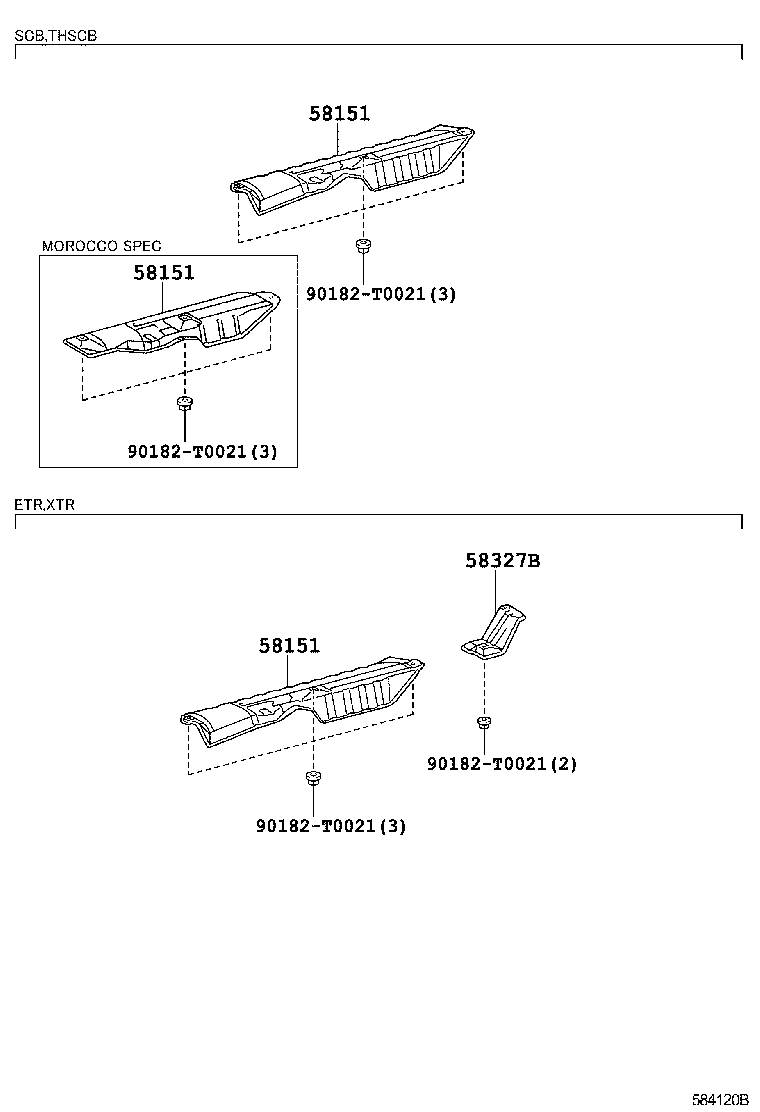

Click highlighted areas on diagram

diagram 58151 58151 58151 58327B 90182T0021 90182T0021 90182T0021 90182T0021
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-0K020

KUN2#,35

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-0K020

KUN2#,35

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-0K020

KUN2#,35

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-0K020

KUN25,35..XTR

 1
58327-0K021

KUN25,35..XTR

 1
Common parts
90182-T0021
