KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

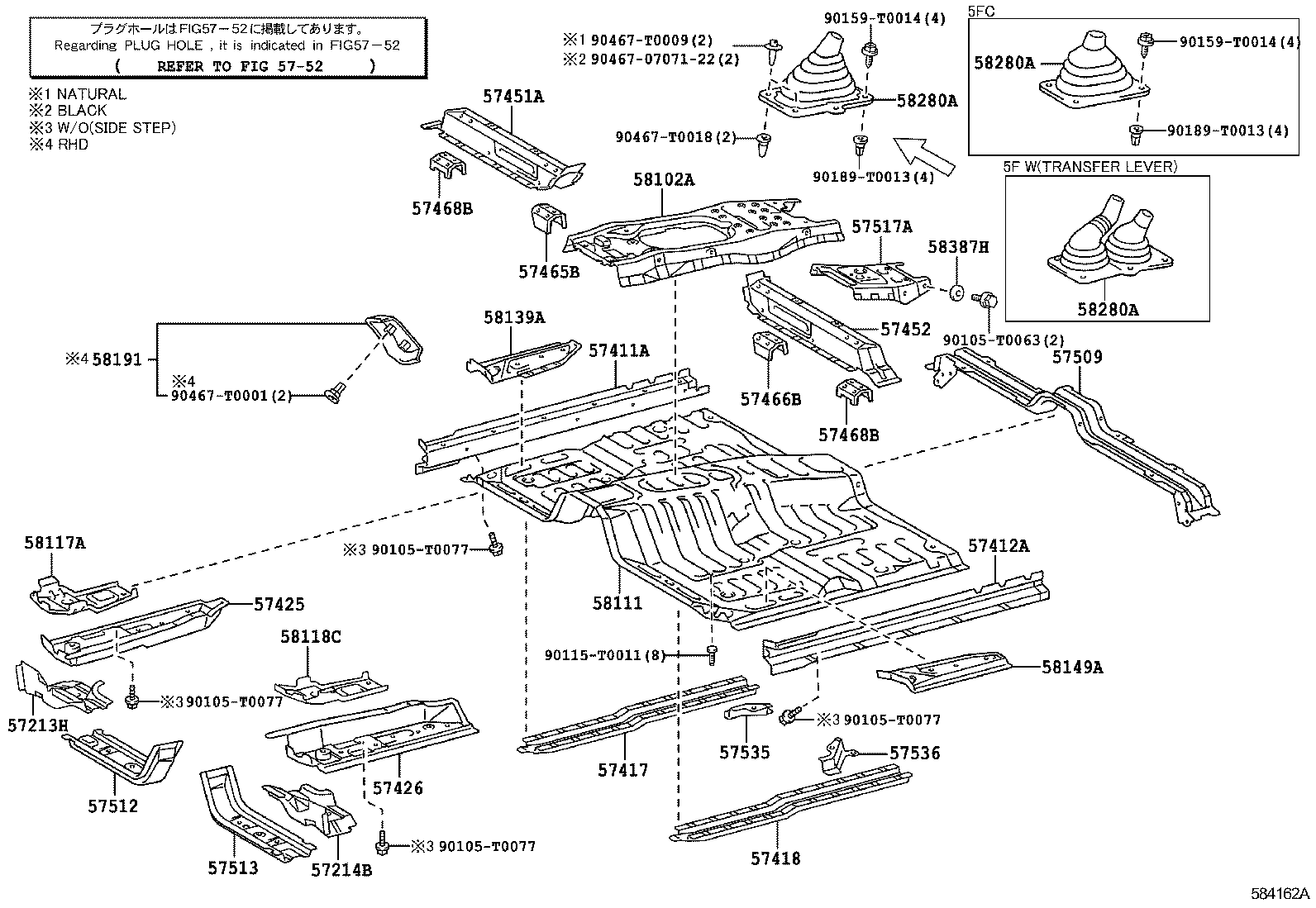

ILLUST NO. 1 OF 3(0507- )5F

Click highlighted areas on diagram

diagram 57213H 57214B 57411A 57412A 57417 57418 57425 57426 57451A 57452 57465B 57466B 57468B 57468B 57509 57512 57513 57517A 5752 57535 57536 58102A 58111 58117A 58118C 58139A 58149A 58191 58280A 58280A 58387H 90105T0063 90115T0011 90159T0014 90189T0013 904670707122 90467T0001 90467T0009 90467T0018
Part # Description Qty Price
Common parts
90105-T0063
90115-T0011
90159-T0014
90189-T0013
90467-0707122
90467-T0001
90467-T0009
90467-T0018
Linked diagrams
5752

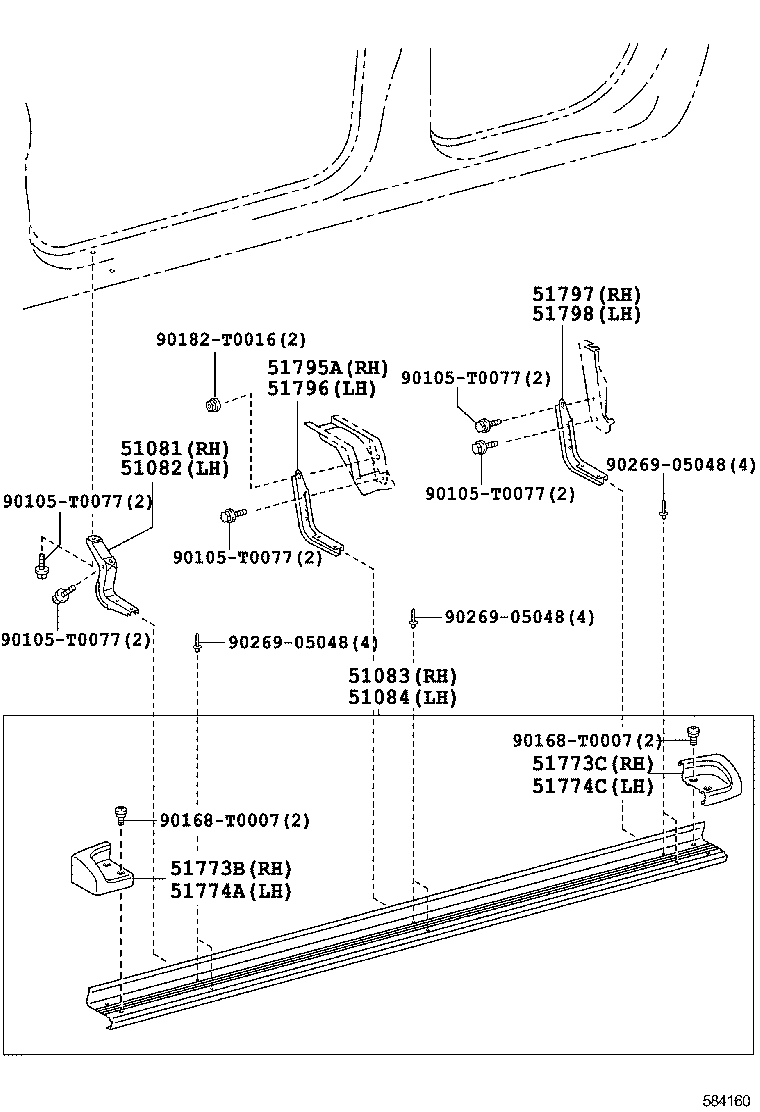

ILLUST NO. 2 OF 2(1107- )DCB,THDCB,XTR

Click highlighted areas on diagram

SIDE STEP

diagram 51081 51082 51083 51084 51773B 51773C 51774A 51774C 51795A 51796 51797 51798 90105T0077 90105T0077 90105T0077 90105T0077 90105T0077 90168T0007 90168T0007 90182T0016 9026905048 9026905048 9026905048
Part # Description Qty Price
51081 - STAY SUB-ASSY, SIDE STEP, NO.1 RH
51081-0K010

KUN25..RHD..XTR;KUN25..DLX..FLD

STEP & STEP COVER-WITH

 1
51082 - STAY SUB-ASSY, SIDE STEP, NO.1 LH
51082-0K010

KUN25..RHD..XTR;KUN25..DLX..FLD

STEP & STEP COVER-WITH

 1
51083 - STEP SUB-ASSY, RH
51083-0K140

KUN25..RHD..XTR;KUN25..DLX..FLD

STEP & STEP COVER-WITH

 1
51084 - STEP SUB-ASSY, LH
51084-0K140

KUN25..RHD..XTR;KUN25..DLX..FLD

STEP & STEP COVER-WITH

 1
51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH
51773-0K010

KUN25..RHD..XTR;KUN25..DLX..FLD

STEP & STEP COVER-WITH

 1
51773C - COVER, STEP PLATE, RH
51779-0K050

KUN25..RHD..XTR;KUN25..DLX..FLD

NO PAINT REQ.,STEP & STEP COVER-WITH

 1
51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH
51774-0K010

KUN25..RHD..XTR;KUN25..DLX..FLD

STEP & STEP COVER-WITH

 1
51774C - COVER, STEP PLATE, LH
51759-0K050

KUN25..RHD..XTR;KUN25..DLX..FLD

NO PAINT REQ.,STEP & STEP COVER-WITH

 1
51795A - BRACKET, SIDE STEP, NO.2 RH
51795-0K010

KUN25..RHD..XTR;KUN25..DLX..FLD

STEP & STEP COVER-WITH

 1
51796 - BRACKET, SIDE STEP, NO.2 LH
51796-0K010

KUN25..RHD..XTR;KUN25..DLX..FLD

STEP & STEP COVER-WITH

 1
51797 - BRACKET, SIDE STEP, NO.3 RH
51797-0K010

KUN25..RHD..XTR;KUN25..DLX..FLD

STEP & STEP COVER-WITH

 1
51798 - BRACKET, SIDE STEP, NO.3 LH
51798-0K010

KUN25..RHD..XTR;KUN25..DLX..FLD

STEP & STEP COVER-WITH

 1
Common parts
90105-T0077
90168-T0007
90182-T0016
90269-05048

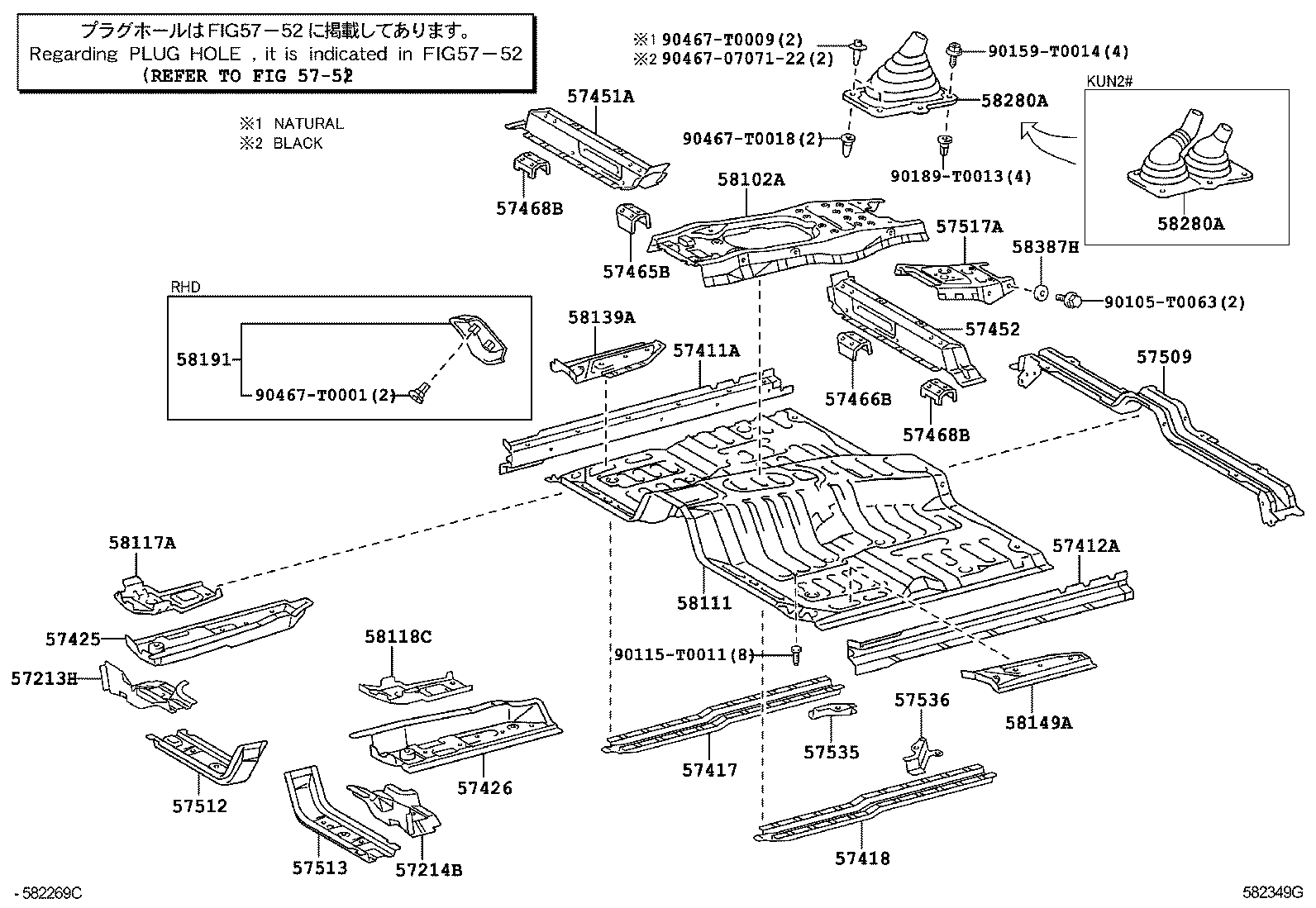

ILLUST NO. 1 OF 3(1107- )

Click highlighted areas on diagram

FLOOR PANEL

diagram 57213H 57214B 57411A 57412A 57417 57418 57425 57426 57451A 57452 57465B 57466B 57468B 57468B 57509 57512 57513 57517A 5752 57535 57536 58102A 58111 58117A 58118C 58139A 58149A 58191 58280A 58280A 58280A 58387H 90105T0063 90105T0077 90105T0077 90105T0077 90105T0077 90115T0011 90159T0014 90159T0014 90189T0013 90189T0013 904670707122 90467T0001 90467T0009 90467T0018
Part # Description Qty Price
57213H - BRACKET, BODY MOUNTING, NO.2 RH
57213-0K010

KUN2#,35

 1
57214B - BRACKET, BODY MOUNTING, NO.2 LH
57214-0K010

KUN2#,35

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57411-0K010

KUN2#,35

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57412-0K010

KUN2#,35

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-0K010

KUN2#,35

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-0K010

KUN2#,35

 1
57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH
57425-0K010

KUN2#,35

 1
57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH
57426-0K010

KUN2#,35

 1
57451A - MEMBER, FRONT FLOOR CROSS, RH
57451-0K010

KUN2#,35

 1
57452 - MEMBER, FRONT FLOOR CROSS, LH
57452-0K020

KUN2#,35

 1
57465B - BRACKET, FRONT SEAT, INNER
57465-0K010

KUN2#,35

 1
57466B - BRACKET, FRONT SEAT, INSIDE LH
57466-0K010

KUN2#,35

 1
57468B - BRACKET, FRONT SEAT, REAR
57468-0K010

KUN2#,35

 2
57468B - BRACKET, FRONT SEAT, REAR
57468-0K010

KUN2#,35

 2
57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57509-0K010

KUN2#,35

 1
57512 - REINFORCEMENT, FRONT FLOOR, RH
57512-0K010

KUN2#,35

 1
57513 - REINFORCEMENT, FRONT FLOOR, LH
57513-0K010

KUN2#,35

 1
57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR
57516-0K020

KUN2#,35..LHD..5F

 1
57535 - BRACE, FRONT FLOOR, RH
57535-0K010

KUN2#,35

 1
57536 - BRACE, FRONT FLOOR, LH
57536-0K010

KUN2#,35

 1
58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR
58102-0K020

KUN2#,35..5F

 1
58111 - PAN, FRONT FLOOR
58111-0K040

KUN2#..5F

 1
58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH
58117-0K010

KUN2#,35

 1
58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH
58118-0K010

KUN2#,35

 1
58139A - PLATE, FRONT FLOOR SIDE, REAR RH
58139-0K010

KUN2#,35

 1
58149A - PLATE, FRONT FLOOR SIDE, REAR LH
58149-0K010

KUN2#,35

 1
58280A - BOOT ASSY, SHIFT LEVER
58280-0K210

KUN2#..LHD..5F

 1
58280A - BOOT ASSY, SHIFT LEVER
58280-0K210

KUN2#..LHD..5F

 1
58280A - BOOT ASSY, SHIFT LEVER
58280-0K210

KUN2#..LHD..5F

 1
Common parts
90105-T0063
90105-T0077
90115-T0011
90159-T0014
90189-T0013
90467-0707122
90467-T0001
90467-T0009
90467-T0018
Linked diagrams
5752
