KUN25L-CRMDHH (2011)
Toyota Hilux
ILLUST NO. 2 OF 2(0507- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90161-T0002 | ||||
| 90167-T0007 | ||||
| 90167-T0022 | ||||
| 90467-10203 | ||||
| 90467-T0015 | ||||
| 90541-04002 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8715 | ||||

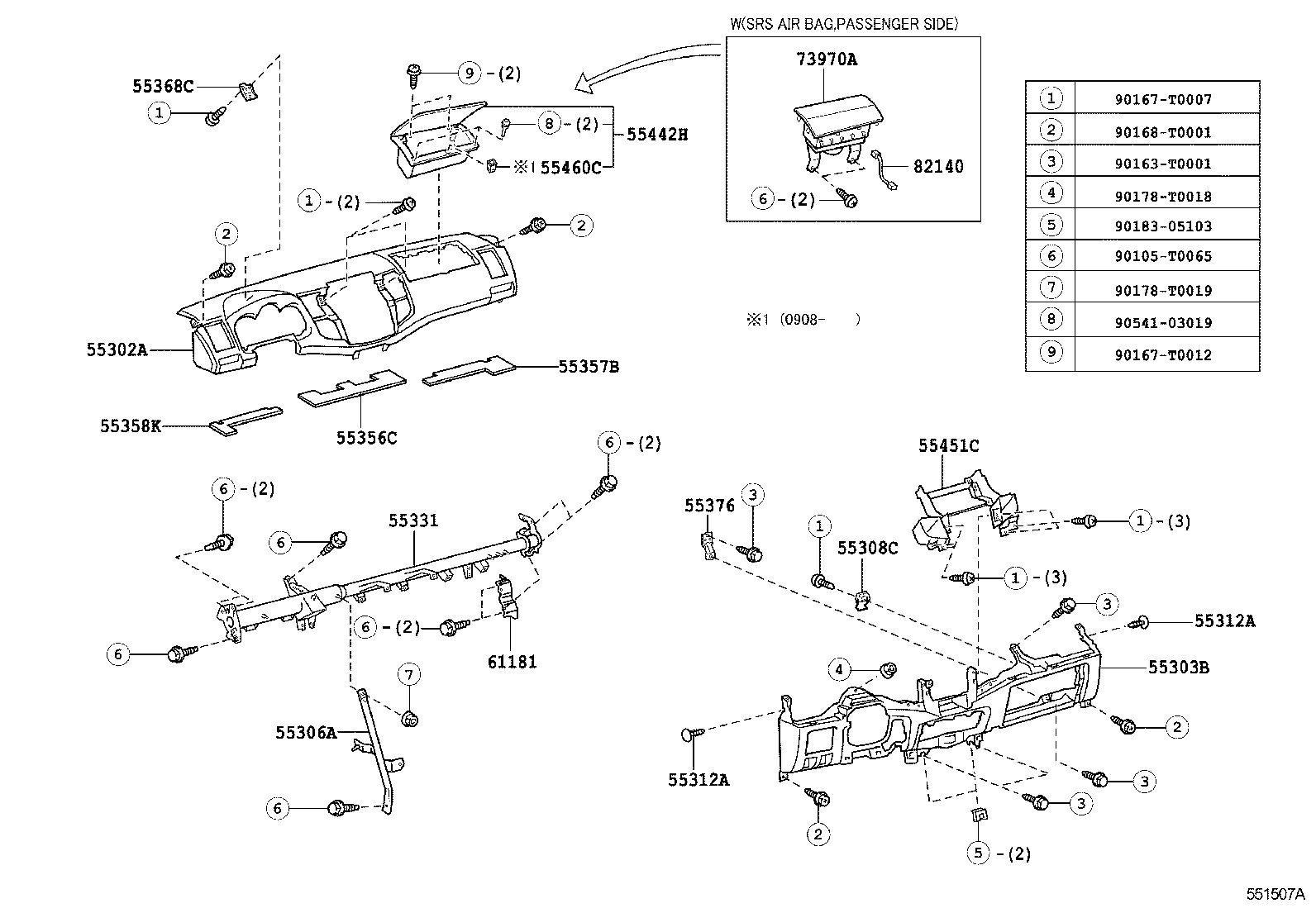

ILLUST NO. 1 OF 2(0507- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0065 | ||||
| 90163-T0001 | ||||
| 90167-T0007 | ||||
| 90167-T0012 | ||||
| 90168-T0001 | ||||
| 90178-T0018 | ||||
| 90178-T0019 | ||||
| 90183-05103 | ||||
| 90541-03019 | ||||

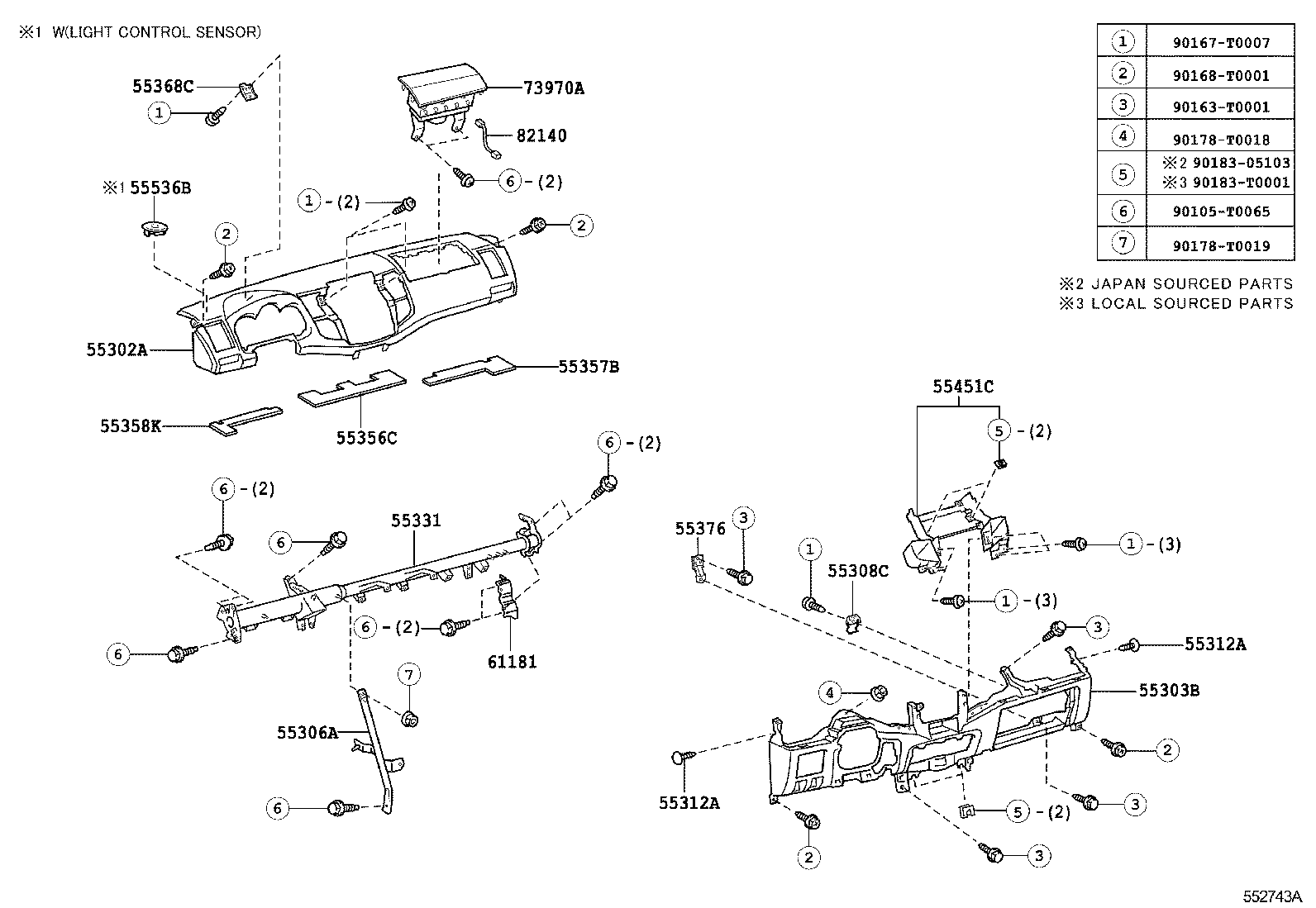

ILLUST NO. 1 OF 2(1107- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-0K020B0 |
KUN25,35..LHD..(THDCB,THSCB,XTR) DK.GRAY,TRIM1# |
1 | ||
| 55302-0K020C0 |
KUN25..FLD BLACK,TRIM1#,2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-0K020B1 |
KUN2#,35..LHD MD.GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0K020 |
KUN2#,35..LHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-0K020 |
KUN2#,35..LHD |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-T0002B1 |
KUN2#,35..LHD MD.GRAY,TRIM1# |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-T0002B1 |
KUN2#,35..LHD MD.GRAY,TRIM1# |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-0K430 |
KUN2#,35..LHD..5F |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-0K030 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55358-0K040 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-0K030 |
KUN25,35..THDCB,THSCB,XTR |
1 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55368-0K010 |
KUN2#,35 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-0K010 |
KUN2#,35 |
1 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-0K040 |
KUN2#,35 |
1 | ||
| 61181 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61181-0K020 |
KUN2#,35..LHD |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-0K021B0 |
KUN2#,35..LHD..(THDCB,THSCB,XTR) DK.GRAY,TRIM1# |
1 | ||
| 73970-0K022B0 |
KUN2#,35..LHD..(THDCB,THSCB,XTR) DK.GRAY,TRIM1# |
1 | ||
| 73970-0K022C0 |
KUN25..FLD BLACK,TRIM1#,2# |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-0K020 |
KUN2#,35..LHD |
1 | ||
| Common parts | ||||
| 90105-T0065 | ||||
| 90163-T0001 | ||||
| 90167-T0007 | ||||
| 90168-T0001 | ||||
| 90178-T0018 | ||||
| 90178-T0019 | ||||
| 90183-05103 | ||||
| 90183-T0001 | ||||

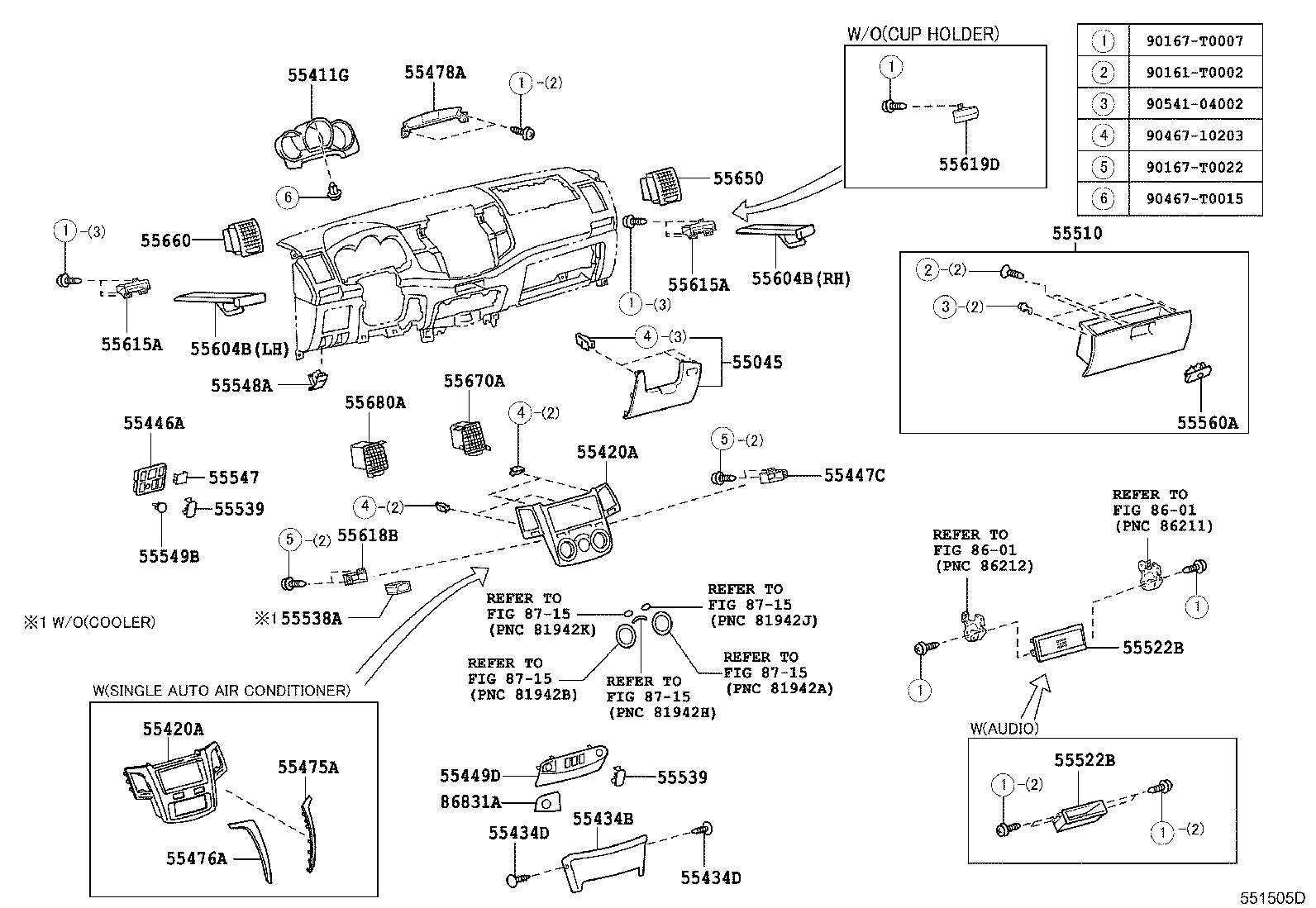

ILLUST NO. 2 OF 2(1107- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-0K020B1 |
KUN2#,35..LHD MD.GRAY,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-0K090C0 |
KUN25..FLD BLACK,TRIM10,2# |
1 | ||
| 55411-0K090C0 |
KUN25..FLD BLACK,TRIM1#,2# |
1 | ||
| 55411-0K090B0 |
KUN25..FLD DK.GRAY,TRIM10 |
1 | ||
| 55411-0K090B0 |
KUN25..FLD DK.GRAY,TRIM1# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-0K150B0 |
KUN25..DLX..FLD DK.GRAY,TRIM1# |
1 | ||
| 55412-0K310C0 |
KUN25..DLX..FLD BLACK,TRIM1#,2# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-0K150B0 |
KUN25..DLX..FLD DK.GRAY,TRIM1# |
1 | ||
| 55412-0K310C0 |
KUN25..DLX..FLD BLACK,TRIM1#,2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-0K070B0 |
KUN2#,35..LHD MD.GRAY,TRIM1# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-0K070B0 |
KUN2#,35 MD.GRAY,TRIM1# |
1 | ||
| 55478A - BEZEL, AUTO CLOCK HOLE | ||||
| 55478-0K010B0 |
KUN25..FLD DK.GRAY,TRIM1# |
1 | ||
| 55478-0K010C0 |
KUN25..FLD BLACK,TRIM10,2# |
1 | ||
| 55478-0K010C0 |
KUN25..FLD BLACK,TRIM1#,2# |
1 | ||
| 55478-0K010B0 |
KUN25..FLD DK.GRAY,TRIM10 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0K080B1 |
KUN2#,35..THDCB,THSCB,XTR MD.GRAY,TRIM1# |
1 | ||
| 55550-0K080C0 |
KUN2#,35..THDCB,THSCB,XTR BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0K010B1 |
KUN2#,35 MD.GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0K010B1 |
KUN2#,35 MD.GRAY,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090B2 |
KUN25..DLX..FLD MD.GRAY,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-0K010B1 |
KUN35..DLX;KUN35..SCB..SR;KUN25..LHD..(SCB,THSCB);KUN2#..LHD..(DCB,THDCB,XTR)..DLX MD.GRAY,TRIM1# |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-0K010B1 |
KUN35..DLX;KUN35..SCB..SR;KUN25..SCB,THSCB;KUN25..XTR..DLX..CBU;KUN25..(DCB,THDCB,XTR)..IV3 MD.GRAY,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-33030B6 |
KUN2#,35..THDCB,THSCB,XTR MD.GRAY,TRIM1#,(J) |
1 | ||
| 55506-0K040B0 |
KUN2#,35..THDCB,THSCB,XTR MD.GRAY,TRIM1#,(L) |
1 | ||
| 55506-0K040C0 |
KUN2#,35..THDCB,THSCB,XTR BLACK,TRIM2#,(L) |
1 | ||
| 55506-33030B6 |
KUN2#,35..THDCB,THSCB,XTR MD.GRAY,TRIM1# |
1 | ||
| 55506-33030C0 |
KUN2#,35..THDCB,THSCB,XTR BLACK,TRIM2#,(J) |
1 | ||
| 55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-0K010C0 |
KUN25..FLD BLACK,TRIM10,2#,RH |
1 | ||
| 55604-0K020B0 |
KUN25..FLD DK.GRAY,TRIM10,LH |
1 | ||
| 55604-0K010B0 |
KUN25..FLD DK.GRAY,TRIM1#,RH |
1 | ||
| 55604-0K020B0 |
KUN25..FLD DK.GRAY,TRIM1#,LH |
1 | ||
| 55604-0K010B0 |
KUN25..FLD DK.GRAY,TRIM10,RH |
1 | ||
| 55604-0K020C0 |
KUN25..FLD BLACK,TRIM10,2#,LH |
1 | ||
| 55604-0K010C0 |
KUN25..FLD BLACK,TRIM1#,2#,RH |
1 | ||
| 55604-0K020C0 |
KUN25..FLD BLACK,TRIM1#,2#,LH |
1 | ||
| 55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-0K010C0 |
KUN25..FLD BLACK,TRIM10,2#,RH |
1 | ||
| 55604-0K020B0 |
KUN25..FLD DK.GRAY,TRIM10,LH |
1 | ||
| 55604-0K010B0 |
KUN25..FLD DK.GRAY,TRIM1#,RH |
1 | ||
| 55604-0K020B0 |
KUN25..FLD DK.GRAY,TRIM1#,LH |
1 | ||
| 55604-0K010B0 |
KUN25..FLD DK.GRAY,TRIM10,RH |
1 | ||
| 55604-0K020C0 |
KUN25..FLD BLACK,TRIM10,2#,LH |
1 | ||
| 55604-0K010C0 |
KUN25..FLD BLACK,TRIM1#,2#,RH |
1 | ||
| 55604-0K020C0 |
KUN25..FLD BLACK,TRIM1#,2#,LH |
1 | ||
| 55615A - CASE, INSTRUMENT PANEL CUP HOLDER, OUTER | ||||
| 55615-0K010B0 |
KUN25..FLD DK.GRAY,TRIM10 |
2 | ||
| 55615-0K010C0 |
KUN25..FLD BLACK,TRIM1#,2# |
2 | ||
| 55615-0K010C0 |
KUN25..FLD BLACK,TRIM10,2# |
2 | ||
| 55615-0K010B0 |
KUN25..FLD DK.GRAY,TRIM1# |
2 | ||
| 55615A - CASE, INSTRUMENT PANEL CUP HOLDER, OUTER | ||||
| 55615-0K010B0 |
KUN25..FLD DK.GRAY,TRIM10 |
2 | ||
| 55615-0K010C0 |
KUN25..FLD BLACK,TRIM1#,2# |
2 | ||
| 55615-0K010C0 |
KUN25..FLD BLACK,TRIM10,2# |
2 | ||
| 55615-0K010B0 |
KUN25..FLD DK.GRAY,TRIM1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0K012C0 |
KUN25..FLD BLACK,TRIM10,2# |
1 | ||
| 55650-0K012B0 |
KUN25..FLD DK.GRAY,TRIM1# |
1 | ||
| 55650-0K012B0 |
KUN25..FLD DK.GRAY,TRIM10 |
1 | ||
| 55650-0K012C0 |
KUN25..FLD BLACK,TRIM1#,2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0K051B0 |
KUN25..FLD DK.GRAY,TRIM1# |
1 | ||
| 55660-0K051C0 |
KUN25..FLD BLACK,TRIM1#,2# |
1 | ||
| 55660-0K051C0 |
KUN25..FLD BLACK,TRIM10,2# |
1 | ||
| 55660-0K051B0 |
KUN25..FLD DK.GRAY,TRIM10 |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-0K080 |
KUN2#,35 |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-0K110 |
KUN2#,35 |
1 | ||
| 86831A - COVER, ACCESSORY SOCKET | ||||
| 86831-0K040B0 |
KUN35..DLX;KUN35..SCB..SR;KUN25..SCB,THSCB;KUN25..(DCB,THDCB,XTR)..DLX MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90161-T0002 | ||||
| 90167-T0007 | ||||
| 90467-10203 | ||||
| 90467-10206 | ||||
| 90541-04002 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8715 | ||||
