KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )

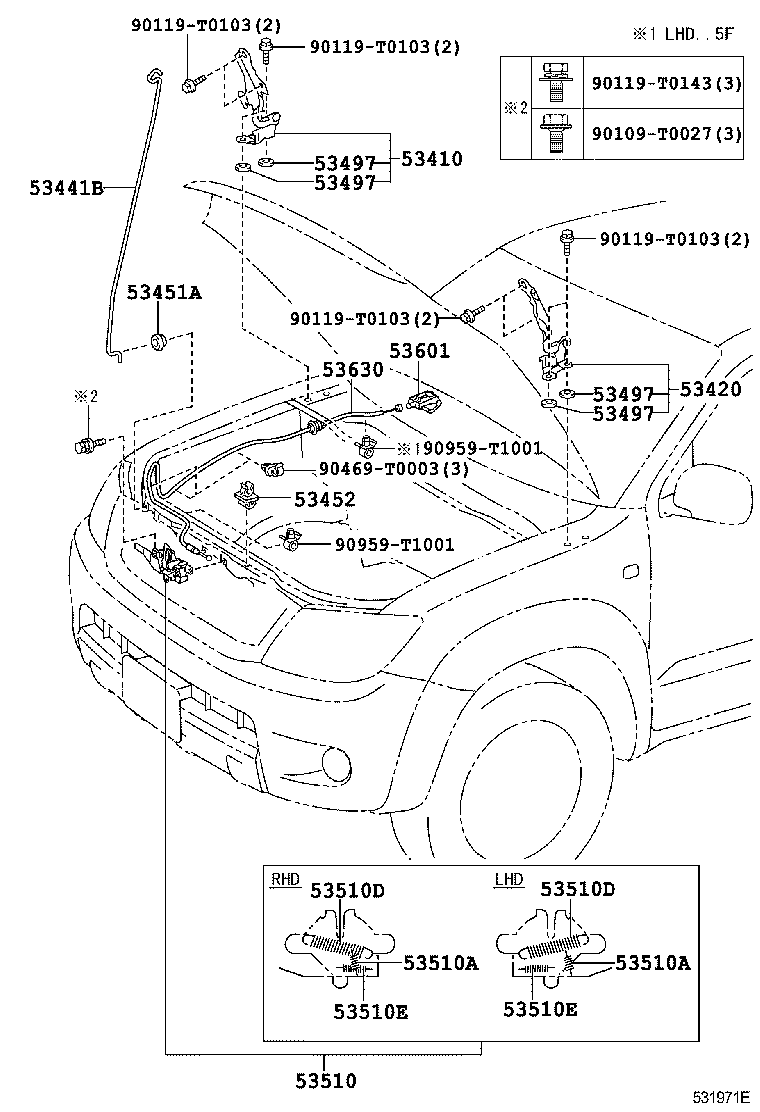

Click highlighted areas on diagram

diagram 53410 53420 53441B 53451A 53452 53497 53497 53497 53497 53510 53510A 53510A 53510D 53510D 53510E 53510E 53601 53630 90109T0027 90119T0103 90119T0103 90119T0103 90119T0103 90119T0143 90469T0003 90959T1001 90959T1001
Part # Description Qty Price
Common parts
90109-T0027
90119-T0103
90119-T0143
90469-T0003
90959-T1001

(1107- )

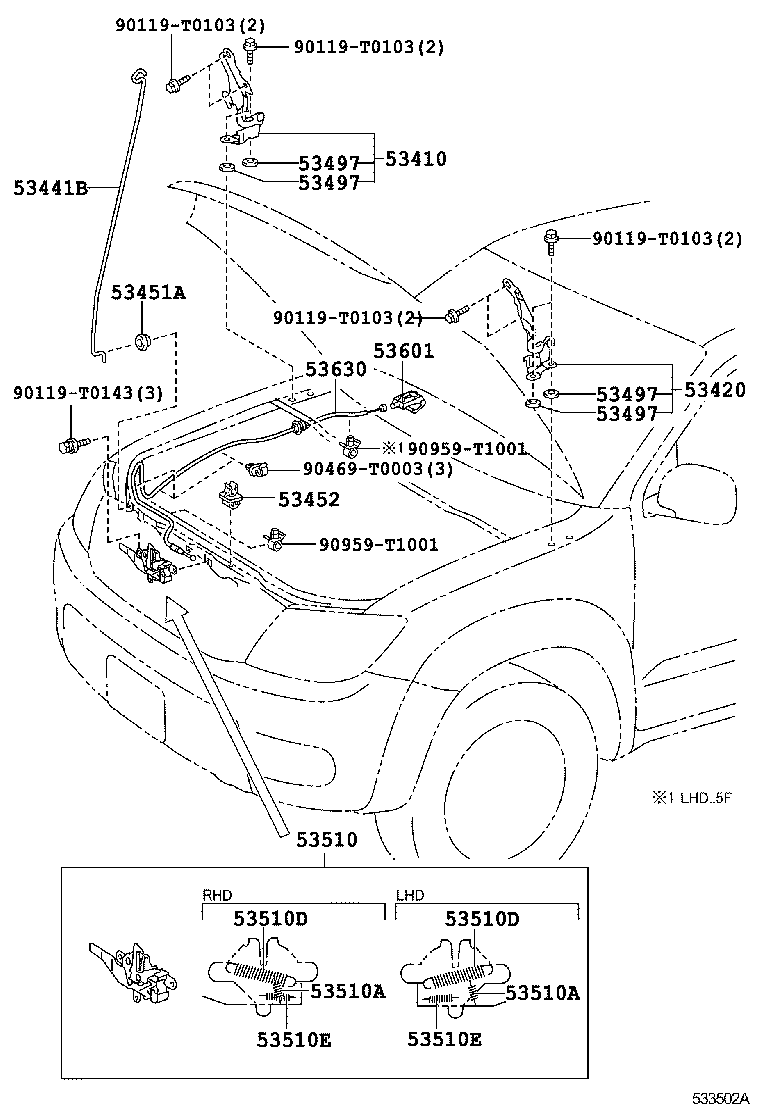

Click highlighted areas on diagram

diagram 53410 53420 53441B 53451A 53452 53497 53497 53497 53497 53510 53510A 53510A 53510D 53510D 53510E 53510E 53601 53630 90119T0103 90119T0103 90119T0103 90119T0103 90119T0143 90469T0003 90959T1001 90959T1001
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-0K100

KUN2#,35..THDCB,THSCB,XTR

 1
53420 - HINGE ASSY, HOOD, LH
53420-0K100

KUN2#,35..THDCB,THSCB,XTR

 1
53441B - SUPPORT, HOOD
53441-0K030

KUN2#,35

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-T0006

KUN2#,35

 1
53452 - HOLDER, HOOD STAY
53452-0K010

KUN2#,35

 1
53497 - PAD, HOOD HINGE, NO.1
53497-20070

KUN2#,35..THDCB,THSCB,XTR

T=2.0

 4
53497-42010

KUN2#,35..THDCB,THSCB,XTR

T=0.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-20070

KUN2#,35..THDCB,THSCB,XTR

T=2.0

 4
53497-42010

KUN2#,35..THDCB,THSCB,XTR

T=0.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-20070

KUN2#,35..THDCB,THSCB,XTR

T=2.0

 4
53497-42010

KUN2#,35..THDCB,THSCB,XTR

T=0.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-20070

KUN2#,35..THDCB,THSCB,XTR

T=2.0

 4
53497-42010

KUN2#,35..THDCB,THSCB,XTR

T=0.5

 4
53510 - LOCK ASSY, HOOD
53510-0K280

KUN2#,35..LHD..(THDCB,THSCB,XTR)

 1
53510-0K281

KUN2#,35..LHD..(THDCB,THSCB,XTR)

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-T0004

KUN2#,35..THDCB,THSCB,XTR

WD=1.2,CW=8.5

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-T0004

KUN2#,35..THDCB,THSCB,XTR

WD=1.2,CW=8.5

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-T0003

KUN2#,35

WD=1.8,CW=13

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-T0003

KUN2#,35

WD=1.8,CW=13

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-T0005

KUN2#,35..THDCB,THSCB,XTR

WD=0.9,CW=21

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-T0005

KUN2#,35..THDCB,THSCB,XTR

WD=0.9,CW=21

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010B6

KUN2#,35

MD.GRAY,TRIM1#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-0K010

KUN2#,35..THDCB,THSCB,XTR

 1
Common parts
90119-T0103
90119-T0143
90469-T0003
90959-T1001
