KUN25L-CRMDHH (2011)
Toyota Hilux
(0507- )CBU

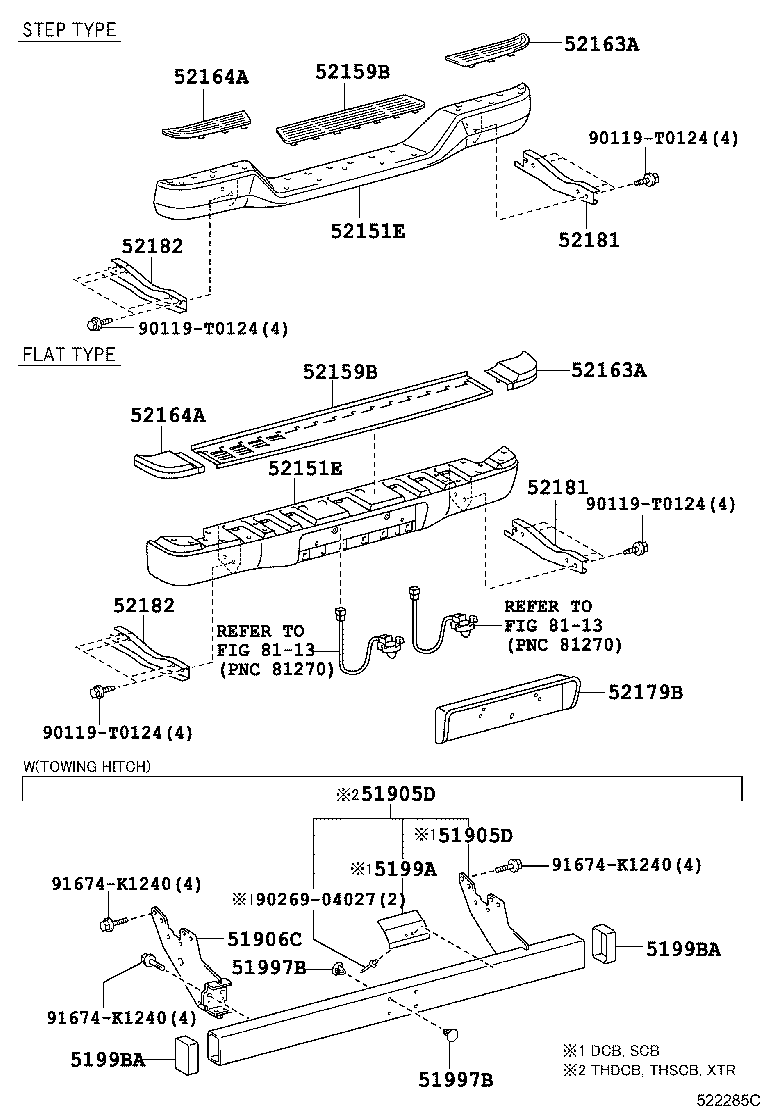

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0124 | ||||
| 90269-04027 | ||||
| 91674-K1240 | ||||
| Linked diagrams | ||||
| 8113 | ||||
(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51905D - BRACKET SUB-ASSY, RECEIVER HITCH, RH | ||||
| 51905-0K010 |
KUN25..(THSCB,XTR)..DLX..CBU |
1 | ||
| 51905-0K020 |
KUN25..XTR..DLX..CBU REAR BUMPER-FLAT TYPE(STEEL & PLATED) |
1 | ||
| 51905-0K020 |
KUN25..(THSCB,XTR)..DLX..CBU REAR BUMPER-FLAT TYPE(STEEL & PAINTED) |
1 | ||
| 51905D - BRACKET SUB-ASSY, RECEIVER HITCH, RH | ||||
| 51905-0K010 |
KUN25..(THSCB,XTR)..DLX..CBU |
1 | ||
| 51905-0K020 |
KUN25..XTR..DLX..CBU REAR BUMPER-FLAT TYPE(STEEL & PLATED) |
1 | ||
| 51905-0K020 |
KUN25..(THSCB,XTR)..DLX..CBU REAR BUMPER-FLAT TYPE(STEEL & PAINTED) |
1 | ||
| 51906C - BRACKET SUB-ASSY, RECEIVER HITCH, LH | ||||
| 51906-0K010 |
KUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU |
1 | ||
| 51906-0K020 |
KUN25..XTR..DLX..CBU REAR BUMPER-FLAT TYPE(STEEL & PLATED) |
1 | ||
| 51906-0K020 |
KUN25..(SCB,THSCB,XTR)..DLX..CBU REAR BUMPER-FLAT TYPE(STEEL & PAINTED) |
1 | ||
| 51997B - CAP, RECEIVER HITCH | ||||
| 51997-0K020 |
KUN2#,35..CBU |
8 | ||
| 51997B - CAP, RECEIVER HITCH | ||||
| 51997-0K020 |
KUN2#,35..CBU |
8 | ||
| 5199BA - CAP, REAR UNDERRUN PROTECTION | ||||
| 5199B-0K010 |
KUN2#,35..CBU |
2 | ||
| 5199BA - CAP, REAR UNDERRUN PROTECTION | ||||
| 5199B-0K010 |
KUN2#,35..CBU |
2 | ||
| 52151E - BAR, REAR BUMPER | ||||
| 52105-0K061 |
KUN26..DLX;KUN25..XTR..DLX..CBU;KUN35..(DCB,THDCB,XTR)..SR;KUN25..LHD..(DCB,THDCB)..CBU PLATED,REAR BUMPER-FLAT TYPE(STEEL & PLATED) |
1 | ||
| 52105-0K010 |
KUN26..LHD..DCB..SR;KUN2#..RHD..DCB..DLX;KUN35..(DCB,THDCB)..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU NO PAINT REQ.,REAR BUMPER-FLAT TYPE(STEEL & PAINTED) |
1 | ||
| 52105-04040 |
KUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU NO PAINT REQ. |
1 | ||
| 52151E - BAR, REAR BUMPER | ||||
| 52105-0K061 |
KUN26..DLX;KUN25..XTR..DLX..CBU;KUN35..(DCB,THDCB,XTR)..SR;KUN25..LHD..(DCB,THDCB)..CBU PLATED,REAR BUMPER-FLAT TYPE(STEEL & PLATED) |
1 | ||
| 52105-0K010 |
KUN26..LHD..DCB..SR;KUN2#..RHD..DCB..DLX;KUN35..(DCB,THDCB)..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU NO PAINT REQ.,REAR BUMPER-FLAT TYPE(STEEL & PAINTED) |
1 | ||
| 52105-04040 |
KUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU NO PAINT REQ. |
1 | ||
| 52159B - PLATE, REAR BUMPER | ||||
| 52159-04010 |
KUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU |
1 | ||
| 52159-0K010 |
KUN2#..RHD..DCB..DLX;KUN35..(DCB,THDCB)..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU REAR BUMPER-FLAT TYPE(STEEL & PAINTED) |
1 | ||
| 52159-0K010 |
KUN26..RHD..DLX;KUN25..XTR..DLX..CBU;KUN35..(DCB,THDCB,XTR)..SR REAR BUMPER-FLAT TYPE(STEEL & PLATED) |
1 | ||
| 52159B - PLATE, REAR BUMPER | ||||
| 52159-04010 |
KUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU |
1 | ||
| 52159-0K010 |
KUN2#..RHD..DCB..DLX;KUN35..(DCB,THDCB)..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU REAR BUMPER-FLAT TYPE(STEEL & PAINTED) |
1 | ||
| 52159-0K010 |
KUN26..RHD..DLX;KUN25..XTR..DLX..CBU;KUN35..(DCB,THDCB,XTR)..SR REAR BUMPER-FLAT TYPE(STEEL & PLATED) |
1 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-04010 |
KUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU |
1 | ||
| 52163-0K010 |
KUN2#..RHD..DCB..DLX;KUN35..(DCB,THDCB)..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU REAR BUMPER-FLAT TYPE(STEEL & PAINTED) |
1 | ||
| 52163-0K010 |
KUN26..RHD..DLX;KUN25..XTR..DLX..CBU;KUN35..(DCB,THDCB,XTR)..SR REAR BUMPER-FLAT TYPE(STEEL & PLATED) |
1 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-04010 |
KUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU |
1 | ||
| 52163-0K010 |
KUN2#..RHD..DCB..DLX;KUN35..(DCB,THDCB)..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU REAR BUMPER-FLAT TYPE(STEEL & PAINTED) |
1 | ||
| 52163-0K010 |
KUN26..RHD..DLX;KUN25..XTR..DLX..CBU;KUN35..(DCB,THDCB,XTR)..SR REAR BUMPER-FLAT TYPE(STEEL & PLATED) |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-04010 |
KUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU |
1 | ||
| 52164-0K010 |
KUN2#..RHD..DCB..DLX;KUN35..(DCB,THDCB)..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU REAR BUMPER-FLAT TYPE(STEEL & PAINTED) |
1 | ||
| 52164-0K010 |
KUN26..RHD..DLX;KUN25..XTR..DLX..CBU;KUN35..(DCB,THDCB,XTR)..SR REAR BUMPER-FLAT TYPE(STEEL & PLATED) |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-04010 |
KUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU |
1 | ||
| 52164-0K010 |
KUN2#..RHD..DCB..DLX;KUN35..(DCB,THDCB)..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU REAR BUMPER-FLAT TYPE(STEEL & PAINTED) |
1 | ||
| 52164-0K010 |
KUN26..RHD..DLX;KUN25..XTR..DLX..CBU;KUN35..(DCB,THDCB,XTR)..SR REAR BUMPER-FLAT TYPE(STEEL & PLATED) |
1 | ||
| 52179B - PLATE, REAR BUMPER BAR | ||||
| 52179-0K010 |
KUN26..RHD..DLX;KUN25..XTR..DLX..CBU;KUN35..(DCB,THDCB,XTR)..SR REAR BUMPER-FLAT TYPE(STEEL & PLATED) |
1 | ||
| 52179-0K010 |
KUN2#..RHD..DCB..DLX;KUN35..(DCB,THDCB)..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU REAR BUMPER-FLAT TYPE(STEEL & PAINTED) |
1 | ||
| 52181 - ARM, REAR BUMPER, RH | ||||
| 52181-0K040 |
KUN26..RHD..DLX;KUN25..XTR..DLX..CBU;KUN35..(DCB,THDCB,XTR)..SR REAR BUMPER-FLAT TYPE(STEEL & PLATED) |
1 | ||
| 52181-0K040 |
KUN2#..RHD..DCB..DLX;KUN35..(DCB,THDCB)..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU REAR BUMPER-FLAT TYPE(STEEL & PAINTED) |
1 | ||
| 52181-0K050 |
KUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU |
1 | ||
| 52181 - ARM, REAR BUMPER, RH | ||||
| 52181-0K040 |
KUN26..RHD..DLX;KUN25..XTR..DLX..CBU;KUN35..(DCB,THDCB,XTR)..SR REAR BUMPER-FLAT TYPE(STEEL & PLATED) |
1 | ||
| 52181-0K040 |
KUN2#..RHD..DCB..DLX;KUN35..(DCB,THDCB)..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU REAR BUMPER-FLAT TYPE(STEEL & PAINTED) |
1 | ||
| 52181-0K050 |
KUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU |
1 | ||
| 52182 - ARM, REAR BUMPER, LH | ||||
| 52182-0K040 |
KUN26..RHD..DLX;KUN25..XTR..DLX..CBU;KUN35..(DCB,THDCB,XTR)..SR REAR BUMPER-FLAT TYPE(STEEL & PLATED) |
1 | ||
| 52182-0K050 |
KUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU |
1 | ||
| 52182-0K040 |
KUN2#..RHD..DCB..DLX;KUN35..(DCB,THDCB)..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU REAR BUMPER-FLAT TYPE(STEEL & PAINTED) |
1 | ||
| 52182 - ARM, REAR BUMPER, LH | ||||
| 52182-0K040 |
KUN26..RHD..DLX;KUN25..XTR..DLX..CBU;KUN35..(DCB,THDCB,XTR)..SR REAR BUMPER-FLAT TYPE(STEEL & PLATED) |
1 | ||
| 52182-0K050 |
KUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU |
1 | ||
| 52182-0K040 |
KUN2#..RHD..DCB..DLX;KUN35..(DCB,THDCB)..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU REAR BUMPER-FLAT TYPE(STEEL & PAINTED) |
1 | ||
| Common parts | ||||
| 90119-T0124 | ||||
| 90119-T0493 | ||||
| 90269-04027 | ||||
| 91674-K1240 | ||||
| Linked diagrams | ||||
| 8113 | ||||
