KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

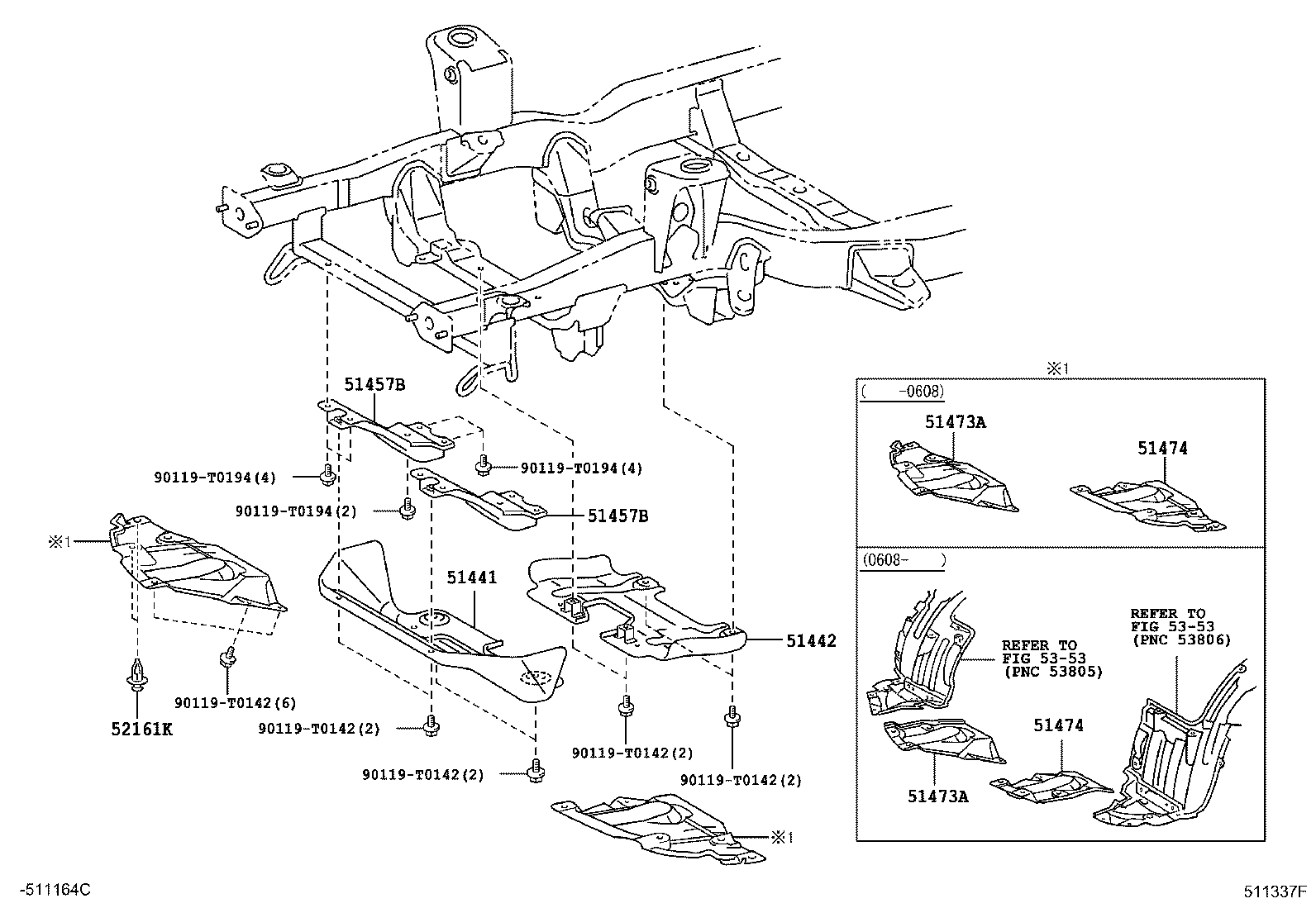

(0507- )KUN2#

Click highlighted areas on diagram

diagram 51441 51442 51457B 51457B 51473A 51473A 51474 51474 52161K 5353 5353 90119T0142 90119T0142 90119T0142 90119T0142 90119T0142 90119T0194 90119T0194 90119T0194
Part # Description Qty Price
Common parts
90119-T0142
90119-T0194
Linked diagrams
5353

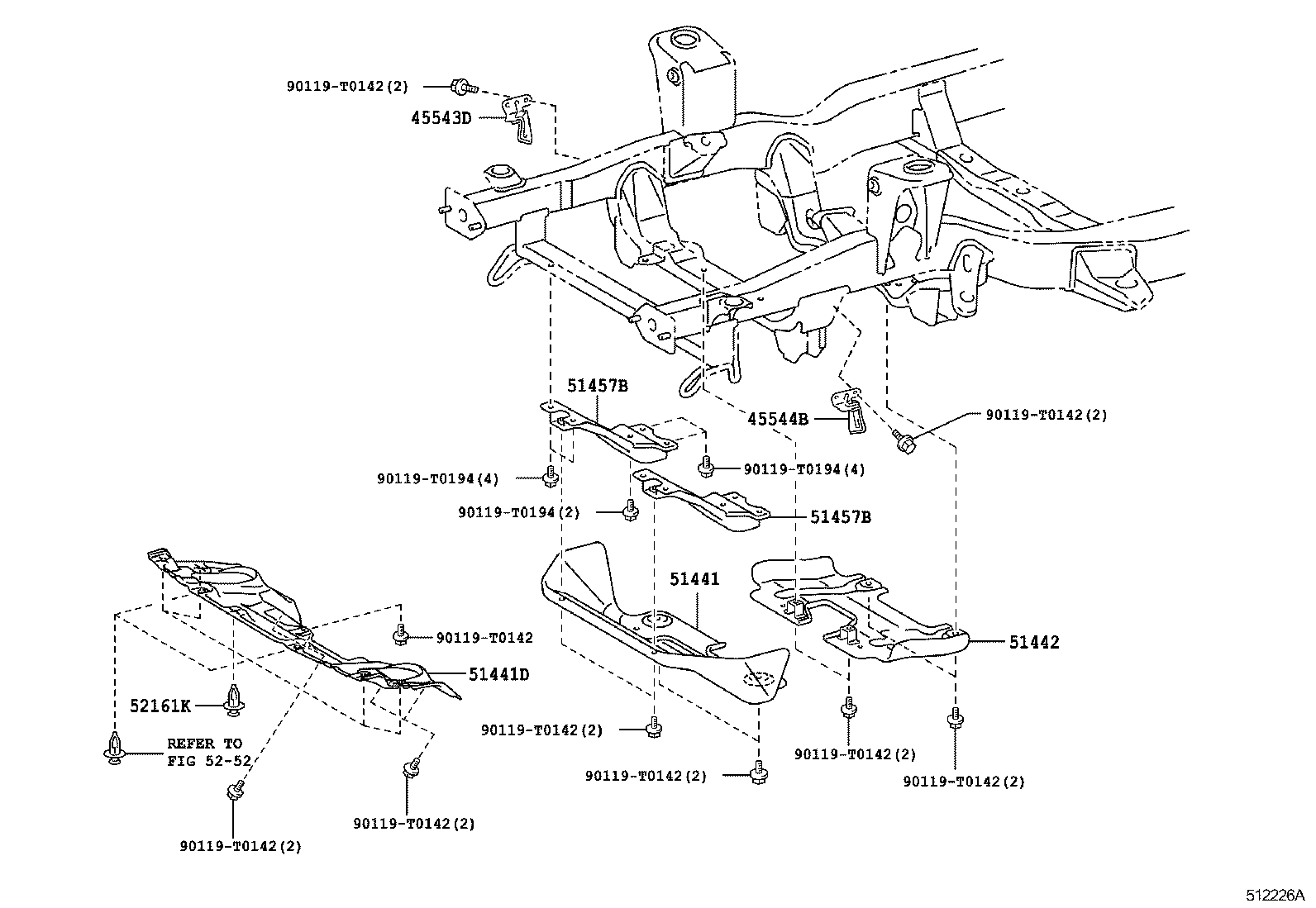

(1107- )

Click highlighted areas on diagram

diagram 45543D 45544B 51441 51441D 51442 51457B 51457B 52161K 5252 90119T0142 90119T0142 90119T0142 90119T0142 90119T0142 90119T0142 90119T0142 90119T0142 90119T0142 90119T0194 90119T0194 90119T0194
Part # Description Qty Price
45543D - PROTECTOR, STEERING RACK BOOT, RH
45543-0K020

KUN2#,35

 1
45544B - PROTECTOR, STEERING RACK BOOT, LH
45544-0K020

KUN2#,35

 1
51441 - COVER, ENGINE UNDER, NO.1
51410-0K021

KUN2#,35

 1
51441D - COVER, ENGINE UNDER
51441-0K050

KUN2#,35

 1
51442 - COVER, ENGINE UNDER, NO.2
51420-0K010

KUN2#,35

 1
51457B - BRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBE
51405-0K020

KUN2#,35

 2
51457B - BRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBE
51405-0K020

KUN2#,35

 2
52161K - PIECE, FRONT BUMPER
52161-0K050

KUN2#,35

 5
Common parts
90119-T0142
90119-T0194
Linked diagrams
5252
