KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )KUN2#

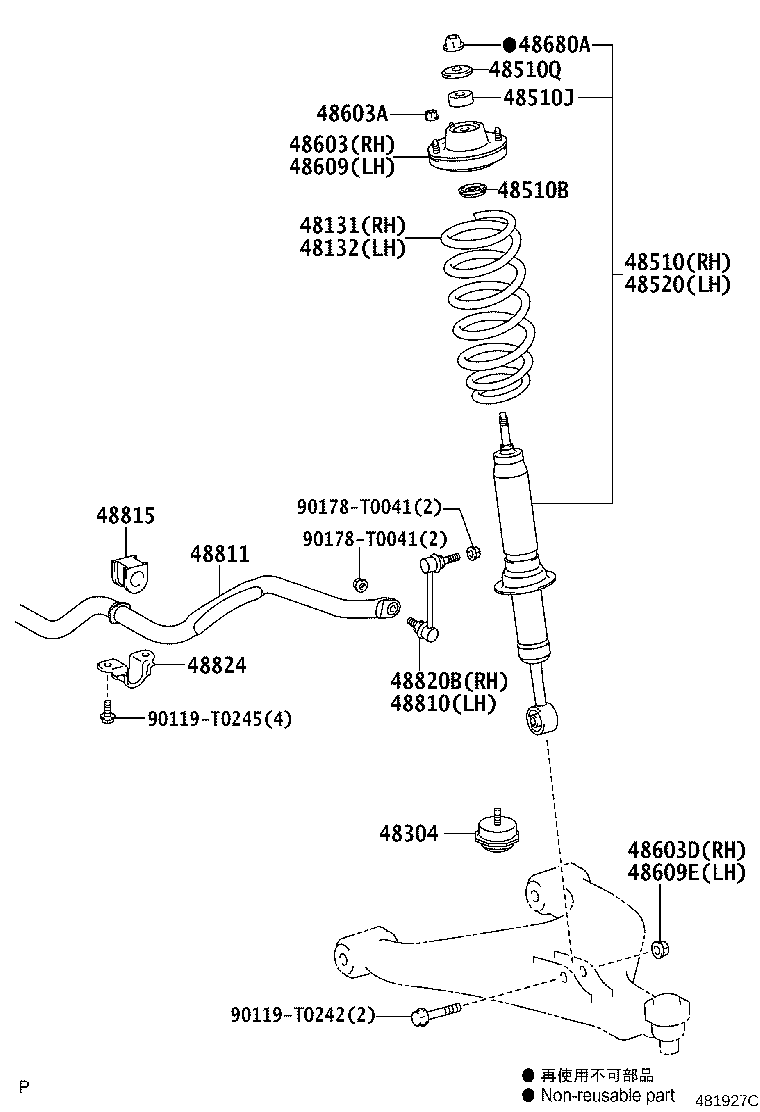

Click highlighted areas on diagram

diagram 48131 48132 48304 48510 48510B 48510J 48510Q 48520 48603 48603A 48603D 48609 48609E 48680A 48810 48811 48815 48820B 48824 90119T0242 90119T0245 90178T0041 90178T0041
Part # Description Qty Price
Common parts
90119-T0242
90119-T0245
90178-T0041

(1107- )

Click highlighted areas on diagram

diagram 48131 48132 48304 48510 48510 48510B 48510J 48510Q 48520 48520 48603 48603A 48603D 48609 48609E 48680A 48810 48811 48815 48820B 48824 90119T0242 90119T0245 90178T0041 90178T0041
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-0K780

KUN25..FLD

 1
48131-0K790

KUN25..FLD

 1
48131-0K780

KUN25..FLD

REAR SEAT-WITHOUT

 1
48132 - SPRING, FRONT COIL, LH
48131-0K780

KUN25..FLD

REAR SEAT-WITHOUT

 1
48131-0K790

KUN25..FLD

 1
48131-0K780

KUN25..FLD

 1
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48304-0K040

KUN2#,35

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-8Z029

KUN2#,35..THDCB,THSCB,XTR

MARK 48510-0K590

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-8Z029

KUN2#,35..THDCB,THSCB,XTR

MARK 48510-0K590

 1
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-T2003

KUN2#,35

 2
48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1
90948-T1001

KUN2#,35

 2
48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
90948-T2004

KUN2#,35

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-8Z029

KUN2#,35..THDCB,THSCB,XTR

MARK 48510-0K590

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-8Z029

KUN2#,35..THDCB,THSCB,XTR

MARK 48510-0K590

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-0K040

KUN2#,35

 1
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90178-T0050

KUN2#,35

 6
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90178-T0048

KUN2#,35

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-0K040

KUN2#,35

 1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90178-T0048

KUN2#,35

 1
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94188-01241

KUN2#,35

 2
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-0K010

KUN2#,35

 1
48811 - BAR, STABILIZER, FRONT
48811-0K050

KUN2#,35..THDCB,THSCB,XTR

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-0K010

KUN2#,35

 2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-0K030

KUN2#,35

 1
48824 - BRACKET, STABILIZER, FRONT
48824-0K010

KUN2#,35

 2
Common parts
90119-T0242
90119-T0245
90178-T0041
