Toyota Hilux KUN25 BRAKE BOOSTER & VACUUM TUBE

Manufacturers Home
Toyota
EU
HILUX
KUN25L-CRMDHH (2011)
4703 - BRAKE BOOSTER & VACUUM TUBE

KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0507- )LHD

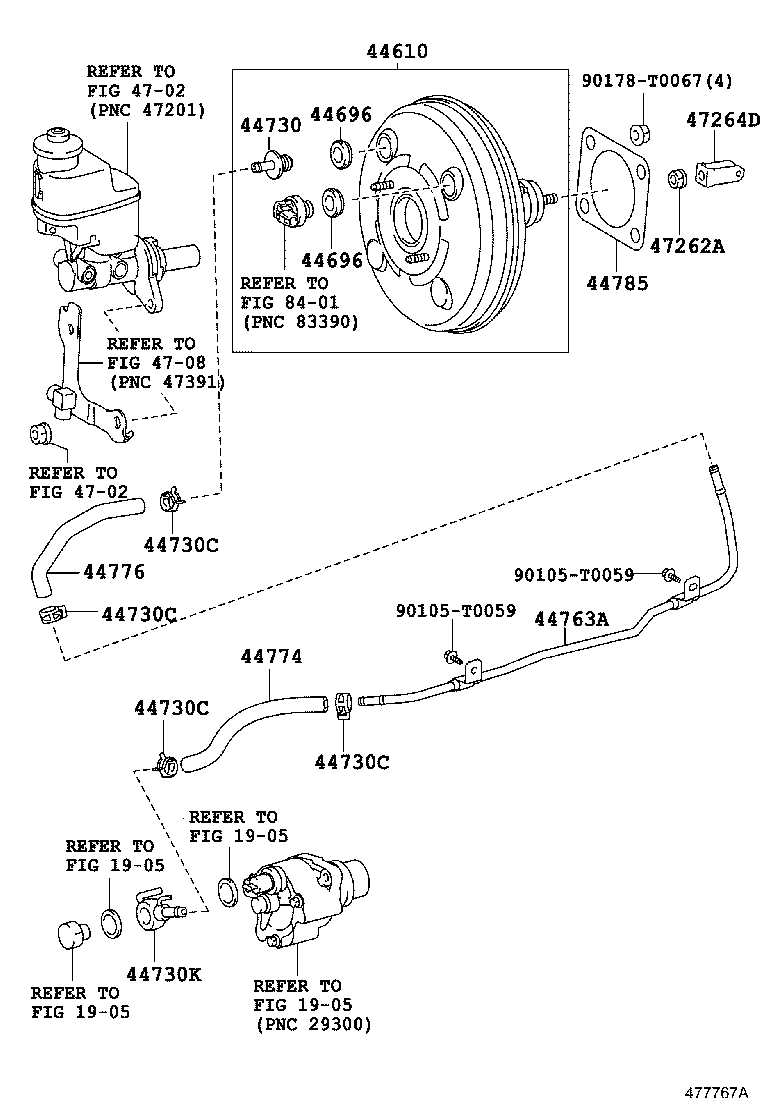

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-T0059
90178-T0067
Linked diagrams
1905
4702
8401

(1107- )KUN25,35..LHD ; (1107- )KUN26..LHD..SR

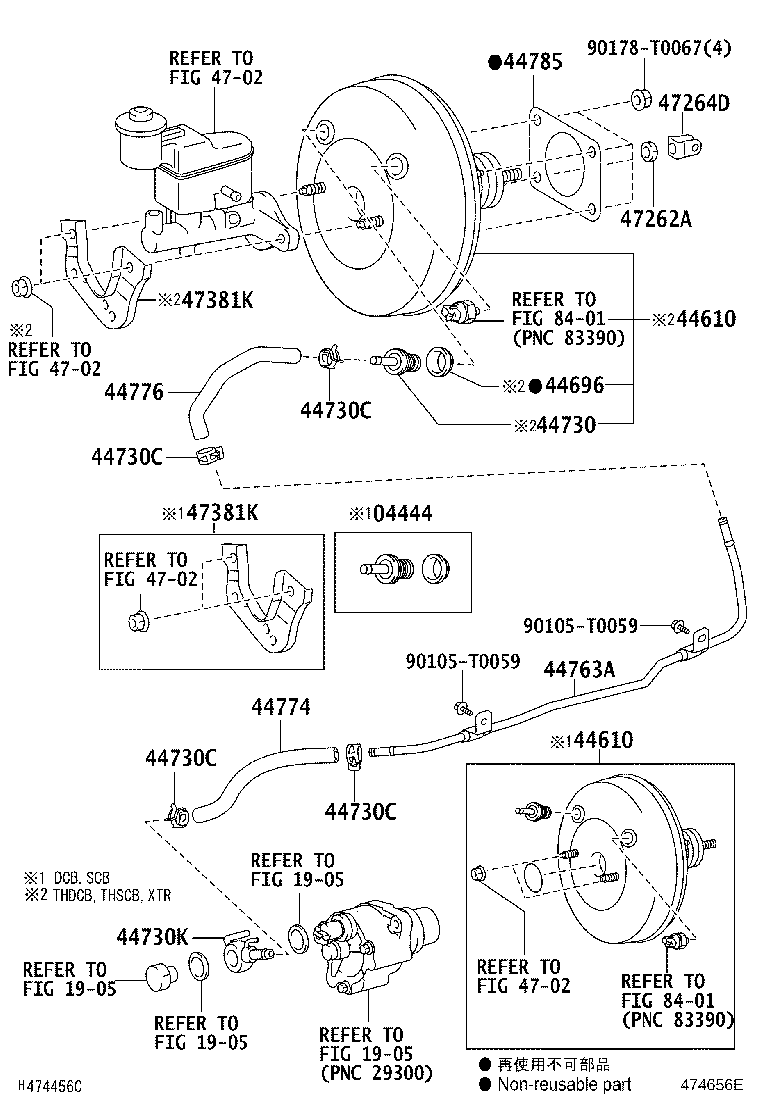

Click highlighted areas on diagram

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-0K150	KUN35..XTR..SR;KUN25..THDCB..IV3;KUN25..LHD..(THSCB,XTR);KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH	08/2013 - 08/2014	1
44610-0K190	KUN2#,35..LHD..(THDCB,THSCB,XTR)	07/2011 - 08/2014	1
44610 - BOOSTER ASSY, BRAKE
44610-0K150	KUN35..XTR..SR;KUN25..THDCB..IV3;KUN25..LHD..(THSCB,XTR);KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH	08/2013 - 08/2014	1
44610-0K190	KUN2#,35..LHD..(THDCB,THSCB,XTR)	07/2011 - 08/2014	1
44696 - GROMMET, CHECK VALVE
90080-48050	KUN2#,35..THDCB,THSCB,XTR	07/2011 - 08/2014	1
90080-48050	KUN35..XTR..SR;KUN25..THSCB,XTR;KUN25..THDCB..IV3;KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH	08/2013 - 08/2014	2
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22150	KUN26..DLX;KUN2#,35..THDCB,THSCB,XTR	07/2011 - 12/2015	1
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN2#,35..LHD	07/2011 - 12/2015	4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN2#,35..LHD	07/2011 - 12/2015	4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN2#,35..LHD	07/2011 - 12/2015	4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN2#,35..LHD	07/2011 - 12/2015	4
44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP)
90405-T0003	KUN2#,35	07/2011 - 12/2015	1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-0K020	KUN2#,35	07/2011 - 12/2015	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-0K020	KUN2#,35	07/2011 - 02/2015	1
44776 - HOSE, BRAKE BOOSTER
44776-0K050	KUN35..XTR..SR;KUN25..THDCB..IV3;KUN25..LHD..(THSCB,XTR);KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH	08/2013 - 08/2014	1
44776-0K010	KUN2#,35..LHD..(THDCB,THSCB,XTR)	07/2011 - 08/2014	1
44776-0K050	KUN2#,35..LHD..(THDCB,THSCB,XTR)	08/2014 - 03/2015	1
44785 - GASKET, BRAKE BOOSTER
44785-17010	KUN2#,35	07/2011 - 12/2015	1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
90016-AC101	KUN2#,35..THDCB,THSCB,XTR (L)	07/2011 - 08/2014	1
90179-10065	KUN35..XTR..SR;KUN25..THSCB,XTR;KUN25..THDCB..IV3;KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH	08/2013 - 08/2014	1
94120-41000	KUN2#,35..THDCB,THSCB,XTR (J)	07/2011 - 08/2014	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0K010	KUN2#,35..THDCB,THSCB,XTR	07/2011 - 08/2014	1
47264-0K050	KUN35..XTR..SR;KUN25..THSCB,XTR;KUN25..THDCB..IV3;KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH	08/2013 - 08/2014	1
47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP
47381-0K010	KUN2#,35..THDCB,THSCB,XTR	07/2011 - 08/2014	1
47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP
47381-0K010	KUN2#,35..THDCB,THSCB,XTR	07/2011 - 08/2014	1
Common parts
90105-T0059
90178-T0067
Linked diagrams
1905
4702
8401

(1107- )LHD

Click highlighted areas on diagram

W(VSC)

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-0K150	KUN35..XTR..SR;KUN25..THDCB..IV3;KUN25..LHD..(THSCB,XTR);KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH	08/2013 - 08/2014	1
44610-0K190	KUN2#,35..LHD..(THDCB,THSCB,XTR)	07/2011 - 08/2014	1
44696 - GROMMET, CHECK VALVE
90080-48050	KUN2#,35..THDCB,THSCB,XTR	07/2011 - 08/2014	1
90080-48050	KUN35..XTR..SR;KUN25..THSCB,XTR;KUN25..THDCB..IV3;KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH	08/2013 - 08/2014	2
44696 - GROMMET, CHECK VALVE
90080-48050	KUN2#,35..THDCB,THSCB,XTR	07/2011 - 08/2014	1
90080-48050	KUN35..XTR..SR;KUN25..THSCB,XTR;KUN25..THDCB..IV3;KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH	08/2013 - 08/2014	2
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22150	KUN26..DLX;KUN2#,35..THDCB,THSCB,XTR	07/2011 - 12/2015	1
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN2#,35..LHD	07/2011 - 12/2015	4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN2#,35..LHD	07/2011 - 12/2015	4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN2#,35..LHD	07/2011 - 12/2015	4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN2#,35..LHD	07/2011 - 12/2015	4
44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP)
90405-T0003	KUN2#,35	07/2011 - 12/2015	1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-0K020	KUN2#,35	07/2011 - 12/2015	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-0K020	KUN2#,35	07/2011 - 02/2015	1
44776 - HOSE, BRAKE BOOSTER
44776-0K050	KUN35..XTR..SR;KUN25..THDCB..IV3;KUN25..LHD..(THSCB,XTR);KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH	08/2013 - 08/2014	1
44776-0K010	KUN2#,35..LHD..(THDCB,THSCB,XTR)	07/2011 - 08/2014	1
44776-0K050	KUN2#,35..LHD..(THDCB,THSCB,XTR)	08/2014 - 03/2015	1
44785 - GASKET, BRAKE BOOSTER
44785-17010	KUN2#,35	07/2011 - 12/2015	1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
90016-AC101	KUN2#,35..THDCB,THSCB,XTR (L)	07/2011 - 08/2014	1
90179-10065	KUN35..XTR..SR;KUN25..THSCB,XTR;KUN25..THDCB..IV3;KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH	08/2013 - 08/2014	1
94120-41000	KUN2#,35..THDCB,THSCB,XTR (J)	07/2011 - 08/2014	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0K010	KUN2#,35..THDCB,THSCB,XTR	07/2011 - 08/2014	1
47264-0K050	KUN35..XTR..SR;KUN25..THSCB,XTR;KUN25..THDCB..IV3;KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH	08/2013 - 08/2014	1
Common parts
90105-T0059
90178-T0067
Linked diagrams
1905
4702
4708
8401

KUN25L-CRMDHH (2011)

(0507- )LHD

(1107- )KUN25,35..LHD ; (1107- )KUN26..LHD..SR

(1107- )LHD
