KUN25L-CRMDHH (2011)
Toyota Hilux

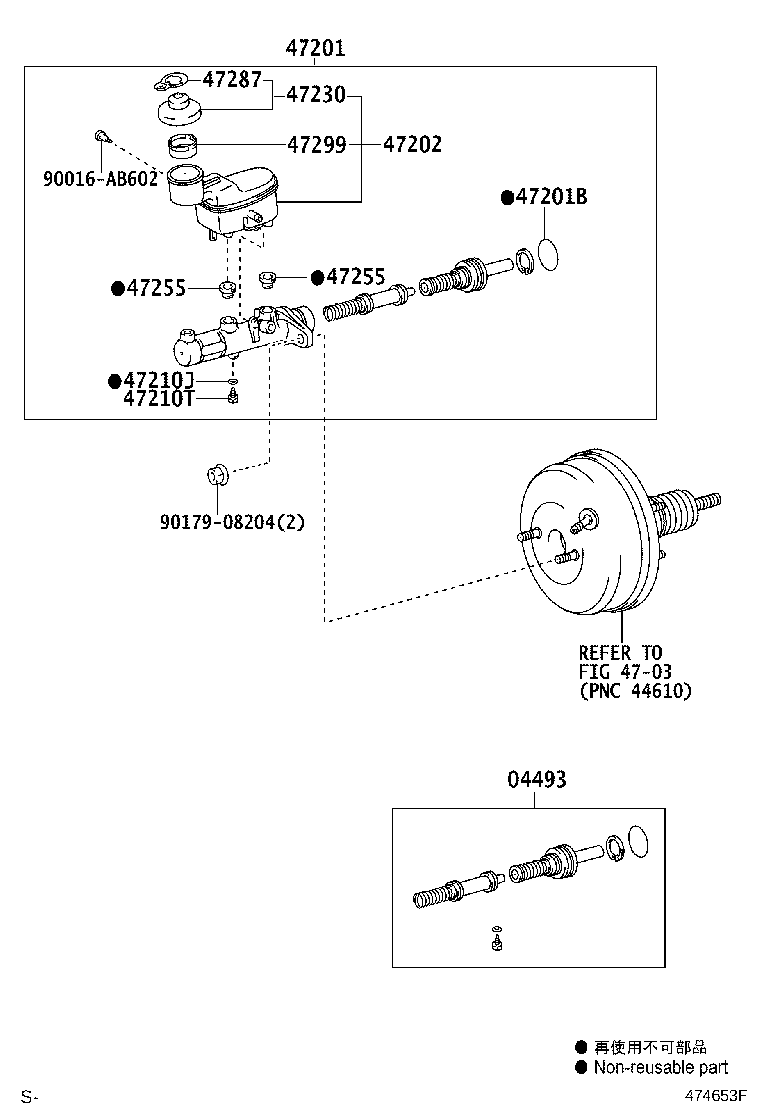

(0507- )THDCB,THSCB,XTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90016-AB602 | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||

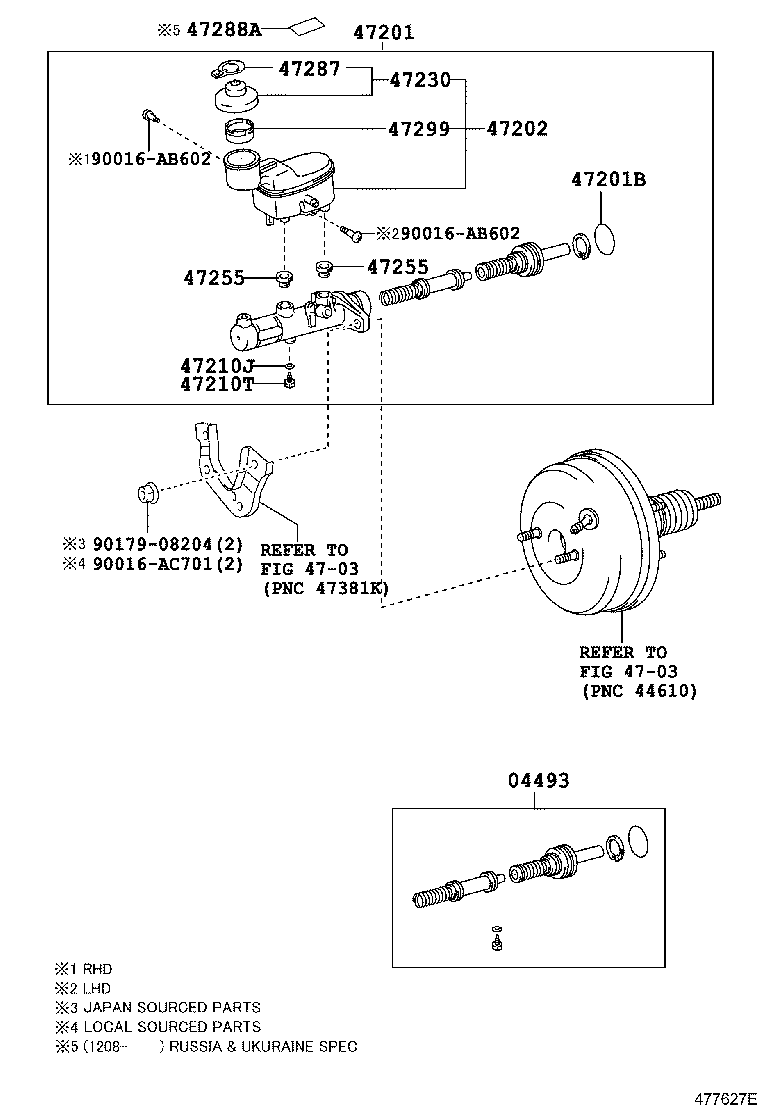

(1107- )THDCB,THSCB,XTR ; (1310- )KUN26..DCB..SR ; (1310- )KUN25,35..DCB,S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-0K010 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-0K172 |
KUN35..XTR..SR;KUN25..THDCB..IV3;KUN25..LHD..(THSCB,XTR);KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH |
1 | ||
| 47201-0K040 |
KUN2#,35..LHD..(THDCB,THSCB,XTR)..5F |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH002 |
KUN35..XTR..SR;KUN25..THSCB,XTR;KUN25..THDCB..IV3;KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH |
1 | ||
| 90016-AH901 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-0K020 |
KUN2#,35..(THDCB,THSCB,XTR)..5F |
1 | ||
| 47220-0K090 |
KUN35..XTR..SR;KUN25..THSCB,XTR;KUN25..THDCB..IV3;KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-0K010 |
KUN2#,35 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90016-AT001 |
KUN35..XTR..SR;KUN25..THSCB,XTR;KUN25..THDCB..IV3;KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH |
2 | ||
| 47255-16010 |
KUN2#,35..THDCB,THSCB,XTR |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90016-AT001 |
KUN35..XTR..SR;KUN25..THSCB,XTR;KUN25..THDCB..IV3;KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH |
2 | ||
| 47255-16010 |
KUN2#,35..THDCB,THSCB,XTR |
2 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
KUN2#,35 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-0K010 |
KUN2#,35 |
1 | ||
| Common parts | ||||
| 90016-AB602 | ||||
| 90016-AC701 | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||
(1107- )
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-0K040 |
KUN2#,35..LHD..(THDCB,THSCB,XTR)..5F |
1 | ||
| 47201-0K172 |
KUN35..XTR..SR;KUN25..THDCB..IV3;KUN25..LHD..(THSCB,XTR);KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH002 |
KUN35..XTR..SR;KUN25..THSCB,XTR;KUN25..THDCB..IV3;KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH |
1 | ||
| 90016-AH901 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 47201C - RING PIN, BRAKE MASTER CYLINDER | ||||
| 90029-15803 |
KUN35..XTR..SR;KUN25..THSCB,XTR;KUN25..THDCB..IV3;KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-0K020 |
KUN2#,35..(THDCB,THSCB,XTR)..5F |
1 | ||
| 47220-0K090 |
KUN35..XTR..SR;KUN25..THSCB,XTR;KUN25..THDCB..IV3;KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-0K010 |
KUN2#,35 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90016-AT001 |
KUN35..XTR..SR;KUN25..THSCB,XTR;KUN25..THDCB..IV3;KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH |
2 | ||
| 47255-16010 |
KUN2#,35..THDCB,THSCB,XTR |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90016-AT001 |
KUN35..XTR..SR;KUN25..THSCB,XTR;KUN25..THDCB..IV3;KUN35..(THDCB,THSCB,XTR)..DLX VSC-WITH |
2 | ||
| 47255-16010 |
KUN2#,35..THDCB,THSCB,XTR |
2 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
KUN2#,35 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-0K010 |
KUN2#,35 |
1 | ||
| Common parts | ||||
| 90016-AC701 | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 4708 | ||||
