KUN25L-CRMDHH (2011)
Toyota Hilux
Production
Nov 2011
-
Apr 2015
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(0507- )KUN2#..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0133 | ||||
| 90170-15001 | ||||
| 90170-T0006 | ||||
| 90178-T0021 | ||||
| 95381-03225 | ||||
ILLUST NO. 2 OF 2(0507- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|

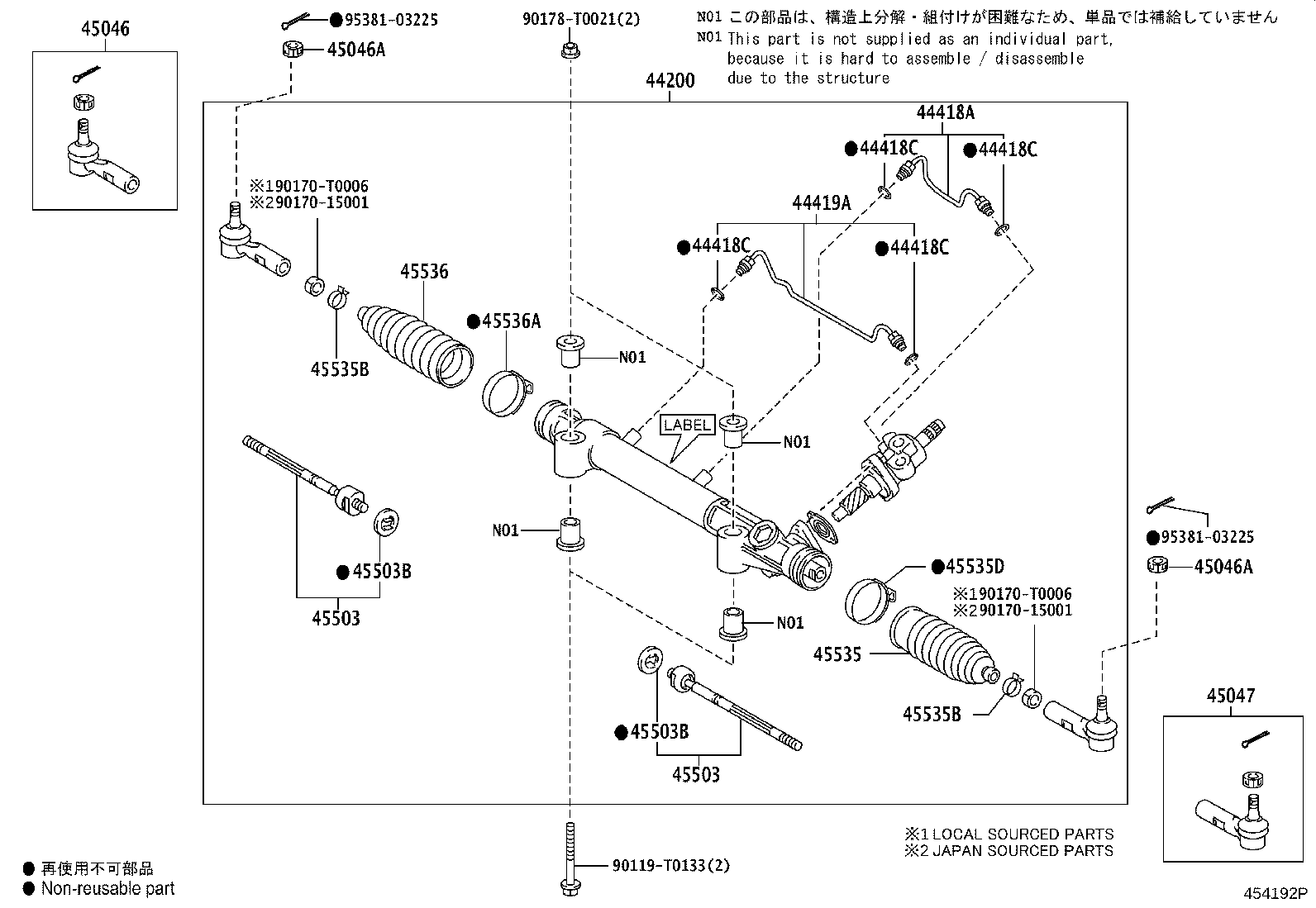

ILLUST NO. 1 OF 2(1107- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-0K230 |
KUN2#,35..LHD..(THDCB,THSCB,XTR) |
1 | ||
| 44200-0K230 |
KUN25..FLD |
1 | ||
| 44200-0K390 |
KUN25..DLX..FLD |
1 | ||
| 44200-0K480 |
KUN25..DLX..FLD |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-0K150 |
KUN2#,35..LHD..(THDCB,THSCB,XTR) |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-0K150 |
KUN2#,35..LHD..(THDCB,THSCB,XTR) |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-09281 |
KUN2#,35 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-T0002 |
KUN2#,35 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-T0002 |
KUN2#,35 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-09281 |
KUN2#,35 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09321 |
KUN2#,35..THDCB,THSCB,XTR |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09321 |
KUN2#,35..THDCB,THSCB,XTR |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-T0001 |
KUN2#,35..THDCB,THSCB,XTR OD=43 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-T0001 |
KUN2#,35..THDCB,THSCB,XTR OD=43 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-0K010 |
KUN2#,35 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-T0004 |
KUN2#,35..THDCB,THSCB,XTR |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-T0004 |
KUN2#,35..THDCB,THSCB,XTR |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-T0001 |
KUN2#,35 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-0K010 |
KUN2#,35 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-T0001 |
KUN2#,35 |
1 | ||
| Common parts | ||||
| 90119-T0133 | ||||
| 90170-15001 | ||||
| 90170-T0006 | ||||
| 90178-T0021 | ||||
| 95381-03225 | ||||

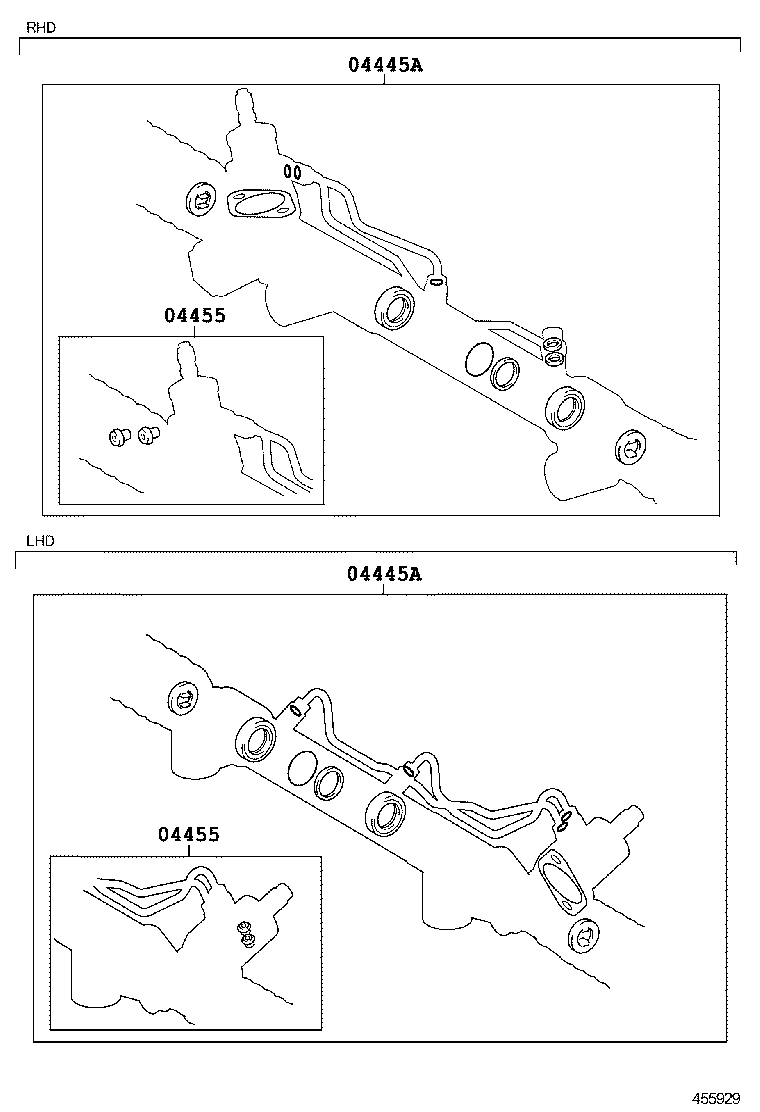

ILLUST NO. 2 OF 2(1107- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-0K131 |
KUN2#,35..LHD..(THDCB,THSCB,XTR) |
1 | ||
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-0K131 |
KUN2#,35..LHD..(THDCB,THSCB,XTR) |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-0K060 |
KUN2#,35 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-0K060 |
KUN2#,35 |
1 | ||
