KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )LHD

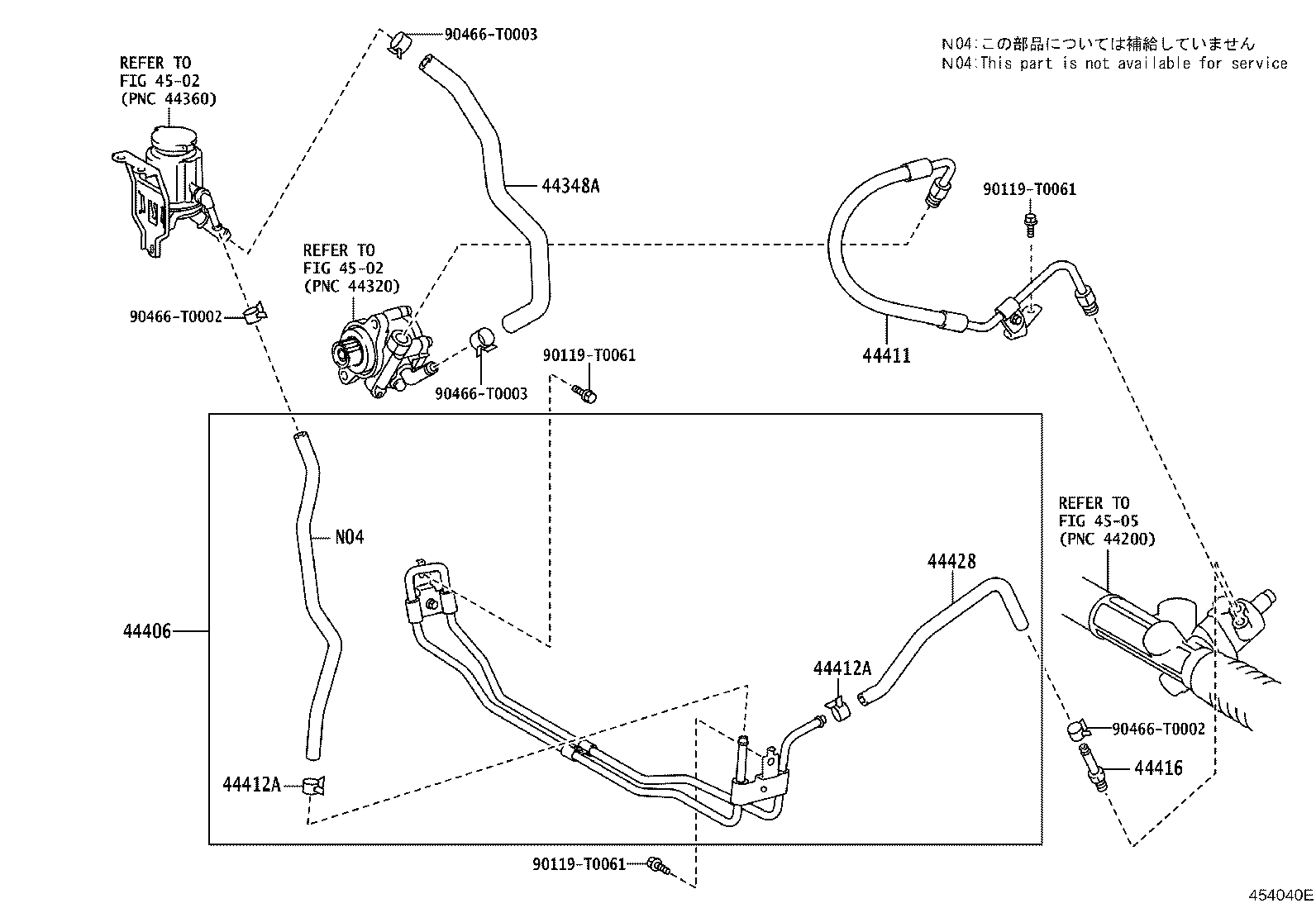

Click highlighted areas on diagram

diagram 44348A 44406 44411 44412A 44412A 44416 44428 4502 4502 4505 90119T0061 90119T0061 90119T0061 90466T0002 90466T0002 90466T0003 90466T0003
Part # Description Qty Price
Common parts
90119-T0061
90466-T0002
90466-T0003
Linked diagrams
4502
4505

(1107- )LHD

Click highlighted areas on diagram

diagram 44348A 44406 44411 44412A 44412A 44416 44428 4502 4502 4505 90119T0061 90119T0061 90119T0061 90466T0002 90466T0002 90466T0003 90466T0003
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-0K010

KUN2#,35

 1
44406 - TUBE SUB-ASSY, RETURN
44406-0K050

KUN2#,35..LHD

 1
44411 - HOSE, PRESSURE FEED
44411-0K030

KUN2#,35..LHD

 1
44412A - CLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)
90466-T0002

KUN2#,35

 2
44412A - CLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)
90466-T0002

KUN2#,35

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-0K010

KUN2#,35

 1
44428 - HOSE, RETURN, NO.2
44428-0K030

KUN2#,35..LHD

 1
Common parts
90119-T0061
90466-T0002
90466-T0003
Linked diagrams
4502
4505
