KUN25L-CRMDHH (2011)
Toyota Hilux
Production
Nov 2011
-
Apr 2015
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

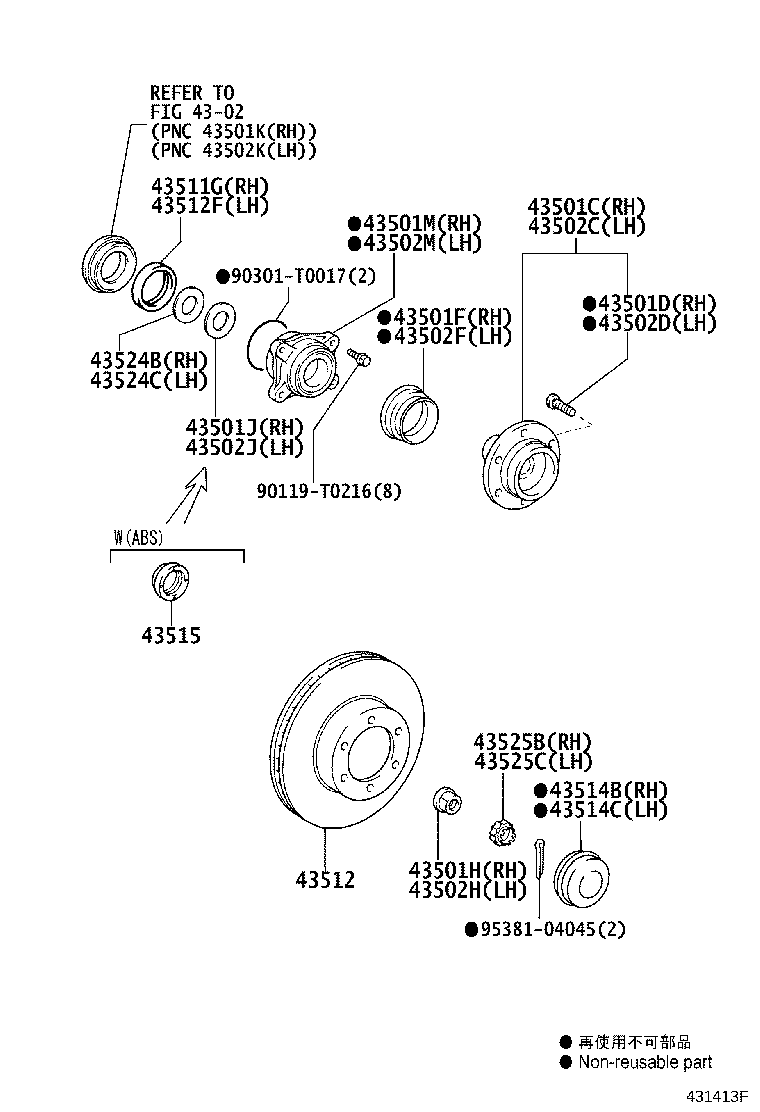

(0507- )KUN2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0216 | ||||
| 90301-T0017 | ||||
| 95381-04045 | ||||
| Linked diagrams | ||||
| 4302 | ||||

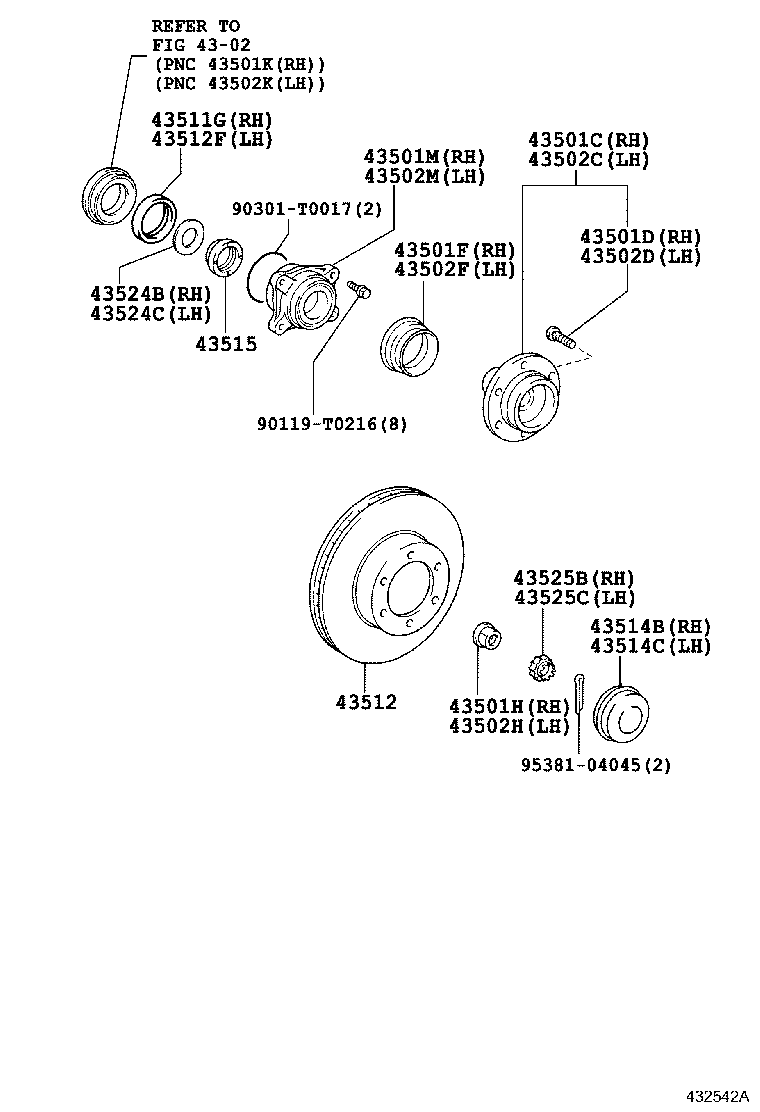

(1107- )KUN2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-0K030 |
KUN2# |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02081 |
KUN2#,35..THDCB,THSCB,XTR |
6 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90312-T0001 |
KUN2#,35 |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90178-28002 |
KUN2# |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90369-T0003 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-0K030 |
KUN2# |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02081 |
KUN2#,35..THDCB,THSCB,XTR |
6 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90312-T0001 |
KUN2#,35 |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90178-28002 |
KUN2# |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90369-T0003 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 43511G - SEAL, OIL (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90316-T0002 |
KUN2# |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-0K060 |
KUN2#,35..THDCB,THSCB,XTR |
2 | ||
| 43512-0K090 |
KUN2#,35..THDCB,THSCB,XTR VSC-WITH |
2 | ||
| 43512-0K090 |
KUN2#,35..THDCB,THSCB,XTR |
2 | ||
| 43512F - SEAL, OIL (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90316-T0002 |
KUN2# |
1 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-0K010 |
KUN2# |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-0K010 |
KUN2# |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-0K020 |
KUN2#,35 |
2 | ||
| 43524B - SPACER, FRONT WHEEL INNER BEARING, RH | ||||
| 43524-0K020 |
KUN2# |
1 | ||
| 43524C - SPACER, FRONT WHEEL INNER BEARING, LH | ||||
| 43524-0K020 |
KUN2# |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-71010 |
KUN2# |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-71010 |
KUN2# |
1 | ||
| Common parts | ||||
| 90119-T0216 | ||||
| 90301-T0017 | ||||
| 95381-04045 | ||||
| Linked diagrams | ||||
| 4302 | ||||
