KUN25L-CRMDHH (2011)
Toyota Hilux
Production
Nov 2011
-
Apr 2015
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )

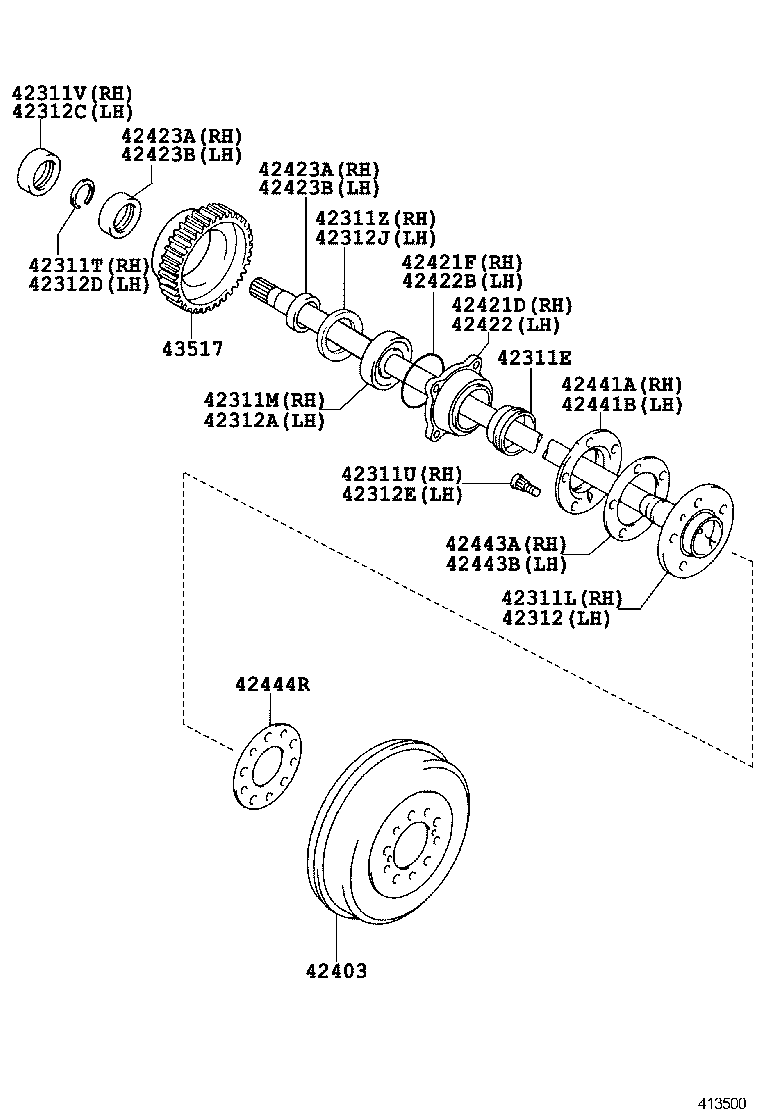

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90313-T0002 |
KUN2#,35 |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-0K090 |
KUN2#,35 |
1 | ||
| 42311M - BEARING (FOR REAR AXLE SHAFT RH) | ||||
| 90366-T0044 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90520-T0033 |
KUN2#,35 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02079 |
KUN2#,35 |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-T0008 |
KUN2#,35 |
1 | ||
| 42311Z - WASHER(FOR REAR AXLE SHAFT RH) | ||||
| 90208-T0001 |
KUN2#,35 |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-0K090 |
KUN2#,35 |
1 | ||
| 42312A - BEARING (FOR REAR AXLE SHAFT LH) | ||||
| 90366-T0044 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-T0008 |
KUN2#,35 |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90520-T0033 |
KUN2#,35 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02079 |
KUN2#,35 |
6 | ||
| 42312J - WASHER (FOR REAR AXLE SHAFT LH) | ||||
| 90208-T0001 |
KUN2#,35 |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-0K120 |
KUN2#,35..THDCB,THSCB,XTR |
2 | ||
| 42421D - CASE, REAR AXLE BEARING, RH | ||||
| 42421-0K030 |
KUN2#,35 |
1 | ||
| 42421F - RING, O (FOR REAR AXLE BEARING CASE RH) | ||||
| 90301-T0043 |
KUN2#,35 |
1 | ||
| 42422 - CASE, REAR AXLE BEARING, LH | ||||
| 42421-0K030 |
KUN2#,35 |
1 | ||
| 42422B - RING, O (FOR REAR AXLE BEARING CASE LH) | ||||
| 90301-T0043 |
KUN2#,35 |
1 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-0K020 |
KUN2#,35..THDCB,THSCB,XTR |
2 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-0K020 |
KUN2#,35..THDCB,THSCB,XTR |
2 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-0K020 |
KUN2#,35..THDCB,THSCB,XTR |
2 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-0K020 |
KUN2#,35..THDCB,THSCB,XTR |
2 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-0K041 |
KUN2#,35 |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-0K041 |
KUN2#,35 |
1 | ||
| 42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH | ||||
| 42443-55020 |
KUN2#,35 |
1 | ||
| 42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH | ||||
| 42443-55020 |
KUN2#,35 |
1 | ||
| 42444R - GASKET, BRAKE DRUM (FOR REAR AXLE) | ||||
| 42444-35050 |
KUN2#,35 |
2 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-71010 |
KUN2#,35 |
2 | ||
