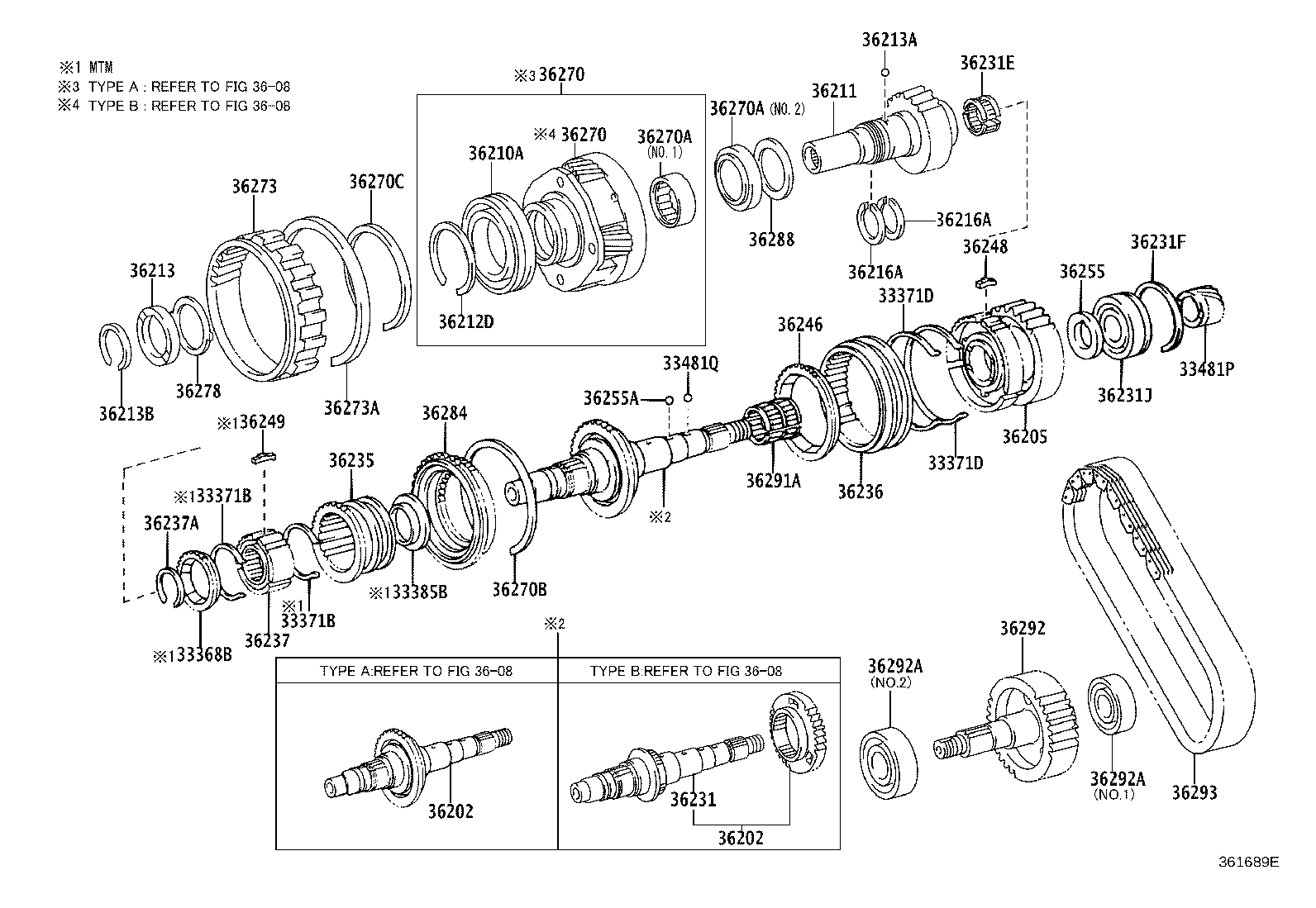

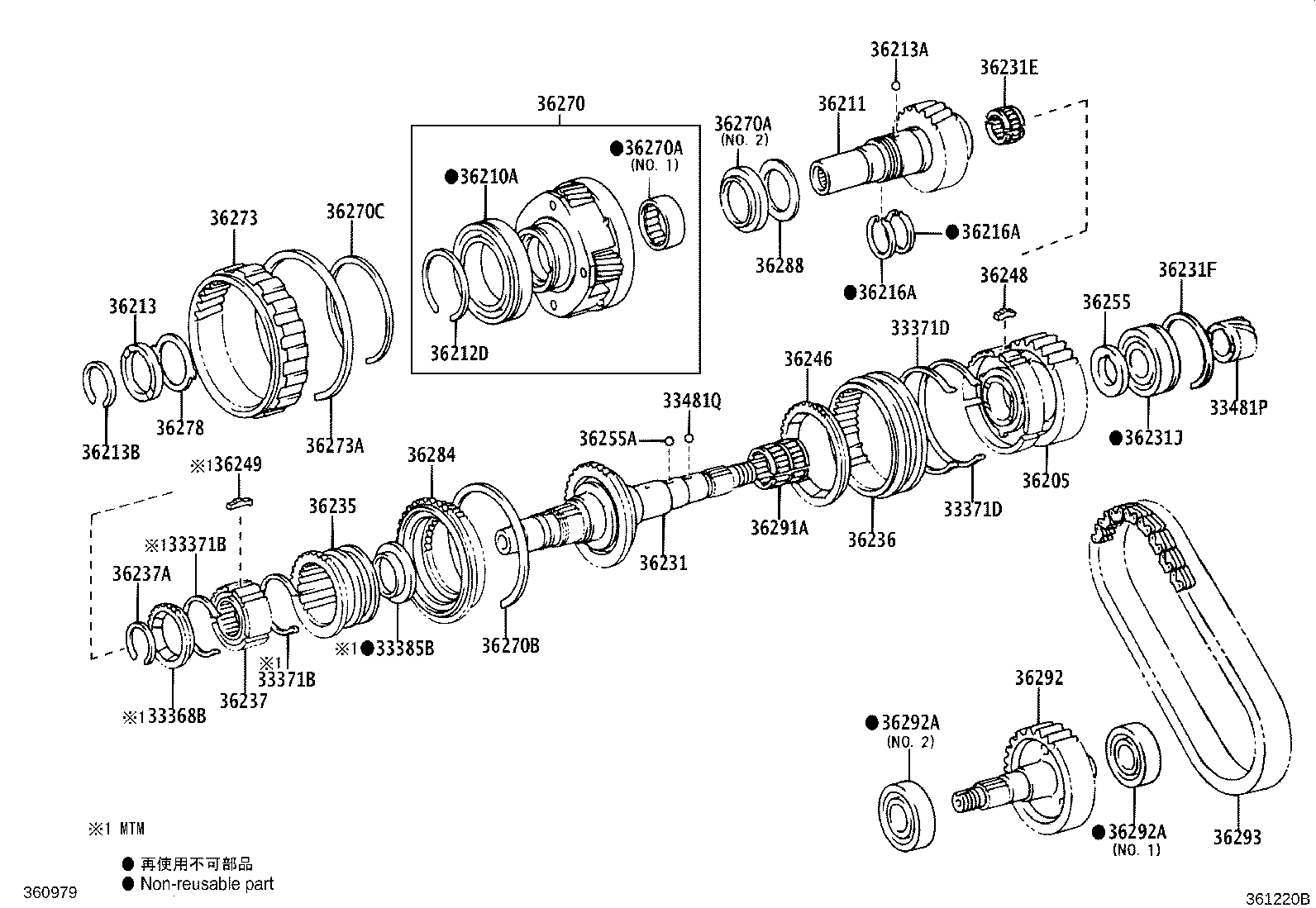

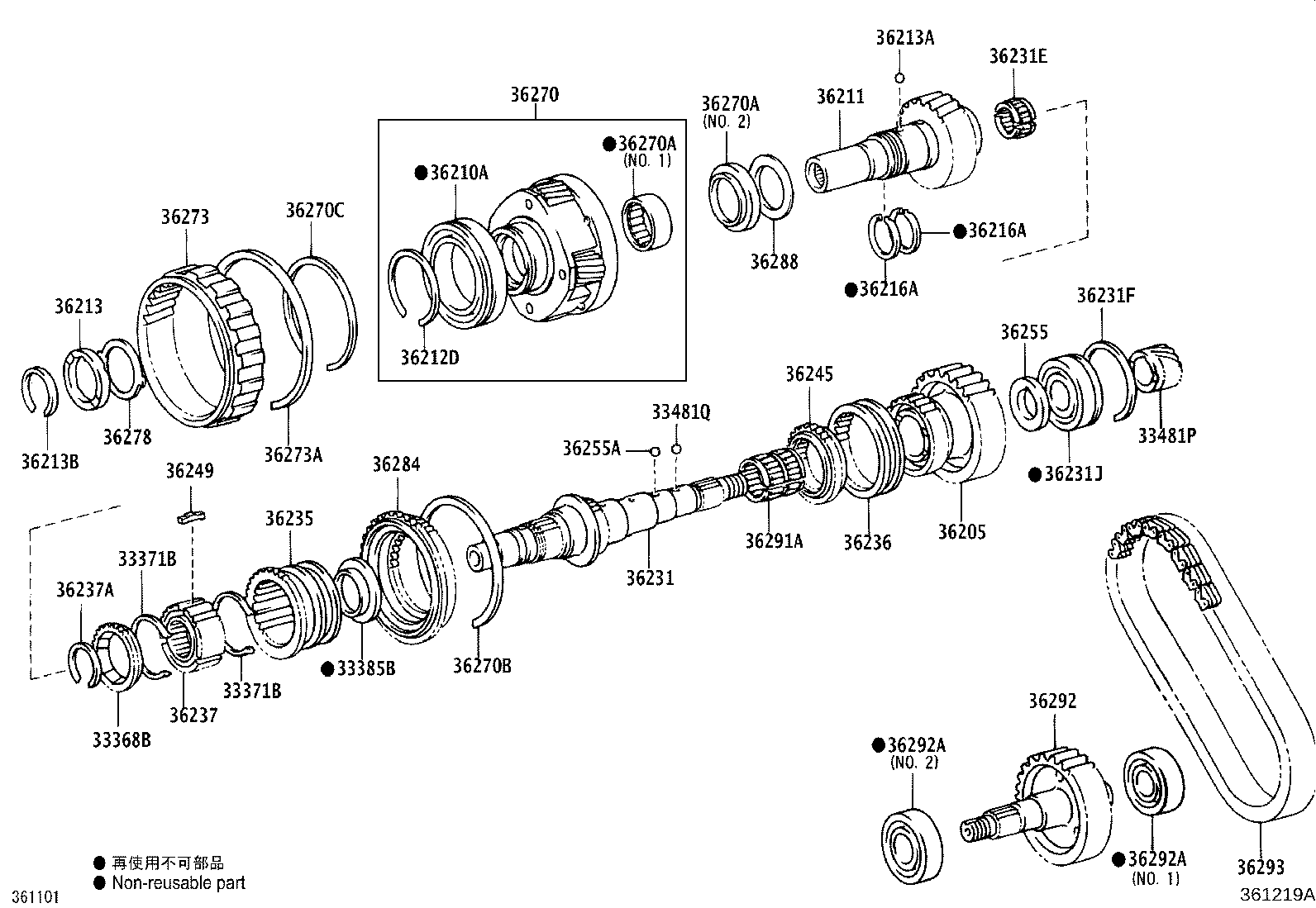

KUN25L-CRMDHH (2011)
Toyota Hilux
(0507- )KUN25..DLX
| Part # | Description | Qty | Price |
|---|
(0507- )KUN2#
W(AUTOMATIC DISCONNECTING DIFF)
| Part # | Description | Qty | Price |
|---|
(1107- )KUN2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33368B - RING, SYNCHRONIZER (FOR TRANSFER FRONT DRIVE CLUTCH) | ||||
| 33367-14010 |
KUN2#..5F TYPE B:REFER 36-08 |
1 | ||
| 33367-14010 |
KUN2#..5F TYPE A:REFER 36-08 |
1 | ||
| 33371B - SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER) | ||||
| 33371-14010 |
KUN2#..5F TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
2 | ||
| 33371B - SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER) | ||||
| 33371-14010 |
KUN2#..5F TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
2 | ||
| 33371D - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER) | ||||
| 33371-36030 |
KUN2# TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
2 | ||
| 33371D - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER) | ||||
| 33371-36030 |
KUN2# TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
2 | ||
| 33385B - RETAINER, SHIFTING KEY (FOR TRANSFER FRONT DRIVE CLUTCH | ||||
| 33385-35010 |
KUN2#..5F TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
1 | ||
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-35200 |
KUN25..DLX N=11,TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
1 | ||
| 33481Q - KEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER) | ||||
| 90360-05012 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 90360-05012 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36202 - SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR | ||||
| 36202-71010 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36202-0K010 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36202 - SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR | ||||
| 36202-71010 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36202-0K010 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36205 - SPROCKET SUB-ASSY, TRANSFER DRIVE | ||||
| 36205-0K030 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36205-35081 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36210A - BEARING (FOR TRANSFER INPUT SHAFT) | ||||
| 90363-75001 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 90363-75001 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36201-71020 |
KUN2#..5F TYPE A:REFER 36-08 |
1 | ||
| 36212D - RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) | ||||
| 90520-72001 |
KUN2# T=1.45,MARK 1,TYPE B:REFER 36-08 |
1 | ||
| 90520-72005 |
KUN2# T=1.65,MARK 5,TYPE B:REFER 36-08 |
1 | ||
| 90520-72002 |
KUN2# T=1.50,MARK 2,TYPE B:REFER 36-08 |
1 | ||
| 90520-72004 |
KUN2# T=1.60,MARK 4,TYPE B:REFER 36-08 |
1 | ||
| 90520-72003 |
KUN2# T=1.55,MARK 3,TYPE B:REFER 36-08 |
1 | ||
| 90520-72002 |
KUN2# T=1.50,MARK 2,TYPE A:REFER 36-08 |
1 | ||
| 90520-72001 |
KUN2# T=1.45,MARK 1,TYPE A:REFER 36-08 |
1 | ||
| 90520-72005 |
KUN2# T=1.65,MARK 5,TYPE A:REFER 36-08 |
1 | ||
| 90520-72003 |
KUN2# T=1.55,MARK 3,TYPE A:REFER 36-08 |
1 | ||
| 90520-72004 |
KUN2# T=1.60,MARK 4,TYPE A:REFER 36-08 |
1 | ||
| 36213 - STOPPER, TRANSFER INPUT GEAR | ||||
| 36213-35020 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36213-35020 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36213A - BALL (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90360-05012 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 90360-05012 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36213B - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90520-44007 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.30-2.35,TYPE B:REFER 36-08 |
1 | ||
| 90520-44012 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.55-2.60,TYPE B:REFER 36-08 |
1 | ||
| 90520-44010 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.45-2.50,TYPE B:REFER 36-08 |
1 | ||
| 90520-44004 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.15-2.20,TYPE B:REFER 36-08 |
1 | ||
| 90520-44008 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.35-2.40,TYPE B:REFER 36-08 |
1 | ||
| 90520-44014 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.65-2.70,TYPE B:REFER 36-08 |
1 | ||
| 90520-44009 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.40-2.45,TYPE B:REFER 36-08 |
1 | ||
| 90520-44015 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.70-2.75,TYPE B:REFER 36-08 |
1 | ||
| 90520-44006 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.25-2.30,TYPE B:REFER 36-08 |
1 | ||
| 90520-44011 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.50-2.55,TYPE B:REFER 36-08 |
1 | ||
| 90520-44016 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.75-2.80,TYPE B:REFER 36-08 |
1 | ||
| 90520-44019 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.90-2.95,TYPE B:REFER 36-08 |
1 | ||
| 90520-44005 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.20-2.25,TYPE B:REFER 36-08 |
1 | ||
| 90520-44003 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.10-2.15,TYPE B:REFER 36-08 |
1 | ||
| 90520-44017 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.80-2.85,TYPE B:REFER 36-08 |
1 | ||
| 90520-44021 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=3.00-3.05,TYPE B:REFER 36-08 |
1 | ||
| 90520-44013 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.60-2.65,TYPE B:REFER 36-08 |
1 | ||
| 90520-44018 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.85-2.90,TYPE B:REFER 36-08 |
1 | ||
| 90520-44020 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.95-3.00,TYPE B:REFER 36-08 |
1 | ||
| 90520-44007 |
KUN2# T=2.30-2.35,TYPE A:REFER 36-08 |
1 | ||
| 90520-44004 |
KUN2# T=2.15-2.20,TYPE A:REFER 36-08 |
1 | ||
| 90520-44017 |
KUN2# T=2.80-2.85,TYPE A:REFER 36-08 |
1 | ||
| 90520-44012 |
KUN2# T=2.55-2.60,TYPE A:REFER 36-08 |
1 | ||
| 90520-44015 |
KUN2# T=2.70-2.75,TYPE A:REFER 36-08 |
1 | ||
| 90520-44014 |
KUN2# T=2.65-2.70,TYPE A:REFER 36-08 |
1 | ||
| 90520-44003 |
KUN2# T=2.10-2.15,TYPE A:REFER 36-08 |
1 | ||
| 90520-44005 |
KUN2# T=2.20-2.25,TYPE A:REFER 36-08 |
1 | ||
| 90520-44011 |
KUN2# T=2.50-2.55,TYPE A:REFER 36-08 |
1 | ||
| 90520-44006 |
KUN2# T=2.25-2.30,TYPE A:REFER 36-08 |
1 | ||
| 90520-44008 |
KUN2# T=2.35-2.40,TYPE A:REFER 36-08 |
1 | ||
| 90520-44016 |
KUN2# T=2.75-2.80,TYPE A:REFER 36-08 |
1 | ||
| 90520-44013 |
KUN2# T=2.60-2.65,TYPE A:REFER 36-08 |
1 | ||
| 90520-44009 |
KUN2# T=2.40-2.45,TYPE A:REFER 36-08 |
1 | ||
| 90520-44019 |
KUN2# T=2.90-2.95,TYPE A:REFER 36-08 |
1 | ||
| 90520-44021 |
KUN2# T=3.00-3.05,TYPE A:REFER 36-08 |
1 | ||
| 90520-44010 |
KUN2# T=2.45-2.50,TYPE A:REFER 36-08 |
1 | ||
| 90520-44018 |
KUN2# T=2.85-2.90,TYPE A:REFER 36-08 |
1 | ||
| 90520-44020 |
KUN2# T=2.95-3.00,TYPE A:REFER 36-08 |
1 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35012 |
KUN2# TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
2 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35012 |
KUN2# TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
2 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36231-0K020 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-28004 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 90364-28004 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-71221 |
KUN2# T=1.65,ID=71.1,TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-32006 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 90363-32006 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-35021 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36235-35021 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36235-35022 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-35050 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36236-35050 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-35030 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36237-35030 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36237A - RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB) | ||||
| 90520-39005 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.15-2.20,MARK B,TYPE B:REFER 36-08 |
1 | ||
| 90520-39007 |
KUN2# T=2.25-2.30,MARK D,TYPE A:REFER 36-08 |
1 | ||
| 90520-39004 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.10-2.15,MARK A,TYPE B:REFER 36-08 |
1 | ||
| 90520-39010 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.40-2.45,MARK G,TYPE B:REFER 36-08 |
1 | ||
| 90520-39006 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.20-2.25,MARK C,TYPE B:REFER 36-08 |
1 | ||
| 90520-39009 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.35-2.40,MARK F,TYPE B:REFER 36-08 |
1 | ||
| 90520-39012 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.50-2.55,MARK J,TYPE B:REFER 36-08 |
1 | ||
| 90520-39007 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.25-2.30,MARK D,TYPE B:REFER 36-08 |
1 | ||
| 90520-39011 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.45-2.50,MARK H,TYPE B:REFER 36-08 |
1 | ||
| 90520-39013 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.00-2.05,MARK K,TYPE B:REFER 36-08 |
1 | ||
| 90520-39014 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.05-2.10,MARK L,TYPE B:REFER 36-08 |
1 | ||
| 90520-39008 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR T=2.30-2.35,MARK E,TYPE B:REFER 36-08 |
1 | ||
| 90520-39006 |
KUN2# T=2.20-2.25,MARK C,TYPE A:REFER 36-08 |
1 | ||
| 90520-39005 |
KUN2# T=2.15-2.20,MARK B,TYPE A:REFER 36-08 |
1 | ||
| 90520-39004 |
KUN2# T=2.10-2.15,MARK A,TYPE A:REFER 36-08 |
1 | ||
| 90520-39013 |
KUN2# T=2.00-2.05,MARK K,TYPE A:REFER 36-08 |
1 | ||
| 90520-39010 |
KUN2# T=2.40-2.45,MARK G,TYPE A:REFER 36-08 |
1 | ||
| 90520-99078 |
KUN2# T=6.0,TYPE B:REFER 36-08 |
1 | ||
| 90520-39011 |
KUN2# T=2.45-2.50,MARK H,TYPE A:REFER 36-08 |
1 | ||
| 90520-39012 |
KUN2# T=2.50-2.55,MARK J,TYPE A:REFER 36-08 |
1 | ||
| 90520-39009 |
KUN2# T=2.35-2.40,MARK F,TYPE A:REFER 36-08 |
1 | ||
| 90520-39008 |
KUN2# T=2.30-2.35,MARK E,TYPE A:REFER 36-08 |
1 | ||
| 90520-39014 |
KUN2# T=2.05-2.10,MARK L,TYPE A:REFER 36-08 |
1 | ||
| 36246 - RING, TRANSFER FRONT DRIVE SYNCHRONIZER | ||||
| 36246-35060 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36246-35060 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36248 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1 | ||||
| 36248-35031 |
KUN2# TYPE B:REFER 36-08 |
3 | ||
| 36248-35031 |
KUN2# TYPE A:REFER 36-08 |
3 | ||
| 36249 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2 | ||||
| 36249-35030 |
KUN2#..5F TYPE B:REFER 36-08 |
3 | ||
| 36249-35030 |
KUN2#..5F TYPE A:REFER 36-08 |
3 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-35020 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36255-35020 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36255A - BALL (FOR TRANSFER OUTPUT SHAFT SPACER) | ||||
| 90360-05012 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 90360-05012 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36270 - GEAR ASSY, TRANSFER LOW PLANETARY | ||||
| 36270-35900 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36270-0K020 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36270 - GEAR ASSY, TRANSFER LOW PLANETARY | ||||
| 36270-0K020 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36270-35900 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90374-49001 |
KUN2# T/P B:SEE 36-08,NO.2 |
1 | ||
| 90364-47001 |
KUN2# T/P A:SEE 36-08,NO.1 |
1 | ||
| 90364-47001 |
KUN2# T/P B:SEE 36-08,NO.1 |
1 | ||
| 90374-49001 |
KUN2# T/P A:SEE 36-08,NO.2 |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90374-49001 |
KUN2# T/P B:SEE 36-08,NO.2 |
1 | ||
| 90364-47001 |
KUN2# T/P A:SEE 36-08,NO.1 |
1 | ||
| 90364-47001 |
KUN2# T/P B:SEE 36-08,NO.1 |
1 | ||
| 90374-49001 |
KUN2# T/P A:SEE 36-08,NO.2 |
1 | ||
| 36270B - RING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90521-99056 |
KUN2# T=1.8,TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
1 | ||
| 36270C - RING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARIN | ||||
| 90520-99072 |
KUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR TYPE B:REFER 36-08 |
1 | ||
| 90520-99072 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36273 - GEAR, TRANSFER LOW PLANETARY RING | ||||
| 36273-35030 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36273-0K010 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36273A - RING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR) | ||||
| 90520-99078 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36278 - WASHER, MANUAL TRANSFER PLANETARY CARRIER | ||||
| 36278-35020 |
KUN2# T=0.95-1.05,TYPE B:REFER 36-08 |
1 | ||
| 36278-35020 |
KUN2# T=0.95-1.05,TYPE A:REFER 36-08 |
1 | ||
| 36284 - PIECE, TRANSFER LOW PLANETARY GEAR SPLINE | ||||
| 36284-0K020 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36284-35021 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36288 - RACE, TRANSFER THRUST BEARING, NO.1 | ||||
| 36288-28010 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36288-28010 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36291A - BEARING (FOR TRANSFER DRIVE SPROCKET) | ||||
| 90364-37013 |
KUN2# TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
1 | ||
| 36292 - SPROCKET, TRANSFER DRIVEN | ||||
| 36292-35050 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36292-0K010 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-32037 |
KUN2# T/P B:SEE 36-08,NO.2 |
1 | ||
| 90363-32037 |
KUN2# T/P A:SEE 36-08,NO.2 |
1 | ||
| 90363-28004 |
KUN2# (J),NO.1 |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-32037 |
KUN2# T/P B:SEE 36-08,NO.2 |
1 | ||
| 90363-32037 |
KUN2# T/P A:SEE 36-08,NO.2 |
1 | ||
| 90363-28004 |
KUN2# (J),NO.1 |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| 36293-35040 |
KUN2# TYPE A:REFER 36-08 |
1 | ||
| 36293-35040 |
KUN2# TYPE B:REFER 36-08 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
