KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )5F

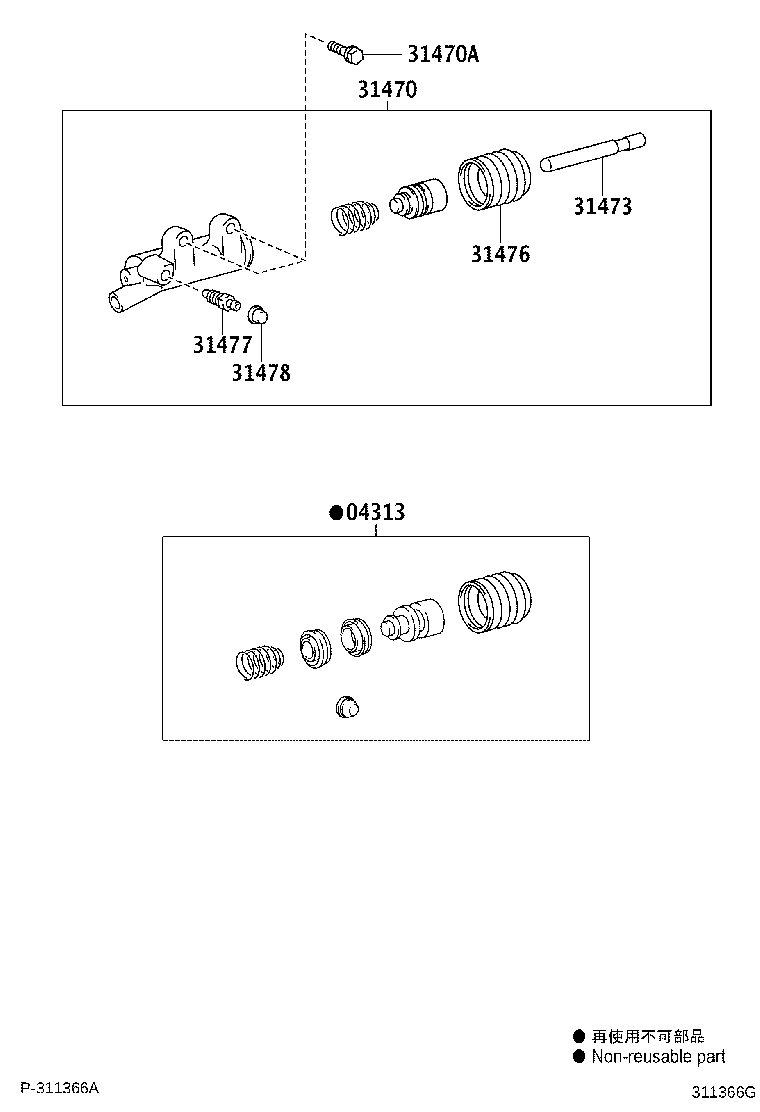

Click highlighted areas on diagram

diagram 04313 31470 31470A 31473 31476 31477 31478
Part # Description Qty Price

(1107- )5F

Click highlighted areas on diagram

diagram 04313 31470 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-0K040

KUN2#,35..5F

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-0K030

KUN2#,35..5F

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
90119-T0221

KUN2#,35..5F

*8-1.25PX25-20.1

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-04010

KUN2#,35..5F

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-04010

KUN2#,35..5F

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

KUN2#,35..5F

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

KUN2#,35..5F

 1
