KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

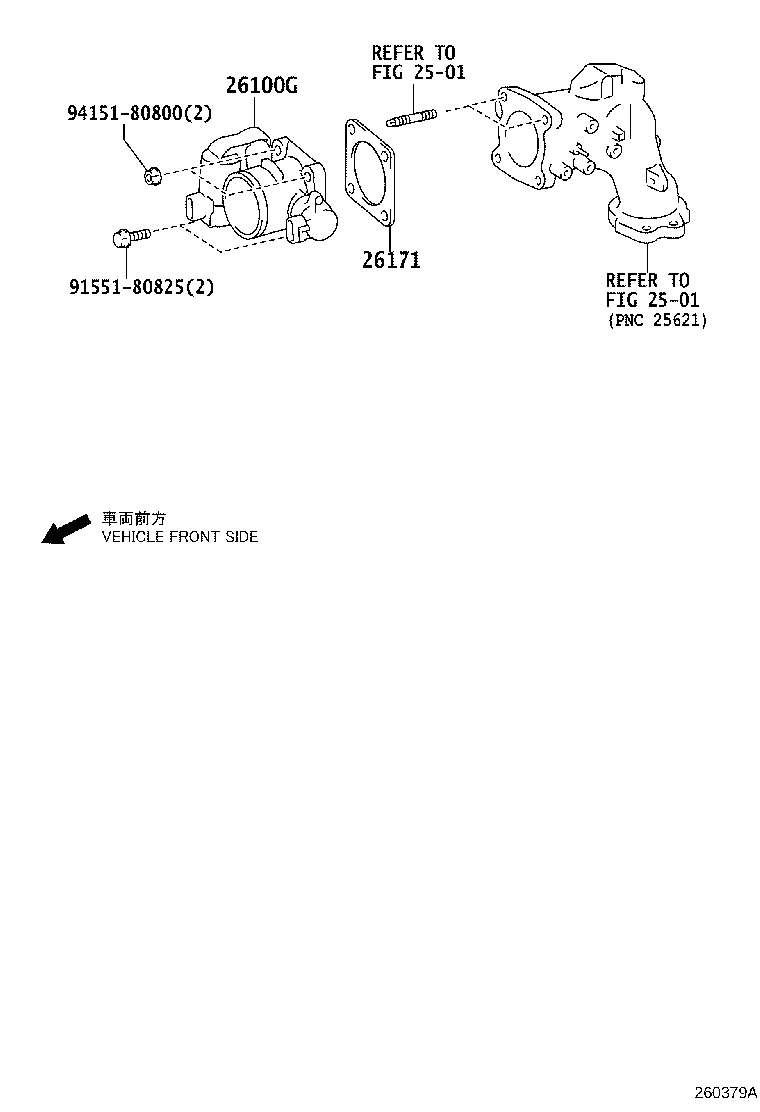

Click highlighted areas on diagram

diagram 2501 2501 26100G 26171 9155180825 9415180800
Part # Description Qty Price
26100G - BODY ASSY, DIESEL THROTTLE
26100-30080

1KDFTV,2KDFTV..KUN2#,35

 1
26171 - GASKET, VENTURI
26171-30020

1KDFTV,2KDFTV..KUN2#,35

 1
Common parts
91551-80825
94151-80800
Linked diagrams
2501
