KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

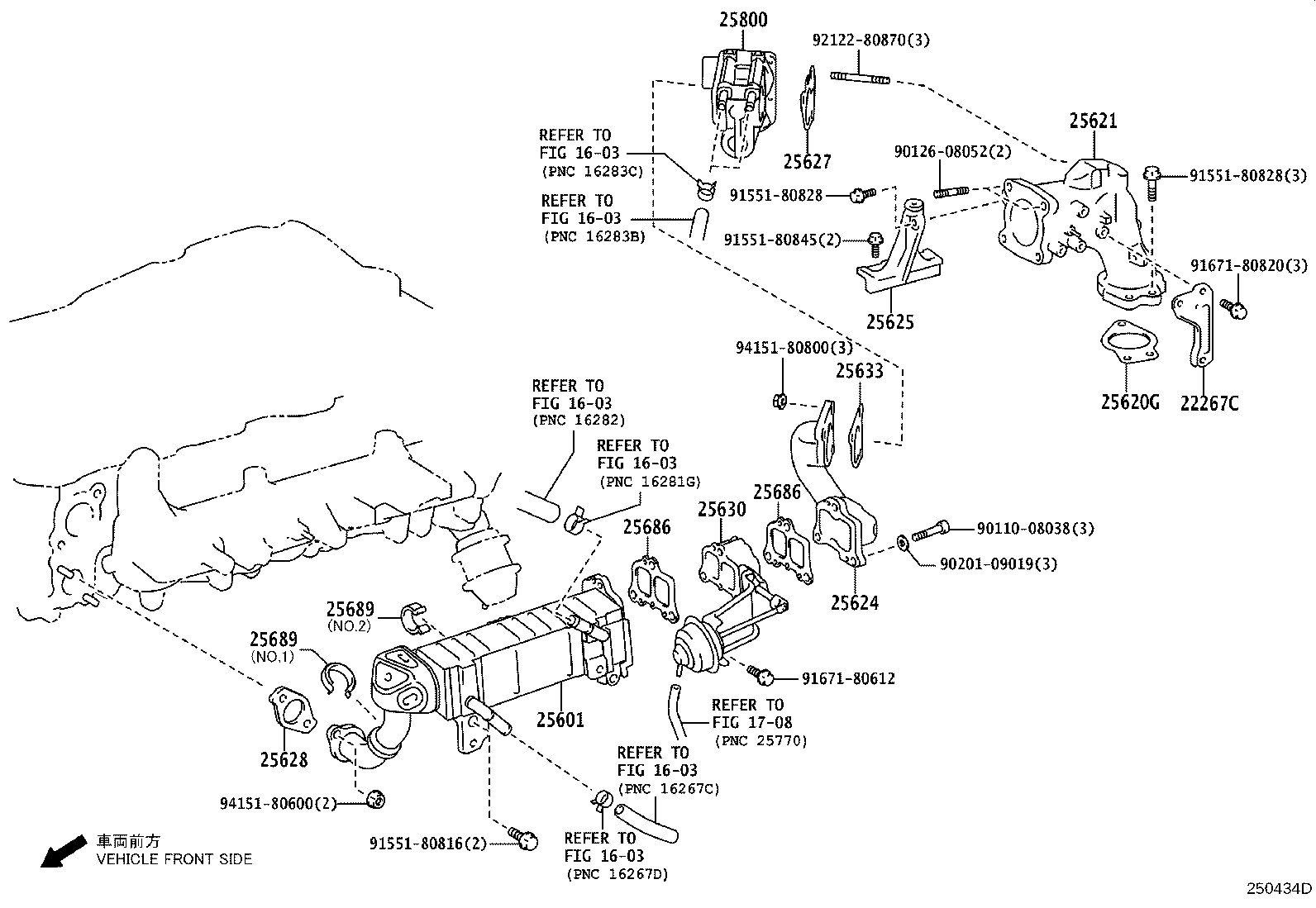

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1708 22267C 25601 25620G 25621 25624 25625 25627 25628 25630 25633 25686 25686 25689 25689 25800 9011008038 9012608052 9020109019 9155180816 9155180828 9155180828 9155180845 9167180612 9167180820 9212280870 9415180600 9415180800
Part # Description Qty Price
22267C - BRACKET, THROTTLE BODY
22267-30040

1KDFTV,2KDFTV..KUN2#,35

 1
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-30130

1KDFTV,2KDFTV..KUN2#,35

 1
25620G - GASKET, DIESEL THROTTLE
26171-30050

1KDFTV,2KDFTV..KUN2#,35

 1
25621 - CONNECTOR, INTAKE AIR(FOR GASKET)
17861-30130

1KDFTV,2KDFTV..KUN2#,35

 1
25624 - ADAPTER, EGR VALVE
25611-30050

1KDFTV,2KDFTV..KUN2#,35

 1
25625 - BRACKET, EGR VALVE
26175-30020

1KDFTV,2KDFTV..KUN2#,35

 1
25627 - GASKET, EGR VALVE
25627-30070

1KDFTV,2KDFTV..KUN2#,35

 1
25628 - GASKET, EGR INLET
25628-30031

1KDFTV,2KDFTV..KUN2#,35

 1
25630 - VALVE ASSY, EGR, NO.2
25630-30060

1KDFTV,2KDFTV..KUN2#,35

 1
25633 - GASKET, EGR VALVE
25633-26020

1KDFTV,2KDFTV..KUN2#,35

 1
25686 - GASKET, EGR COOLER, NO.2
25686-30020

1KDFTV,2KDFTV..KUN2#,35

 2
25686 - GASKET, EGR COOLER, NO.2
25686-30020

1KDFTV,2KDFTV..KUN2#,35

 2
25689 - INSULATOR, EGR COOLER
25689-30010

1KDFTV,2KDFTV..KUN2#,35

NO.1

 1
25699-30010

1KDFTV,2KDFTV..KUN2#,35

NO.2

 1
25689 - INSULATOR, EGR COOLER
25689-30010

1KDFTV,2KDFTV..KUN2#,35

NO.1

 1
25699-30010

1KDFTV,2KDFTV..KUN2#,35

NO.2

 1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-30200

1KDFTV,2KDFTV..KUN2#,35

 1
Common parts
90110-08038
90126-08052
90201-09019
91551-80816
91551-80828
91551-80845
91671-80612
91671-80820
92122-80870
94151-80600
94151-80800
