KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )2KDFTV..KUN25..LHD..XTR

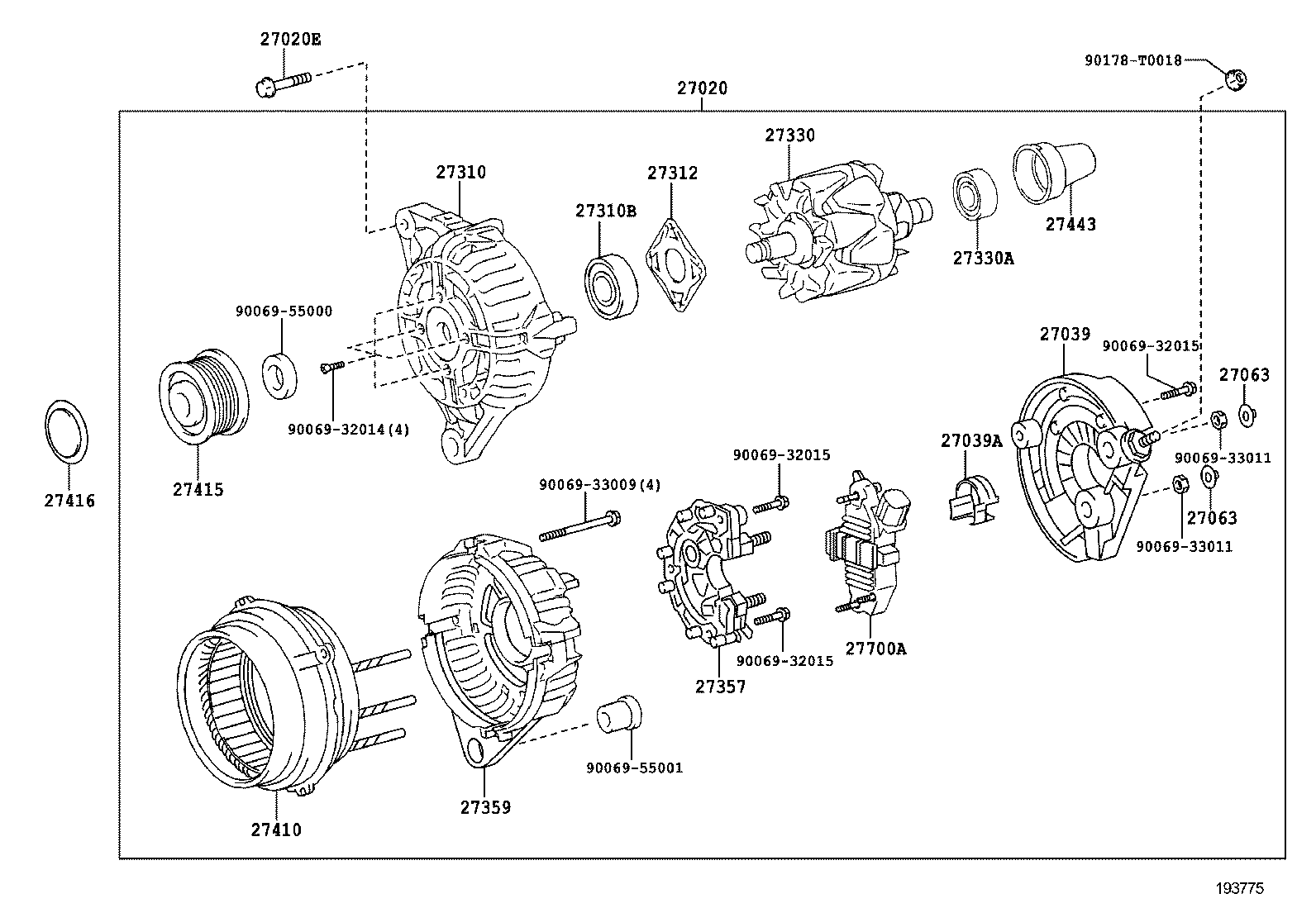

Click highlighted areas on diagram

12V 80A(BOSCH)

diagram 27020 27020E 27039 27039A 27063 27063 27310 27310B 27312 27330 27330A 27357 27359 27410 27415 27416 27443 27700A 9006932014 9006932015 9006932015 9006932015 9006933009 9006933011 9006933011 9006955000 9006955001 90178T0018
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0L100

2KDFTV..KUN25..LHD..XTR

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-T0074

1KDFTV,2KDFTV..KUN2#,35

 1
27039 - COVER, ALTERNATOR REAR END
27039-0L030

2KDFTV..KUN25..LHD..XTR

 1
27039A - COVER, ALTERNATOR REAR END, NO.2
27041-0L030

2KDFTV..KUN25..LHD..XTR

 2
27063 - COVER SUB-ASSY, ALTERNATOR
27063-0L030

2KDFTV..KUN25..LHD..XTR

 1
27063 - COVER SUB-ASSY, ALTERNATOR
27063-0L030

2KDFTV..KUN25..LHD..XTR

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0L030

2KDFTV..KUN25..LHD..XTR

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90069-40000

2KDFTV..KUN25..LHD..XTR

 1
27312 - PLATE, RETAINER
27312-0L030

2KDFTV..KUN25..LHD..XTR

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0L050

2KDFTV..KUN25..LHD..XTR;1KDFTV,2KDFTV..KUN2#,35..DCB,SCB

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90069-40002

2KDFTV..KUN25..LHD..XTR

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-0L050

2KDFTV..KUN25..LHD..XTR;1KDFTV,2KDFTV..KUN2#,35..DCB,SCB

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-0L030

2KDFTV..KUN25..LHD..XTR

 1
27410 - STATOR ASSY, ALTERNATOR
27410-0L040

2KDFTV..KUN25..LHD..XTR

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0L040

2KDFTV..KUN25..LHD..XTR;1KDFTV,2KDFTV..KUN2#,35..DCB,SCB

 1
27416 - CAP, ALTERNATOR PULLEY
27416-33010

2KDFTV..KUN25..LHD..XTR;1KDFTV,2KDFTV..KUN2#,35..DCB,SCB

 1
27443 - COVER, ALTERNATOR BEARING
27443-0L030

2KDFTV..KUN25..LHD..XTR

 1
27700A - REGULATOR ASSY, GENERATOR
27700-0D020

2KDFTV..KUN25..LHD..XTR;1KDFTV,2KDFTV..KUN2#,35..DCB,SCB

 1
Common parts
90069-32014
90069-32015
90069-33009
90069-33011
90069-55000
90069-55001
90178-T0018
