KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )2KDFTV

Click highlighted areas on diagram

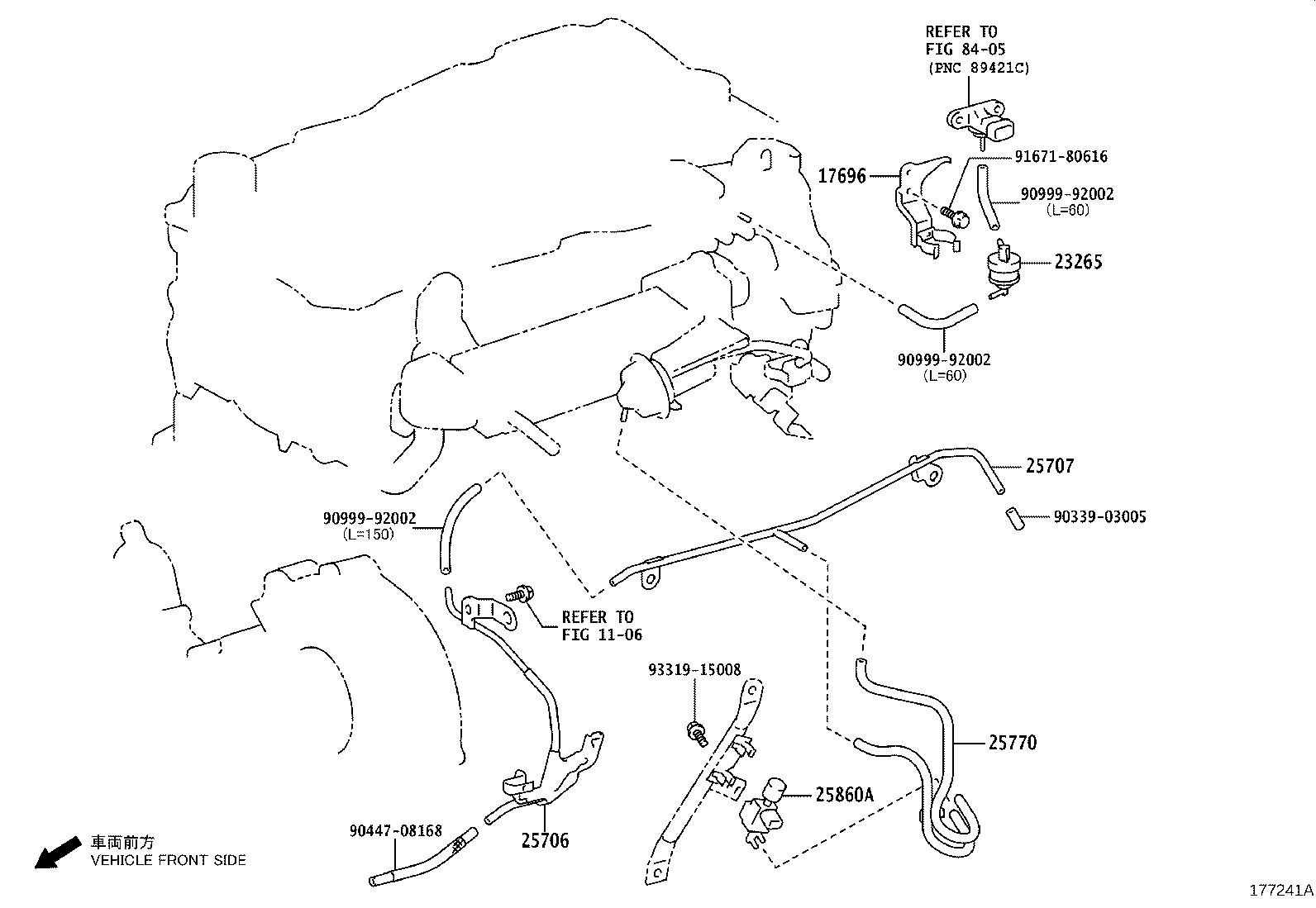

diagram 1106 17696 23265 25706 25707 25770 25860A 8405 9033903005 9044708168 9099992002 9099992002 9099992002 9167180616 9331915008
Part # Description Qty Price
17696 - BRACKET, GAS FILTER
17696-30050

1KDFTV,2KDFTV..KUN2#,35

 1
23265 - FILTER, GAS, NO.1
90917-11044

1KDFTV,2KDFTV..KUN2#,35

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-30070

1KDFTV,2KDFTV..KUN2#,35

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-30020

1KDFTV,2KDFTV..KUN2#,35

 1
25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770-30070

1KDFTV,2KDFTV..KUN2#,35

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12093

1KDFTV,2KDFTV..KUN2#,35

 1
Common parts
90339-03005
90447-08168
90999-92002
91671-80616
93319-15008
Linked diagrams
1106
8405
