KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1107- )1KDFTV,2KDFTV..THDCB,THSCB,XTR

Click highlighted areas on diagram

diagram 1701 17080 17705 17750 17801 17878 17881 17881A 17881A 22204 9009900289 90119T0286 90119T0334 9046733031 90480T0002
Part # Description Qty Price
17080 - CLEANER ASSY, AIR W/AIR FLOW METER
17080-0L190

1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB,XTR

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0L220

1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB,XTR

 1
17750 - COVER ASSY, AIR CLEANER INLET, SEAL
17751-0L010

1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB,XTR

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0C010

1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB,XTR

 1
17878 - PIPE, INTAKE AIR CONNECTOR, NO.3
17878-0L040

1KDFTV,2KDFTV..KUN2#,35

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0L180

1KDFTV,2KDFTV..KUN2#,35

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0005

1KDFTV,2KDFTV..KUN2#,35

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0005

1KDFTV,2KDFTV..KUN2#,35

 2
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-30020

1KDFTV,2KDFTV..KUN2#,35

 1
Common parts
90099-00289
90119-T0286
90119-T0334
90467-33031
90480-T0002
Linked diagrams
1701

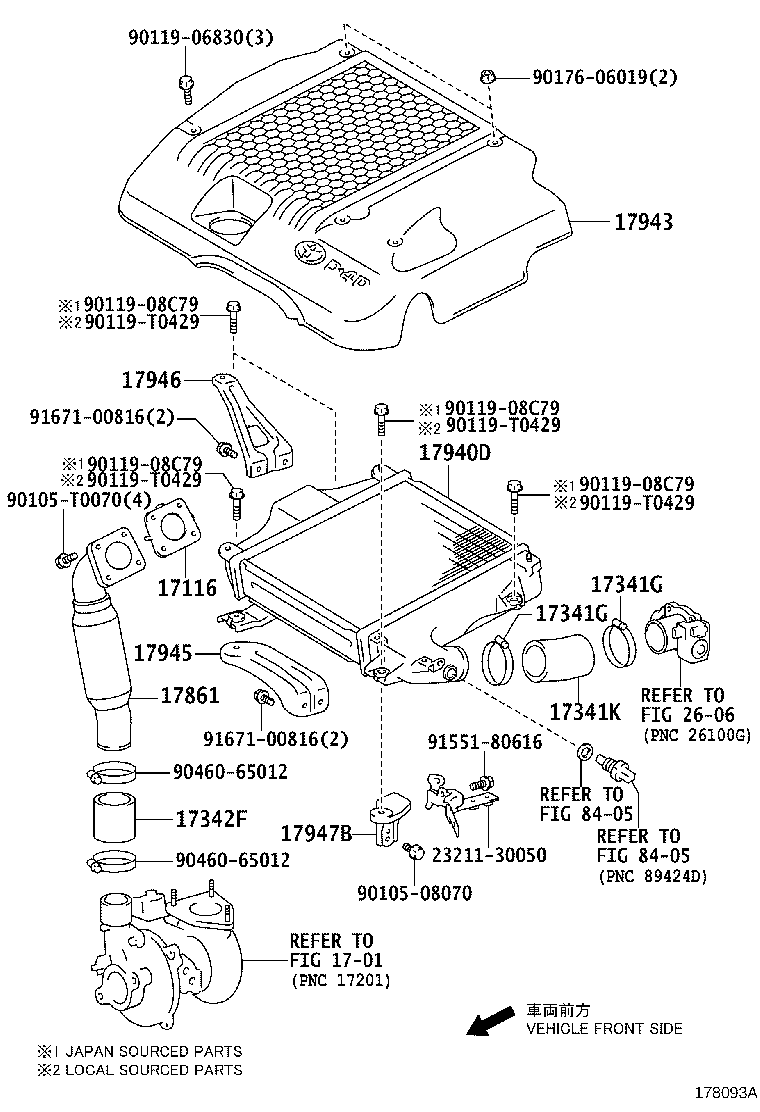

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

diagram 1701 17116 17341G 17341G 17341K 17342F 17861 17940D 17943 17945 17946 17947B 2321130050 2606 8405 8405 9010508070 90105T0070 9011906830 9011908C79 9011908C79 9011908C79 9011908C79 90119T0429 90119T0429 90119T0429 90119T0429 9017606019 9046065012 9046065012 9155180616 9167100816 9167100816
Part # Description Qty Price
17116 - GASKET, INTAKE FLANGE
17116-0L010

1KDFTV,2KDFTV..KUN2#,35

 1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006

1KDFTV,2KDFTV..KUN2#,35

 2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006

1KDFTV,2KDFTV..KUN2#,35

 2
17341K - HOSE, AIR, NO.1(FOR INTERCOOLER)
17341-30060

1KDFTV,2KDFTV..KUN2#,35

 1
17342F - HOSE, AIR, NO.2(FOR INTERCOOLER)
17342-30010

1KDFTV,2KDFTV..KUN2#,35

 1
17861 - CONNECTOR, INTAKE AIR
17860-30100

1KDFTV,2KDFTV..KUN2#,35

 1
17940D - INTERCOOLER ASSY
17940-0L070

1KDFTV,2KDFTV..KUN2#,35

 1
17943 - PROTECTOR, INTERCOOLER
12601-0L070

1KDFTV,2KDFTV..KUN2#,35

 1
17945 - BRACKET, INTERCOOLER SUPPORT
17945-30100

1KDFTV,2KDFTV..KUN2#,35

 1
17946 - BRACKET, INTERCOOLER SUPPORT, NO.2
17946-30070

1KDFTV,2KDFTV..KUN2#,35

 1
17947B - BRACKET, INTERCOOLER SUPPORT, NO.3
17947-30030

1KDFTV,2KDFTV..KUN2#,35

 1
Common parts
23211-30050
90105-08070
90105-T0070
90119-06830
90119-08C79
90119-T0429
90176-06019
90460-65012
91551-80616
91671-00816
Linked diagrams
1701
2606
8405
