Part #	Description	Period	Qty
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-30120	2KDFTV..KUN25,35	07/2011 - 12/2015	1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-12097	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90904-30004	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
15471 - GASKET, TURBO OIL INLET
15471-30011	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-30010	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
17111 - MANIFOLD, INTAKE
17101-30120	2KDFTV..KUN25,35	07/2011 - 12/2015	1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 06/2013	2
17118 - STAY, MANIFOLD
17118-30170	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
17118B - INSULATOR, INTAKE MANIFOLD
17853-30020	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-30020	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
17136 - INSULATOR, INTAKE MANIFOLD, NO.2
17136-30030	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
17139 - STAY, MANIFOLD, NO.2
17139-30030	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
17141 - MANIFOLD, EXHAUST
17141-30060	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-30020	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-30040	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-0L010	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-30030	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-30011	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
17271 - INSULATOR, TURBO, NO.1
17271-0L020	2KDFTV..KUN25,35	07/2011 - 12/2015	1
17274 - ELBOW, COMPRESSOR INLET
17274-30110	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 03/2012	1
17274 - ELBOW, COMPRESSOR INLET
17274-30110	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 03/2012	1
17276 - GASKET, COMPRESSOR INLET
17276-67010	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-67010	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-30030	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 10/2014	1
17287 - GASKET, TURBINE OUTLET ELBOW, NO.2
17287-0L010	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 01/2012	1
17287-0L010	1KDFTV,2KDFTV..KUN2#,35 TYPE A:REFER ILLUST.	01/2012 - 02/2012	1
17288A - GASKET, TURBINE OUTLET ELBOW, NO.3
17279-0L030	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 01/2012	1
17279-0L030	1KDFTV,2KDFTV..KUN2#,35 TYPE A:REFER ILLUST.	01/2012 - 02/2012	1
17291 - ELBOW, TURBINE OUTLET
17291-30190	2KDFTV..KUN25,35	07/2011 - 12/2015	1
17292A - ELBOW, TURBINE OUTLET, NO.2
17292-0L010	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
17293 - STAY, TURBOCHARGER
17293-30070	2KDFTV..KUN25,35	07/2011 - 12/2015	1
17299 - STAY, TURBINE OUTLET ELBOW
17299-0L050	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 12/2015	1
Common parts
23211-30030
90116-08408
90119-06748
90126-08052
90126-10034
90179-08101
90179-08229
90179-10070
90179-10165
90201-10109
90387-10171
90469-07011
91551-80814
91551-80835
91651-B0814
91671-00816
91671-80612
91671-80812
91671-80820
91672-81025
94151-80600
94151-80800
94184-01041

KUN25L-CRMDHH (2011)

ILLUST NO. 1 OF 2(1107- )2KDFTV

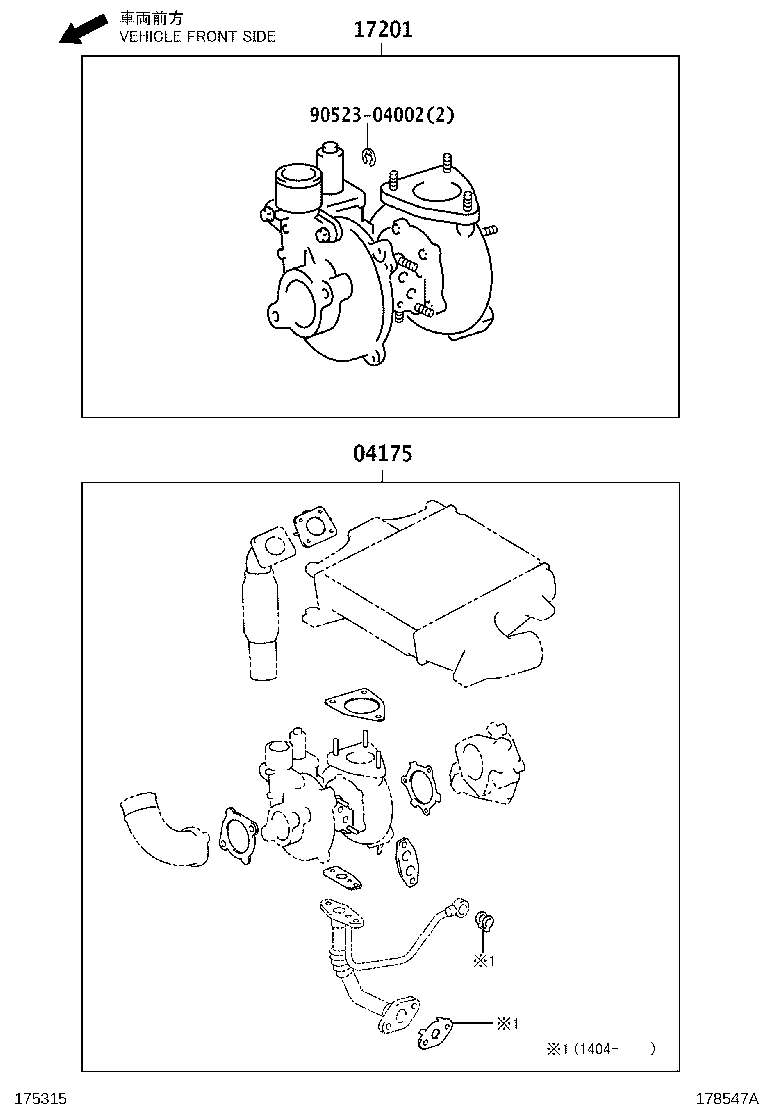

ILLUST NO. 2 OF 2(1107- )2KDFTV

Part Price Details

Part #	Description	Period	Qty
04175 - GASKET KIT, TURBOCHARGER
04175-30240	1KDFTV,2KDFTV..KUN2#,35	07/2011 - 04/2014	1
04175-30241	1KDFTV,2KDFTV..KUN2#,35	04/2014 - 10/2014	1
17201 - TURBOCHARGER SUB-ASSY
17201-0L070	2KDFTV..KUN25,35	07/2011 - 03/2014	1
Common parts
90523-04002
