KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )

Click highlighted areas on diagram

diagram 15710 15785 15785 90178T0019 9415180800
Part # Description Qty Price
Common parts
90178-T0019
94151-80800

(1107- )

Click highlighted areas on diagram

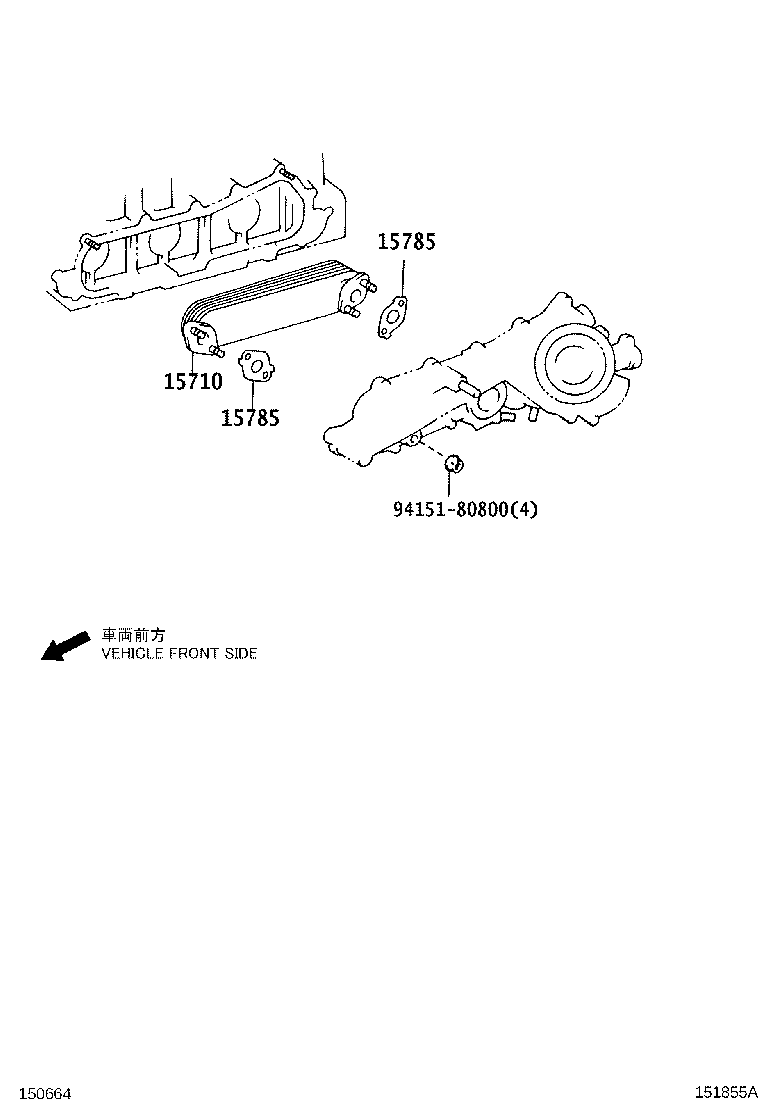

diagram 15710 15785 15785 9415180800
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-30030

2KDFTV..KUN25,35

 1
15785 - GASKET, OIL COOLER
15785-30010

1KDFTV,2KDFTV..KUN2#,35

 2
15785 - GASKET, OIL COOLER
15785-30010

1KDFTV,2KDFTV..KUN2#,35

 2
Common parts
94151-80800
