KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )

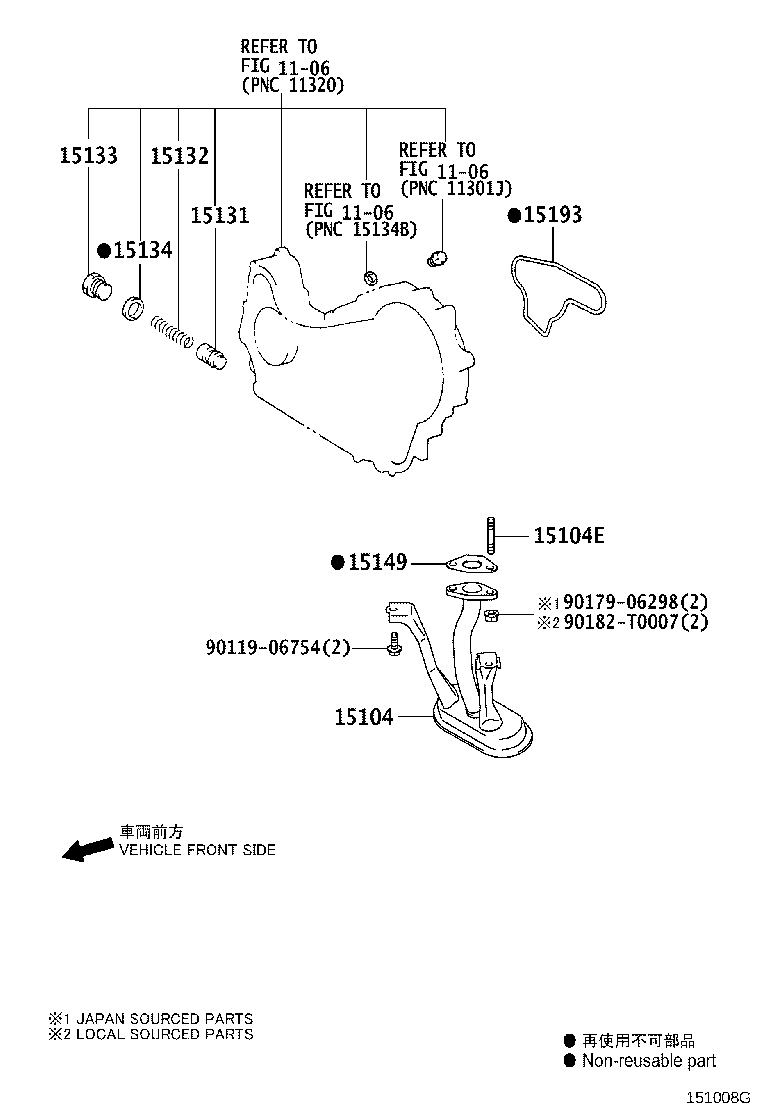

Click highlighted areas on diagram

diagram 1106 1106 1106 15104 15104E 15131 15132 15133 15134 15149 15193 9011906754 9017906298 90182T0007
Part # Description Qty Price
Common parts
90119-06754
90179-06298
90182-T0007
Linked diagrams
1106

(1107- )

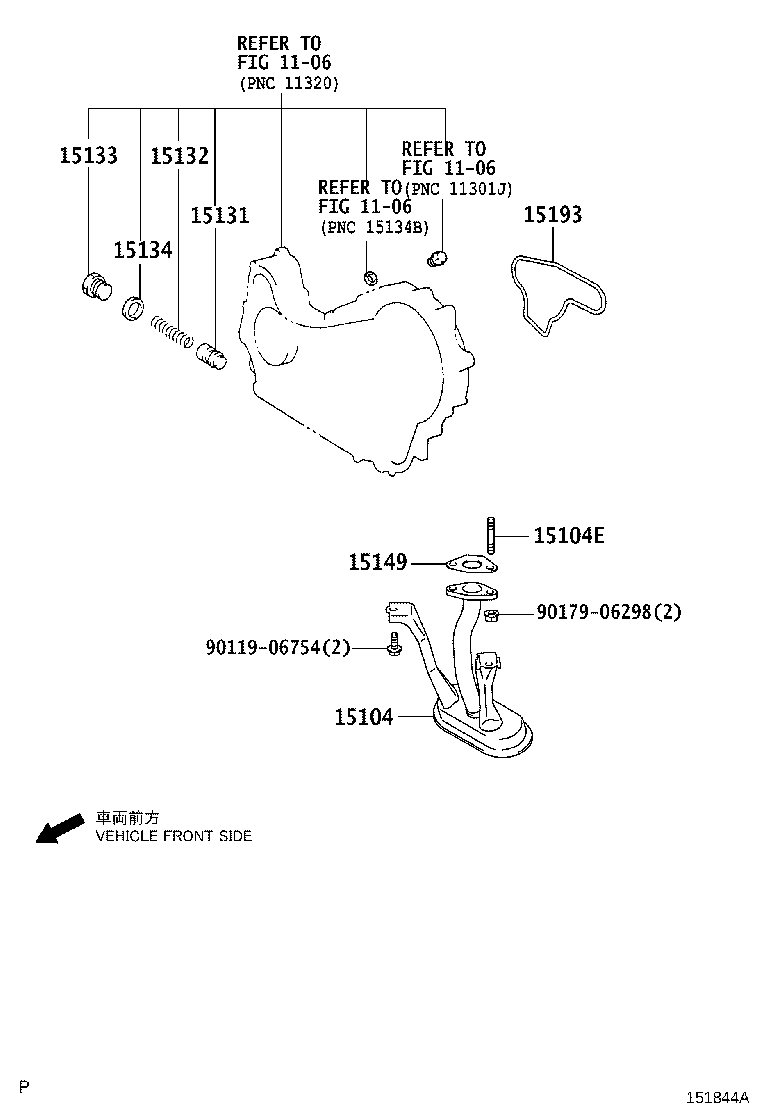

Click highlighted areas on diagram

diagram 1106 1106 1106 15104 15104E 15131 15132 15133 15134 15149 15193 9011906754 9017906298
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-30050

1KDFTV,2KDFTV..KUN2#,35

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
90116-06140

1KDFTV,2KDFTV..KUN2#,35

 2
15131 - VALVE, OIL PUMP RELIEF
15131-46040

1KDFTV,2KDFTV..KUN2#,35

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-17010

1KDFTV,2KDFTV..KUN2#,35

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-17010

1KDFTV,2KDFTV..KUN2#,35

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-67020

1KDFTV,2KDFTV..KUN2#,35

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-67010

1KDFTV,2KDFTV..KUN2#,35

 1
15193 - GASKET, OIL PUMP
15193-67011

1KDFTV,2KDFTV..KUN2#,35

 1
Common parts
90119-06754
90179-06298
Linked diagrams
1106
