KUN25L-CRMDHH (2011)
Toyota Hilux
Production
Nov 2011
-
Apr 2015
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

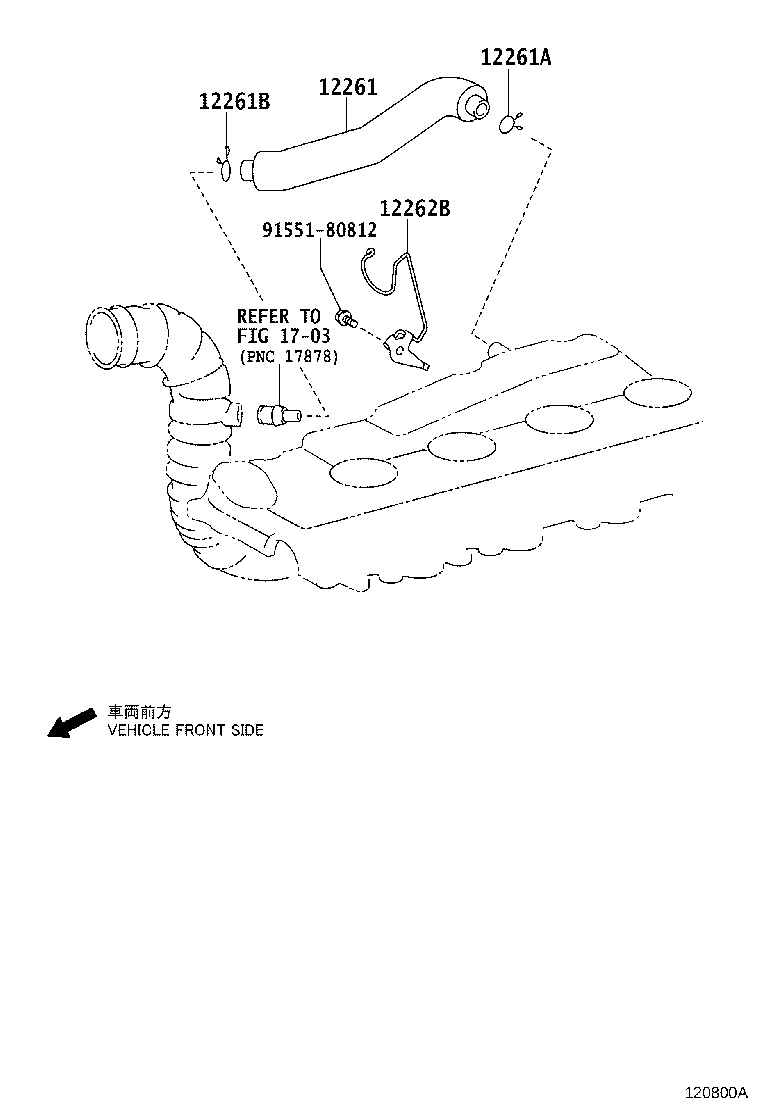

(1107-1203)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12261 - HOSE, VENTILATION | ||||
| 12261-30090 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 12261-30040 |
2KDFTV..KUN25..FLD |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-22010 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 12261B - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-21006 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 12262B - CLAMP(FOR VENTILATION HOSE) | ||||
| 16581-30180 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| Common parts | ||||
| 91551-80812 | ||||
| Linked diagrams | ||||
| 1703 | ||||
(1203- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12203 - PIPE SUB-ASSY, VENTILATION | ||||
| 12203-30090 |
2KDFTV..KUN25..FLD |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-30040 |
2KDFTV..KUN25..FLD |
1 | ||
| 12261-30090 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-30040 |
2KDFTV..KUN25..FLD |
1 | ||
| Common parts | ||||
| 91551-80812 | ||||
| 91671-00816 | ||||
| Linked diagrams | ||||
| 1701 | ||||
