KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )

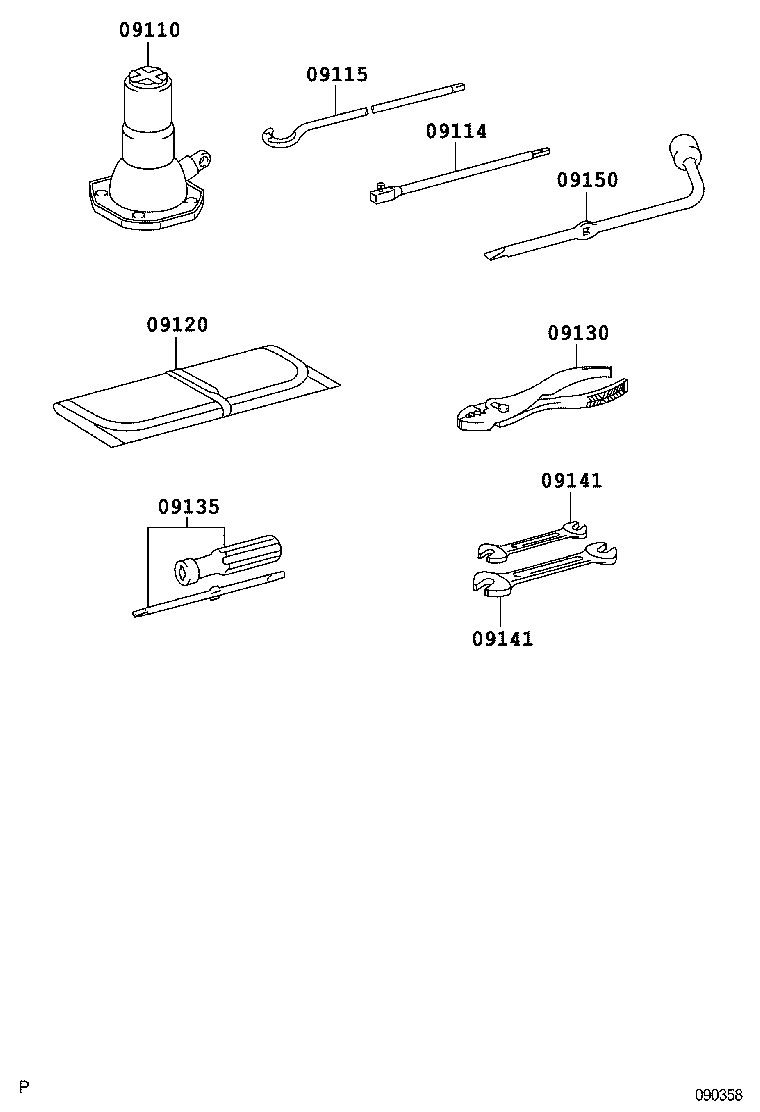

Click highlighted areas on diagram

diagram 09110 09114 09115 09120 09130 09135 09141 09141 09150
Part # Description Qty Price

(1107- )

Click highlighted areas on diagram

diagram 09110 09114 09114 09115 09120 09130 09135 09141 09141 09150
Part # Description Qty Price
09110 - JACK ASSY
09111-0K080

KUN2#,35

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-0K010

KUN2#,35..THDCB,THSCB,XTR

 2
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-0K010

KUN2#,35..THDCB,THSCB,XTR

 2
09115 - ROD SUB-ASSY, JACK HANDLE
09115-0K080

KUN2#,35

 1
09120 - BAG, TOOL
09120-0K130

KUN2#,35..THDCB,THSCB,XTR

 1
09120-0K010

KUN2#,35..THDCB,THSCB,XTR

 1
09120-0K160

KUN2#,35..THDCB,THSCB,XTR

 1
09120-0K010

KUN2#,35..THDCB,THSCB,XTR

 1
09130 - PLIERS
90089-99010

KUN2#,35

 1
09135 - DRIVER, SCREW
90089-99009

KUN2#,35

 1
09141 - SPANNER
09141-0K040

KUN2#,35..THDCB,THSCB,XTR

12 X 14

 1
09141-0K030

KUN2#,35..THDCB,THSCB,XTR

8 X 10

 1
09141 - SPANNER
09141-0K040

KUN2#,35..THDCB,THSCB,XTR

12 X 14

 1
09141-0K030

KUN2#,35..THDCB,THSCB,XTR

8 X 10

 1
09150 - WRENCH, HUB NUT BOX
09150-0K010

KUN2#,35..THDCB,THSCB,XTR

 1
