KUN15R-TRMDYW (2005)

Toyota Hilux

Production Jul 2005 - Oct 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )KUN15

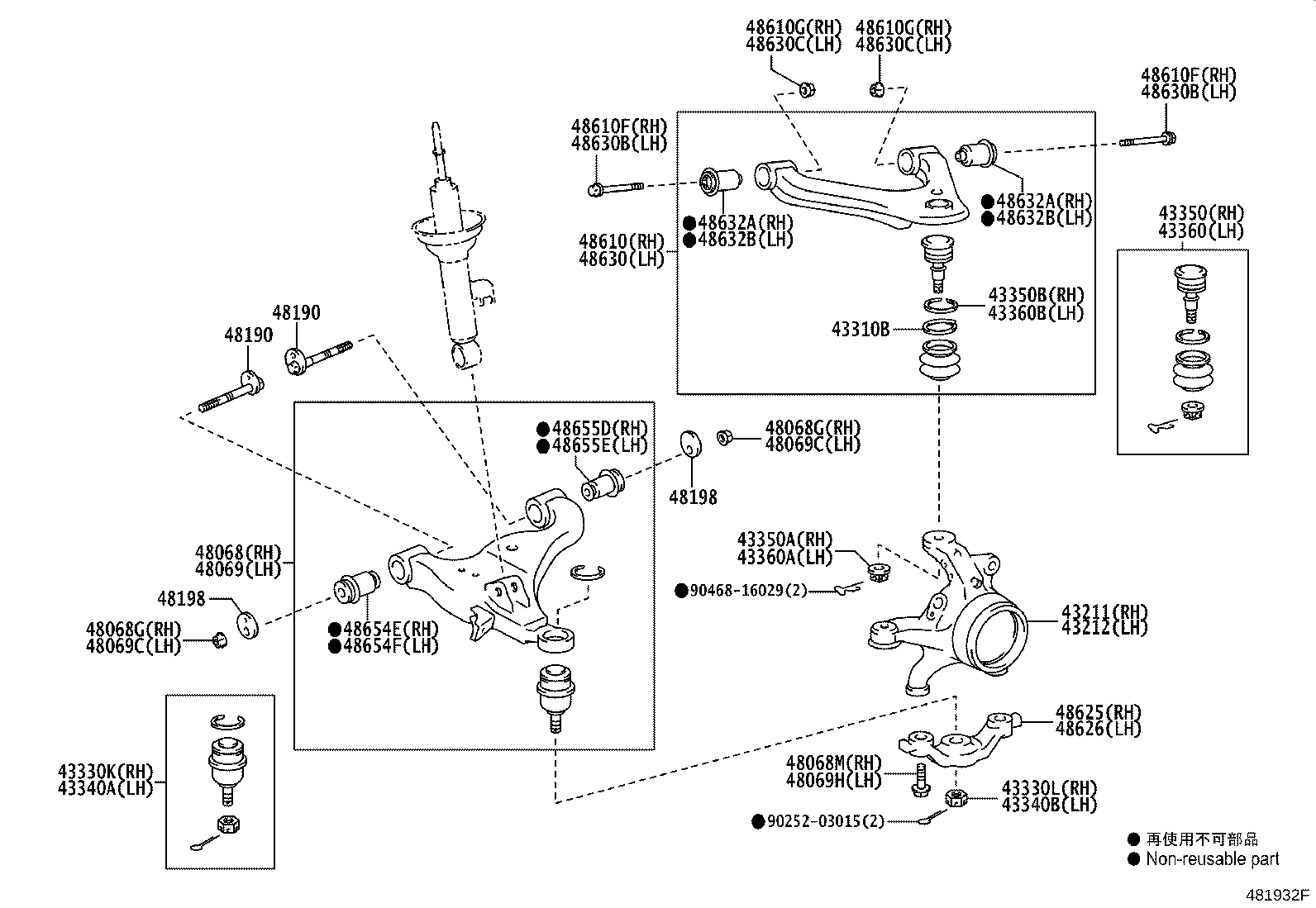

Click highlighted areas on diagram

diagram 43211 43212 43310B 43330K 43330L 43340A 43340B 43350 43350A 43350B 43360 43360A 43360B 48068 48068G 48068G 48068M 48069 48069C 48069C 48069H 48190 48190 48198 48198 48610 48610F 48610F 48610G 48610G 48625 48626 48630 48630B 48630B 48630C 48630C 48632A 48632A 48632B 48632B 48654E 48654F 48655D 48655E 9025203015 9046816029
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-0K010

KUN15..(DCB,SCB)..DCR

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
43211-0K020

KUN15..(DCB,SCB)..DCR

 1
43212 - KNUCKLE, STEERING, LH
43212-0K010

KUN15..(DCB,SCB)..DCR

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
43212-0K020

KUN15..(DCB,SCB)..DCR

 1
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09510

KUN15,2#..4FC,5F

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-T0003

KUN15,2#..4FC,5F

 1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-09510

KUN15,2#..4FC,5F

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-T0003

KUN15,2#..4FC,5F

 1
43350 - JOINT ASSY, FRONT UPPER BALL, RH
43310-09015

KUN15,2#..4FC,5F

 1
43350A - NUT (FOR FRONT UPPER BALL JOINT RH)
90171-T0001

KUN15,2#..4FC,5F

 1
43360 - JOINT ASSY, FRONT UPPER BALL, LH
43310-09015

KUN15,2#..4FC,5F

 1
43360A - NUT (FOR FRONT UPPER BALL JOINT LH)
90171-T0001

KUN15,2#..4FC,5F

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-0K010

KUN15

 1
48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90178-T0073

KUN15

 2
48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90178-T0073

KUN15

 2
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90105-16053

KUN15,2#..4FC,5F

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-0K010

KUN15

 1
48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90178-T0073

KUN15

 2
48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90178-T0073

KUN15

 2
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90105-16053

KUN15,2#..4FC,5F

 2
48190 - CAM ASSY, CAMBER ADJUST
48190-0K020

KUN15

 4
48190 - CAM ASSY, CAMBER ADJUST
48190-0K020

KUN15

 4
48198 - CAM, CAMBER ADJUST, NO.2
48198-0K020

KUN15

 4
48198 - CAM, CAMBER ADJUST, NO.2
48198-0K020

KUN15

 4
48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH
48610-0K010

KUN15

 1
48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH)
90119-T0348

KUN15

 2
48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH)
90119-T0348

KUN15

 2
48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH)
90178-T0047

KUN15

 2
48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH)
90178-T0047

KUN15

 2
48625 - ATTACHMENT, FRONT LOWER BALL JOINT, RH
48625-0K030

KUN15..DCB,SCB

 1
48626 - ATTACHMENT, FRONT LOWER BALL JOINT, LH
48626-0K030

KUN15..DCB,SCB

 1
48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH
48630-0K010

KUN15

 1
48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH)
90119-T0348

KUN15

 2
48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH)
90119-T0348

KUN15

 2
48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH)
90178-T0047

KUN15

 2
48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH)
90178-T0047

KUN15

 2
48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH
48632-0K010

KUN15

 2
48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH
48632-0K010

KUN15

 2
48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH
48632-0K010

KUN15

 2
48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH
48632-0K010

KUN15

 2
48654E - BUSH, FRONT LOWER ARM, NO.1 RH
48654-0K010

KUN15

 1
48654F - BUSH, FRONT LOWER ARM, NO.1 LH
48654-0K010

KUN15

 1
48655D - BUSH, FRONT LOWER ARM, NO.2 RH
48655-0K010

KUN15

 1
48655E - BUSH, FRONT LOWER ARM, NO.2 LH
48655-0K010

KUN15

 1
Common parts
90252-03015
90468-16029
