KUN15R-TRMDYW (2005)
Toyota Hilux
Production
Jul 2005
-
Oct 2006
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0507- )KUN15

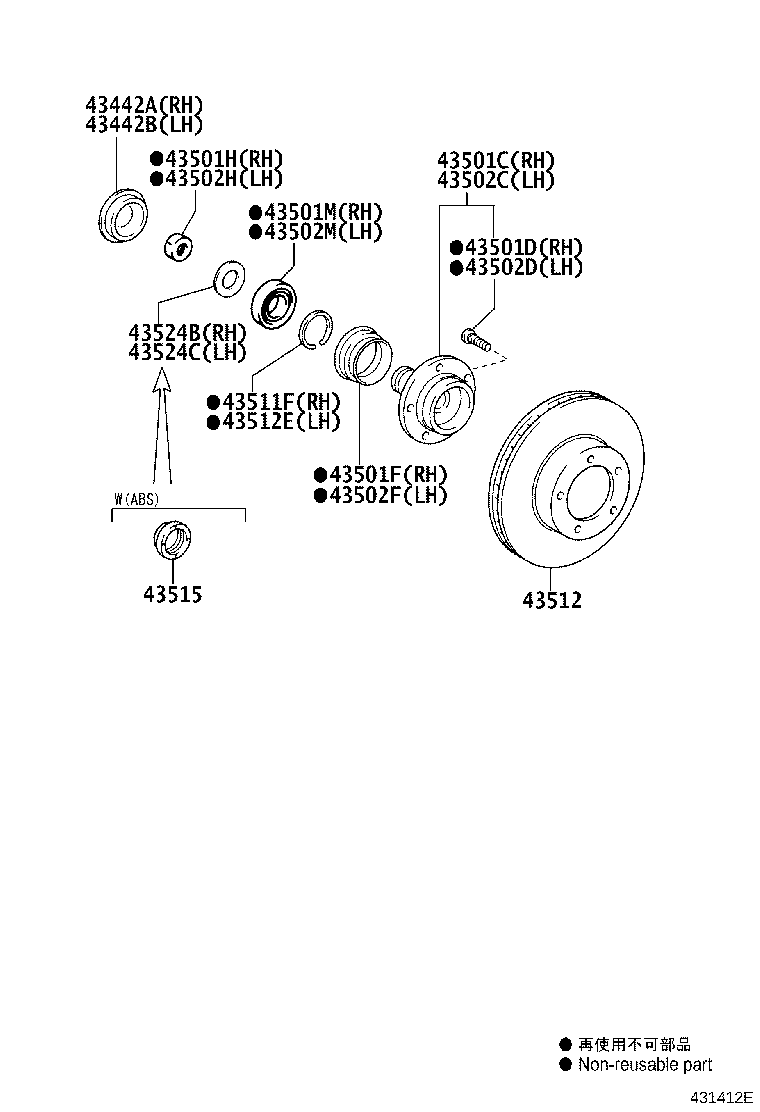

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43442A - CAP, KNUCKLE GREASE RETAINER, INNER, RH | ||||
| 43442-0K010 |
KUN15 |
1 | ||
| 43442B - CAP, KNUCKLE GREASE RETAINER, INNER, LH | ||||
| 43442-0K010 |
KUN15 |
1 | ||
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-0K010 |
KUN15 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02049 |
KUN15 |
5 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-T0010 |
KUN15 |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90177-T0002 |
KUN15 |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90080-36205 |
KUN15..DCB,SCB |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-0K010 |
KUN15 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02049 |
KUN15 |
5 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-T0010 |
KUN15 |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90177-T0002 |
KUN15 |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90080-36205 |
KUN15..DCB,SCB |
1 | ||
| 43511F - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90521-T0003 |
KUN15 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-0K030 |
KUN15..DCB,SCB |
2 | ||
| 43512E - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90521-T0003 |
KUN15 |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-0K010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 43524B - SPACER, FRONT WHEEL INNER BEARING, RH | ||||
| 43524-0K010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX |
1 | ||
| 43524C - SPACER, FRONT WHEEL INNER BEARING, LH | ||||
| 43524-0K010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX |
1 | ||
