KUN15R-CRMDHW (2006)

Toyota Hilux

Production Aug 2006 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )KUN15..DLX..HDCR

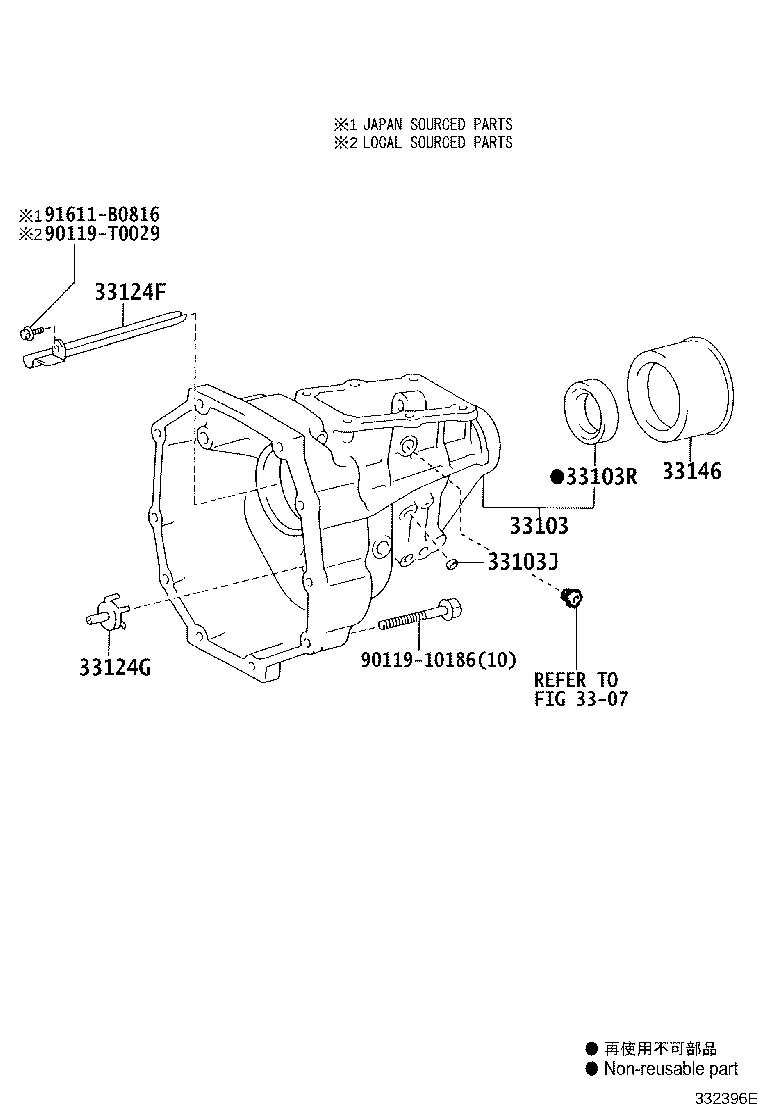

Click highlighted areas on diagram

R151

diagram 3307 33103 33103J 33103R 33124F 33124G 33146 9011910186 90119T0029 91611B0816
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-0K040

KUN15..THDCB,THSCB,XTR

TYPE B:REFER 33-01

 1
33103-0K020

KUN15..XTR

 1
33103J - PLUG, TIGHT(FOR EXTENSION HOUSING)
90341-10065

KUN15..THDCB,THSCB,XTR

TYPE B:REFER 33-01

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-T0020

KUN15..XTR

 1
90311-40001

KUN15..XTR

TYPE B:REFER 33-01

 1
90311-T0029

KUN15..THDCB,THSCB,XTR

TYPE B:REFER 33-01

 1
33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124-0K030

KUN15..XTR

 1
33124-35090

KUN15..THDCB,THSCB,XTR

TYPE B:REFER 33-01

 1
33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)
33124-35100

KUN15..THDCB,THSCB,XTR

TYPE B:REFER 33-01

 1
33124-36010

KUN15..DCR

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-04010

KUN15..DLX

 1
Common parts
90119-10186
90119-T0029
91611-B0816
Linked diagrams
3307
