KUN15L-TRMDYW3 (2005)
Toyota Hilux
Production
Jul 2005
-
Oct 2006
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0507- )KUN15

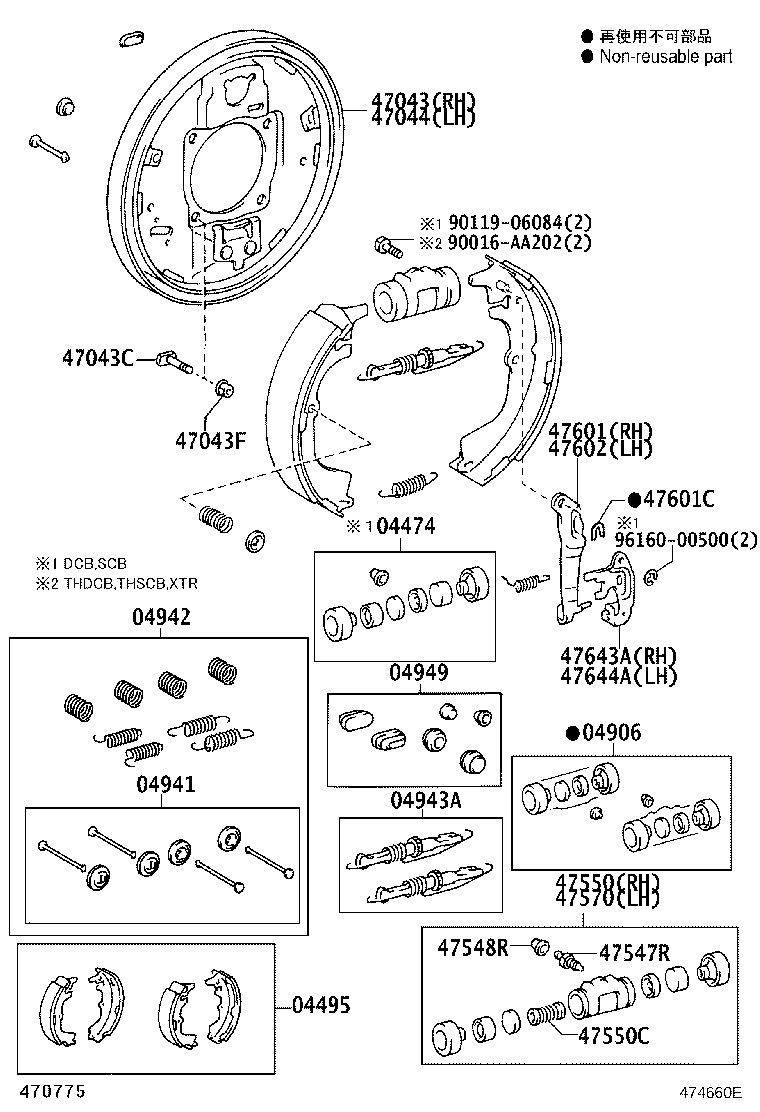

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-43020 |
KUN15..DCB,SCB |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-0K060 |
KUN15..DCB,SCB MARK NSA LN512 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-43040 |
KUN15..DCB,SCB |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-0K010 |
KUN15 |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-0K080 |
KUN15 |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-0K050 |
KUN15..DCB,SCB |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-0D010 |
KUN15..DCB,SCB |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-0K020 |
KUN15..DCB,SCB |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
KUN15,2#..4FC,5F *10-1.25PX37-18.5 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90178-T0075 |
KUN15..DCB,SCB |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-0K020 |
KUN15..DCB,SCB |
1 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20030 |
KUN15 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
KUN15 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-71010 |
KUN15..DCB,SCB |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90029-60009 |
KUN15..DCB,SCB |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-71010 |
KUN15..DCB,SCB |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47611-0K020 |
KUN15..DCB,SCB |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
KUN15 T=1.6 |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47612-0K020 |
KUN15..DCB,SCB |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-0K020 |
KUN15..DCB,SCB |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-0K020 |
KUN15..DCB,SCB |
1 | ||
| Common parts | ||||
| 90016-AA202 | ||||
| 90119-06084 | ||||
| 96160-00500 | ||||
