KUN15L-PRMDYW3 (2005)

Toyota Hilux

Production Jul 2005 - Oct 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(0507- )

Click highlighted areas on diagram

diagram 04477 31478D 47353 47910 47910B 47920 47920A 47920A 47920B 47920C 47920C 47924 47924 47931 47935 47936 47937 90016AC102 90016AC102 90016AC102 90016AC102 90016AC103 90016AX201 9008010258 9008010258 9008056074 9008056074 9008056074 9008056074 9011908B11 90119T0126 90119T0200 9451200800 9451200800 9451200800 9461210800
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-04010

KUN15..SR;KUN15..DCR;KUN25..LHD..XTR;KUN25..DCB,SCB,THDCB,THSCB

 1
31478D - CAP, BLEEDER PLUG(FOR LSPV)
31478-30010

KUN15,2#..4FC,5F

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47352-0K011

KUN15

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-0K010

KUN15

 1
47910B - PLUG, BLEEDER
47547-27030

KUN15,2#..4FC,5F

 1
47920 - SPRING ASSY, LOAD SENSING
47920-0K010

KUN15,2#..4FC,5F

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90016-AX201

KUN15,2#..4FC,5F

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90016-AX201

KUN15,2#..4FC,5F

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90080-46308

KUN15,2#..4FC,5F

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90016-AH101

KUN15,2#..4FC,5F

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90016-AH101

KUN15,2#..4FC,5F

 2
47924 - BUSH, LOAD SENSING VALVE
47924-04010

KUN15,2#..4FC,5F

 2
47924 - BUSH, LOAD SENSING VALVE
47924-04010

KUN15,2#..4FC,5F

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-0K010

KUN15,2#..4FC,5F

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-04010

KUN15,2#..4FC,5F

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-04010

KUN15

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-04010

KUN15,2#..4FC,5F

 1
Common parts
90016-AC102
90016-AC103
90016-AX201
90080-10258
90080-56074
90119-08B11
90119-T0126
90119-T0200
94512-00800
94612-10800

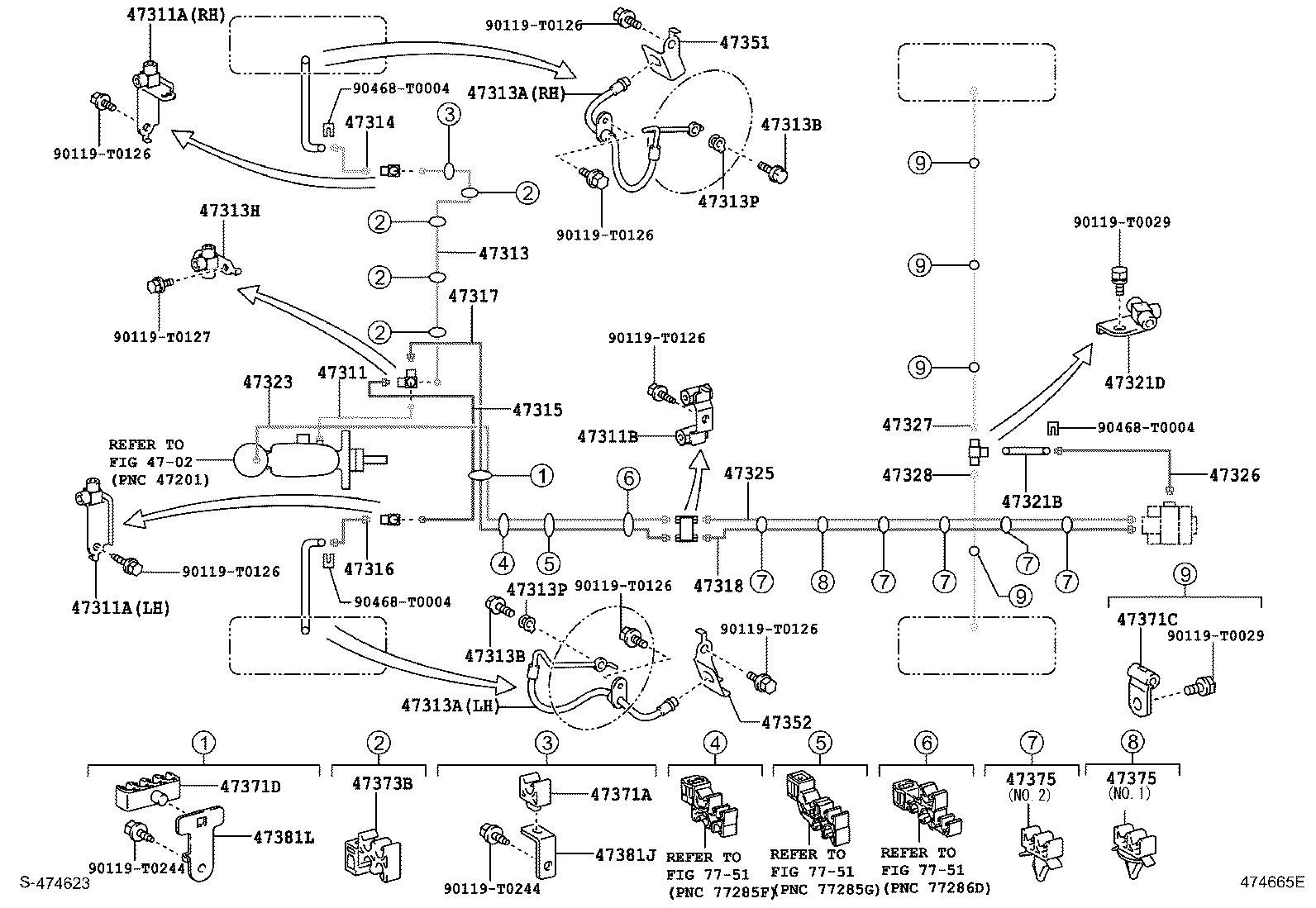

ILLUST NO. 1 OF 3(0507- )KUN15..LHD..DCB,SCB..DLX

Click highlighted areas on diagram

diagram 4702 47311 47311A 47311A 47311B 47313 47313A 47313A 47313B 47313B 47313H 47313P 47313P 47314 47315 47316 47317 47318 47321B 47321D 47323 47325 47326 47327 47328 47351 47352 47371A 47371C 47371D 47373B 47375 47375 47381J 47381L 7751 7751 7751 90119T0029 90119T0029 90119T0126 90119T0126 90119T0126 90119T0126 90119T0126 90119T0126 90119T0126 90119T0127 90119T0244 90119T0244 90468T0004 90468T0004 90468T0004
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0K040

KUN15,25..LHD..(DCB,SCB)

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10251

KUN15,2#..4FC,5F

RH

 1
90412-10252

KUN15,2#..4FC,5F

LH

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10251

KUN15,2#..4FC,5F

RH

 1
90412-10252

KUN15,2#..4FC,5F

LH

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10253

KUN15,2#..4FC,5F

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0K060

KUN15,25..LHD..(DCB,SCB)..5F

 1
47313-0K040

KUN15..LHD..XTR..DCR;KUN15,25..LHD..(DCB,SCB)..5F

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-T2005

KUN15

LH

 1
90947-T2004

KUN15

RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-T2005

KUN15

LH

 1
90947-T2004

KUN15

RH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

KUN15

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

KUN15

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90414-10055

KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX

 1
90413-10312

KUN15..LHD..XTR..DCR;KUN15,25..LHD..(DCB,SCB)..5F

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KUN15

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KUN15

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-0K020

KUN15

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-0K040

KUN15..LHD..XTR..DCR;KUN15,25..LHD..(DCB,SCB)..5F

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47315-0K060

KUN15,25..LHD..(DCB,SCB)..5F

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0K020

KUN15

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0K030

KUN15,2#..LHD..(DCB,SCB)

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-0K020

KUN15,2#..4FC,5F

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2011

KUN15

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10311

KUN15

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0K060

KUN15,25..LHD..(DCB,SCB)..5F

 1
47323-0K040

KUN15..LHD..XTR..DCR;KUN15,25..LHD..(DCB,SCB)..5F

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-0K020

KUN15,2#..4FC,5F

 1
47326 - TUBE, REAR BRAKE, NO.6
47329-0K011

KUN15

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-0K010

KUN15

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-0K010

KUN15

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47353-0K010

KUN15

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47354-0K010

KUN15

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-T1011

KUN15,2#..LHD..(4FC,5F)

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90461-T0001

KUN15,2#..4FC,5F

 4
47371D - CLAMP, BRAKE TUBE, NO.8
90949-T1010

KUN15,2#..LHD..(4FC,5F)

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-T1012

KUN15,2#..LHD..(4FC,5F)

 4
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1006

KUN15,2#..4FC,5F

NO.2

 5
90469-T0007

KUN15,2#..4FC,5F

NO.1

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1006

KUN15,2#..4FC,5F

NO.2

 5
90469-T0007

KUN15,2#..4FC,5F

NO.1

 1
47381J - BRACKET, BRAKE TUBE CLAMP, NO.2
90949-T2001

KUN15,2#..LHD..(4FC,5F)

 1
47381L - BRACKET, BRAKE TUBE CLAMP, NO.3
90949-T2002

KUN15,2#..LHD..(4FC,5F)

 1
Common parts
90119-T0029
90119-T0126
90119-T0127
90119-T0244
90468-T0004
Linked diagrams
4702
7751

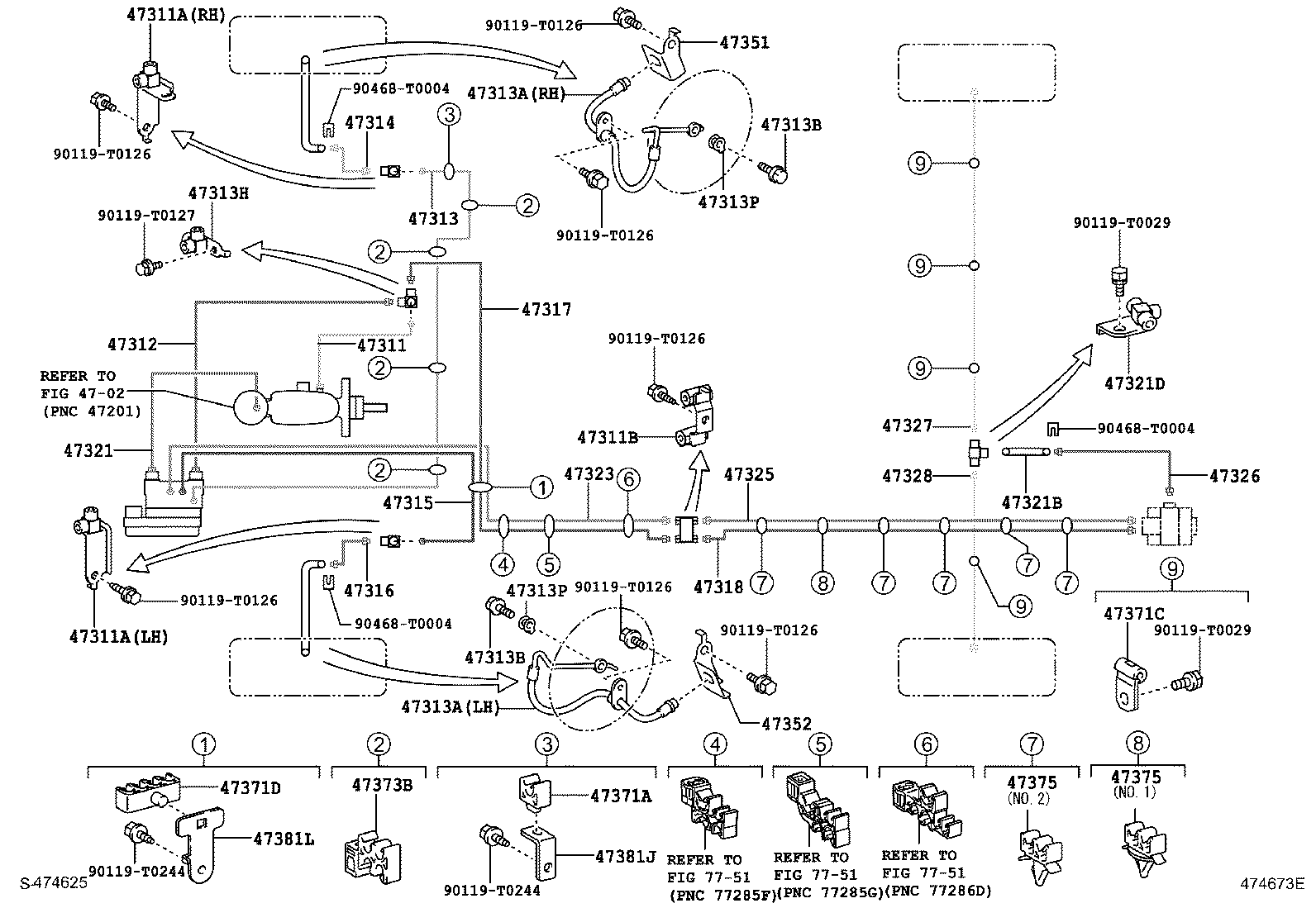

ILLUST NO. 1 OF 3(0507- )KUN15..LHD..DCB,SCB

Click highlighted areas on diagram

W(ABS)

diagram 4702 47311 47311A 47311A 47311B 47312 47313 47313A 47313A 47313B 47313B 47313H 47313P 47313P 47314 47315 47316 47317 47318 47321 47321B 47321D 47323 47325 47326 47327 47328 47351 47352 47371A 47371C 47371D 47373B 47375 47375 47381J 47381L 7751 7751 7751 90119T0029 90119T0029 90119T0126 90119T0126 90119T0126 90119T0126 90119T0126 90119T0126 90119T0126 90119T0127 90119T0244 90119T0244 90468T0004 90468T0004 90468T0004
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0K040

KUN15,25..LHD..(DCB,SCB)

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10251

KUN15,2#..4FC,5F

RH

 1
90412-10252

KUN15,2#..4FC,5F

LH

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10251

KUN15,2#..4FC,5F

RH

 1
90412-10252

KUN15,2#..4FC,5F

LH

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10253

KUN15,2#..4FC,5F

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0K040

KUN15,25..LHD..(DCB,SCB)..5F

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0K060

KUN15,25..LHD..(DCB,SCB)..5F

 1
47313-0K040

KUN15..LHD..XTR..DCR;KUN15,25..LHD..(DCB,SCB)..5F

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-T2005

KUN15

LH

 1
90947-T2004

KUN15

RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-T2005

KUN15

LH

 1
90947-T2004

KUN15

RH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

KUN15

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

KUN15

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90414-10055

KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX

 1
90413-10312

KUN15..LHD..XTR..DCR;KUN15,25..LHD..(DCB,SCB)..5F

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KUN15

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KUN15

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-0K020

KUN15

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-0K040

KUN15..LHD..XTR..DCR;KUN15,25..LHD..(DCB,SCB)..5F

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47315-0K060

KUN15,25..LHD..(DCB,SCB)..5F

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0K020

KUN15

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0K030

KUN15,2#..LHD..(DCB,SCB)

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-0K020

KUN15,2#..4FC,5F

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0K040

KUN15,25..LHD..(DCB,SCB)..5F

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2011

KUN15

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10311

KUN15

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0K060

KUN15,25..LHD..(DCB,SCB)..5F

 1
47323-0K040

KUN15..LHD..XTR..DCR;KUN15,25..LHD..(DCB,SCB)..5F

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-0K020

KUN15,2#..4FC,5F

 1
47326 - TUBE, REAR BRAKE, NO.6
47329-0K011

KUN15

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-0K010

KUN15

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-0K010

KUN15

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47353-0K010

KUN15

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47354-0K010

KUN15

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-T1011

KUN15,2#..LHD..(4FC,5F)

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90461-T0001

KUN15,2#..4FC,5F

 4
47371D - CLAMP, BRAKE TUBE, NO.8
90949-T1010

KUN15,2#..LHD..(4FC,5F)

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-T1012

KUN15,2#..LHD..(4FC,5F)

 4
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1006

KUN15,2#..4FC,5F

NO.2

 5
90469-T0007

KUN15,2#..4FC,5F

NO.1

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1006

KUN15,2#..4FC,5F

NO.2

 5
90469-T0007

KUN15,2#..4FC,5F

NO.1

 1
47381J - BRACKET, BRAKE TUBE CLAMP, NO.2
90949-T2001

KUN15,2#..LHD..(4FC,5F)

 1
47381L - BRACKET, BRAKE TUBE CLAMP, NO.3
90949-T2002

KUN15,2#..LHD..(4FC,5F)

 1
Common parts
90119-T0029
90119-T0126
90119-T0127
90119-T0244
90468-T0004
Linked diagrams
4702
7751

ILLUST NO. 2 OF 3(0507- )LHD

Click highlighted areas on diagram

W(ABS)

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 90119T0166 90178T0066 90178T0066 90182T0018 9167480818
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-71010

KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-12010

KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-12010

KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060

KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060

KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060

KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0K010

KUN15..LHD..XTR..DCR;KUN15,25..LHD..(DCB,SCB)..5F

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
Common parts
90119-T0166
90178-T0066
90182-T0018
91674-80818
