KUN15L-PRMDYW (2005)
Toyota Hilux
Production
Jul 2005
-
Oct 2006
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0507- )KUN15

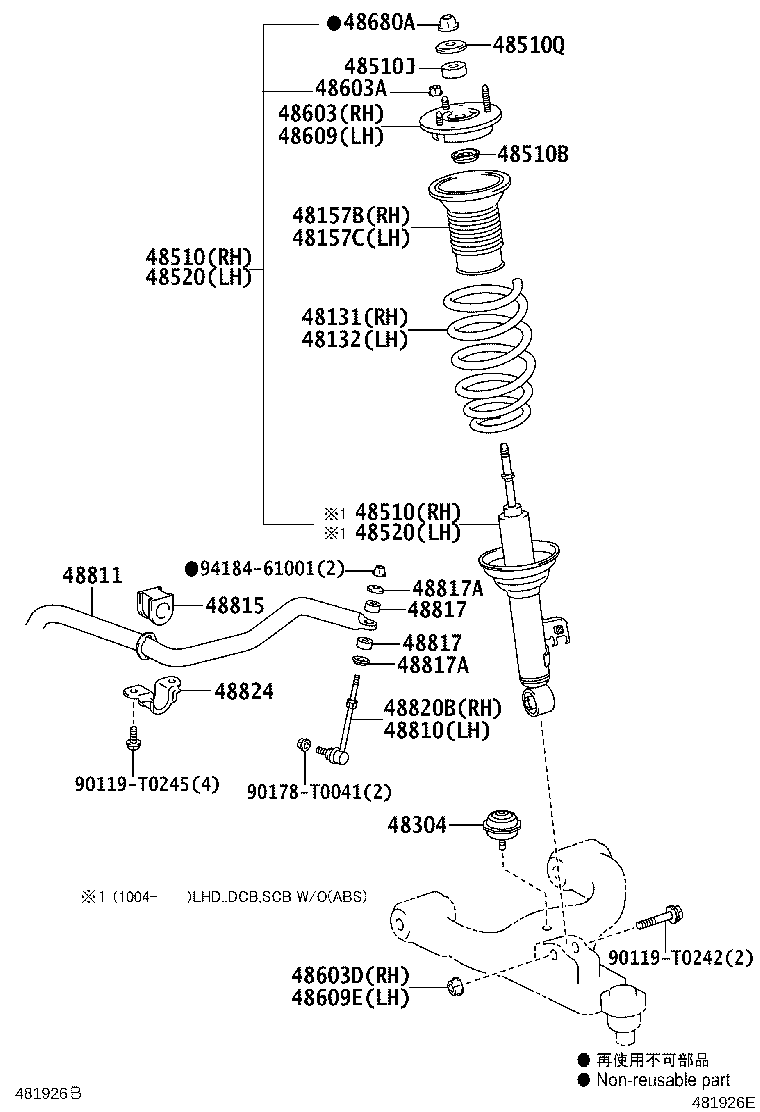

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-0K400 |
KUN15..DCB |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-0K400 |
KUN15..DCB |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-0K010 |
KUN15 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-0K010 |
KUN15 |
1 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-0K010 |
KUN15 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-09J70 |
KUN15..DCB MARK 48510-0K060 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-09J70 |
KUN15..DCB MARK 48510-0K060 |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-T2003 |
KUN15,2#..4FC,5F |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-T1001 |
KUN15,2#..4FC,5F |
2 | ||
| 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-T2004 |
KUN15,2#..4FC,5F |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-09D10 |
KUN15..DCB MARK 48520-0K060 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-09D10 |
KUN15..DCB MARK 48520-0K060 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-0K010 |
KUN15 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-T0050 |
KUN15,2#..4FC,5F |
6 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90178-T0048 |
KUN15,2#..4FC,5F |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-0K010 |
KUN15 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90178-T0048 |
KUN15,2#..4FC,5F |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94188-01241 |
KUN15,2#..4FC,5F |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-0K010 |
KUN15 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-0K090 |
KUN15..DCB |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-0K050 |
KUN15..DCB,THDCB |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-T1002 |
KUN15 |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-T1002 |
KUN15 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-T2002 |
KUN15 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-T2002 |
KUN15 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-0K010 |
KUN15 |
1 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-0K010 |
KUN15,2#..4FC,5F |
2 | ||
| Common parts | ||||
| 90119-T0242 | ||||
| 90119-T0245 | ||||
| 90178-T0041 | ||||
| 94184-61001 | ||||
