KUN15L-PRMDYW (2005)

Toyota Hilux

Production Jul 2005 - Oct 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507-0608)2KDFTV..XTR ; (0507-0610)2KDFTV..DCB,SCB

Click highlighted areas on diagram

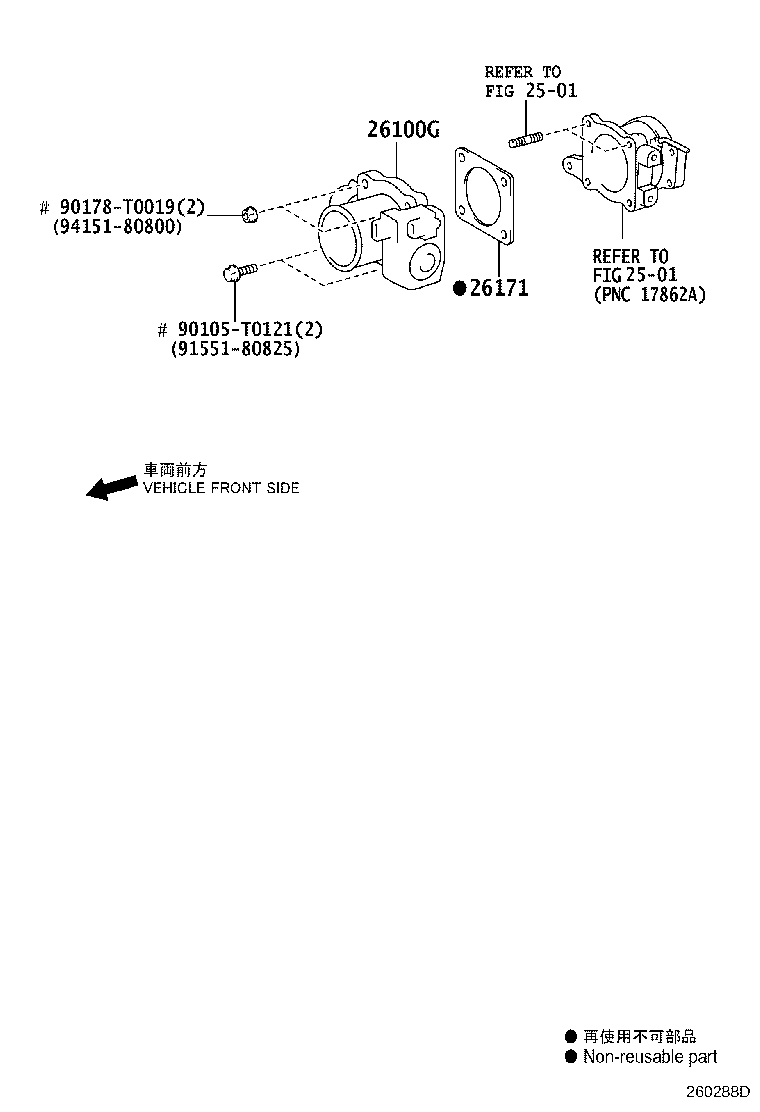

diagram 1701 1708 2501 2501 26100G 26171 90105T0121 90105T0121 90178T0019 90178T0019 9155180825 9415180800
Part # Description Qty Price
26100G - BODY ASSY, DIESEL THROTTLE
26100-0L010

2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB

*130

 1
26100-30070

2KDFTV..KUN25..THDCB,THSCB,XTR;1KDFTV,2KDFTV..KUN15,26..4FC,5F

*163 OR *184

 1
26171 - GASKET, VENTURI
26171-30020

2KDFTV..KUN25..THDCB,THSCB,XTR;1KDFTV,2KDFTV..KUN15,26..4FC,5F

*163 OR *184

 1
26171-0L020

2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB

*130

 1
Common parts
90105-T0121
90178-T0019
91551-80825
94151-80800
Linked diagrams
1701
1708
2501

(0608- )1KDFTV ; (0608- )2KDFTV..KUN25..XTR ; (0608- )2KDFTV..KUN15..DLX..

Click highlighted areas on diagram

diagram 2501 2501 26100G 26171 90105T0121 90178T0019 9155180825 9415180800
Part # Description Qty Price
26100G - BODY ASSY, DIESEL THROTTLE
26100-0L010

2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB

*130

 1
26100-30070

2KDFTV..KUN25..THDCB,THSCB,XTR;1KDFTV,2KDFTV..KUN15,26..4FC,5F

*163 OR *184

 1
26171 - GASKET, VENTURI
26171-30020

2KDFTV..KUN25..THDCB,THSCB,XTR;1KDFTV,2KDFTV..KUN15,26..4FC,5F

*163 OR *184

 1
26171-0L020

2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB

*130

 1
Common parts
90105-T0121
90178-T0019
91551-80825
94151-80800
Linked diagrams
2501
