Toyota Hilux KUN15 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
EU
HILUX
KUN15L-PRMDHW3 (2008)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

KUN15L-PRMDHW3 (2008)

Toyota Hilux

Production Oct 2008 - Aug 2011

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

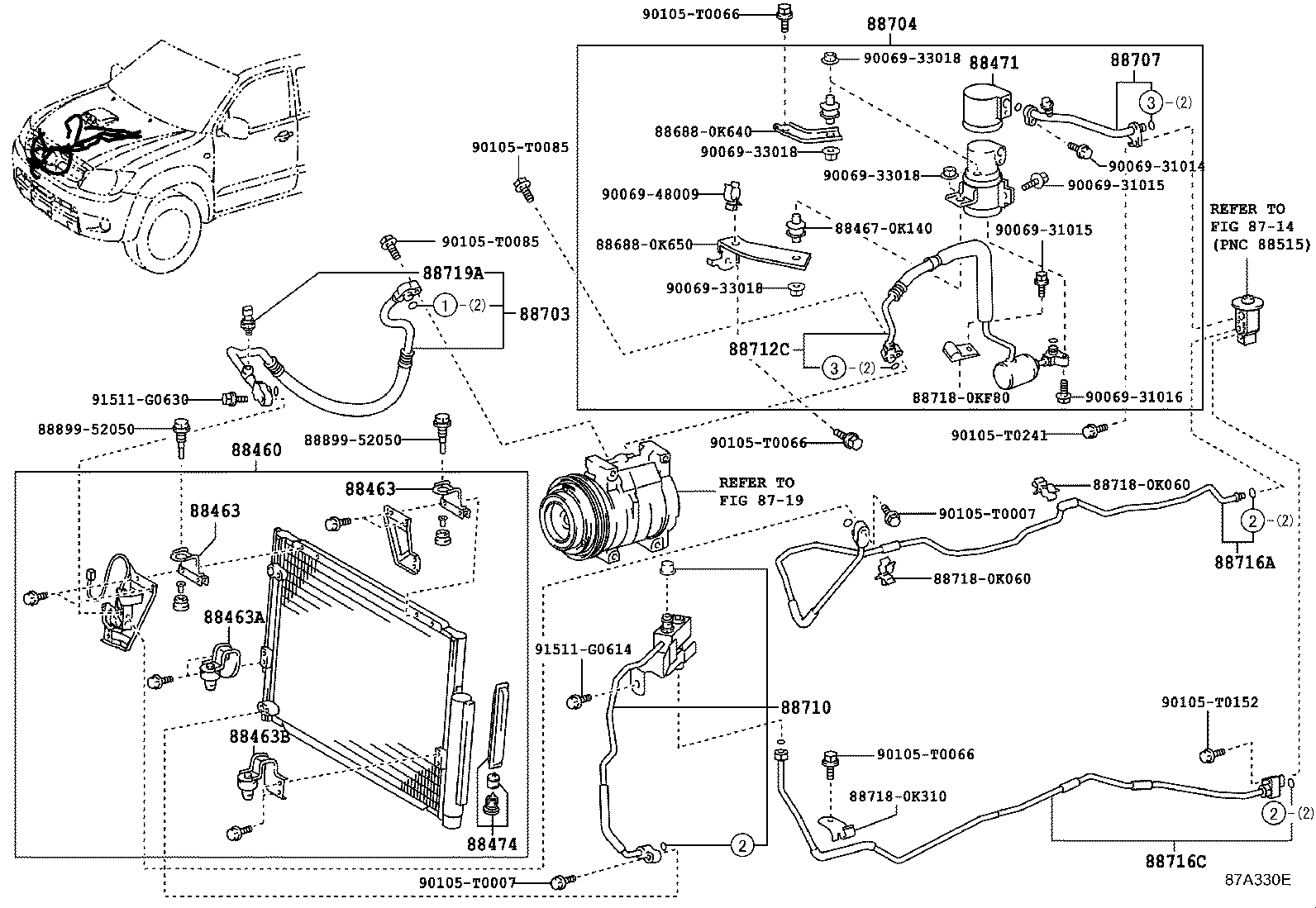

ILLUST NO. 1 OF 2(0810- )LHD..DCB,SCB

Click highlighted areas on diagram

SINGLE AIR CONDITIONER & COLD SPEC

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-0K080	KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88460-0K120	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88460-0K080	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88460-0K120	KUN15,2#..DCB,SCB COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-0K190	KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER	07/2005 - 10/2008	2
88463-0K190	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	2
88463-0K190	KUN15,2#..DCB,SCB COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	2
88463-0K190	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	2
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-0K190	KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER	07/2005 - 10/2008	2
88463-0K190	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	2
88463-0K190	KUN15,2#..DCB,SCB COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	2
88463-0K190	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-0K200	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88463-0K200	KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88463-0K200	KUN15,2#..DCB,SCB COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88463-0K200	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-0K210	KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88463-0K210	KUN15,2#..DCB,SCB COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88463-0K210	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88463-0K210	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88471 - TANK, RECEIVER AIR CONDITIONER
88470-0K020	KUN15,2#..LHD..(DCB,SCB) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 09/2009	1
88474 - DRYER, COOLER
88474-02220	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88474-02220	KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88474-02220	KUN15,2#..DCB,SCB COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88474-02220	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-0K260	KUN15,2#..DCB,SCB COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88704 - HOSE SUB-ASSY, SUCTION
88704-0K190	KUN15,25..DCB,SCB SINGLE AIR CONDITIONER	07/2005 - 10/2006	1
88704-0K050	KUN15,25..LHD..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2006	1
88704-0K701	KUN15,2#..LHD..(DCB,SCB) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2009	1
88704-0K680	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88704-0K702	KUN15,2#..LHD..(DCB,SCB) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	09/2009 - 08/2011	1
88707 - PIPE SUB-ASSY, SUCTION
88717-0KD70	KUN15,2#..LHD..(DCB,SCB) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 09/2009	1
88717-0KE10	KUN15,2#..LHD..(DCB,SCB) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	02/2010 - 08/2011	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0K010	KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88710-0K030	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88710-0K010	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88710-0K030	KUN15,2#..DCB,SCB COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88712C - HOSE, SUCTION
88712-0K750	KUN15,2#..LHD..(DCB,SCB) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 09/2009	1
88712-0K860	KUN15,2#..LHD..(DCB,SCB) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	02/2010 - 08/2011	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0K161	KUN15,2#..DCB,SCB COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88716-0K160	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2006	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-0K180	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2006	1
88716-0KD41	KUN15,2#..LHD..(DCB,SCB) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-40020	KUN15,25..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
Common parts
88467-0K140
88688-0K640
88688-0K650
88718-0K060
88718-0K310
88718-0KF80
88899-52050
90069-31014
90069-31015
90069-31016
90069-33018
90069-48009
90105-T0007
90105-T0066
90105-T0085
90105-T0152
90105-T0241
91511-G0614
91511-G0630
Linked diagrams
8714
8719

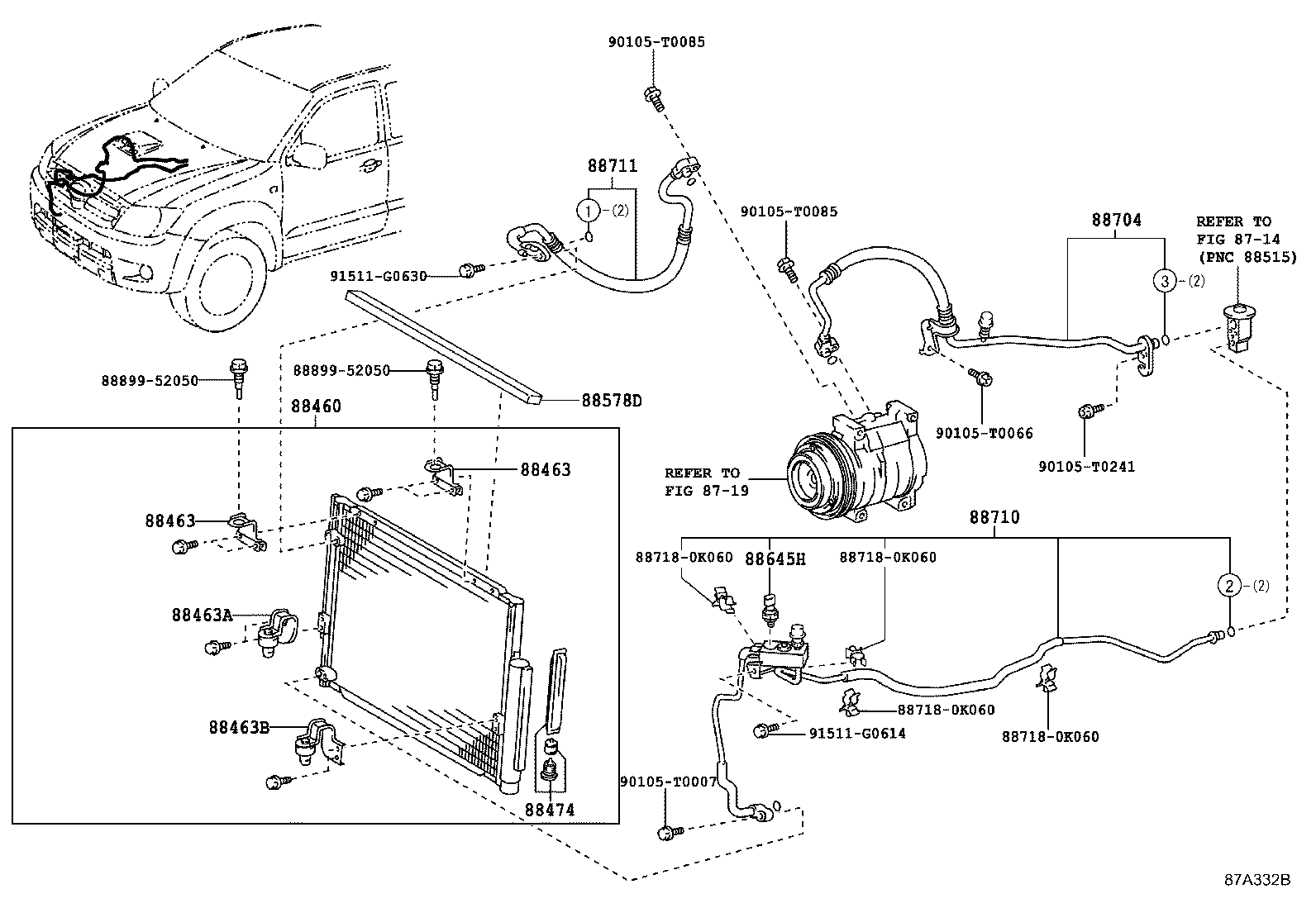

ILLUST NO. 1 OF 2(0810- )DCB,SCB

Click highlighted areas on diagram

SINGLE AIR CONDITIONER

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-0K080	KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88460-0K120	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88460-0K080	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88460-0K120	KUN15,2#..DCB,SCB COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-0K190	KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER	07/2005 - 10/2008	2
88463-0K190	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	2
88463-0K190	KUN15,2#..DCB,SCB COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	2
88463-0K190	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	2
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-0K190	KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER	07/2005 - 10/2008	2
88463-0K190	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	2
88463-0K190	KUN15,2#..DCB,SCB COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	2
88463-0K190	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-0K200	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88463-0K200	KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88463-0K200	KUN15,2#..DCB,SCB COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88463-0K200	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-0K210	KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88463-0K210	KUN15,2#..DCB,SCB COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88463-0K210	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88463-0K210	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88474 - DRYER, COOLER
88474-02220	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88474-02220	KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88474-02220	KUN15,2#..DCB,SCB COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88474-02220	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88704 - HOSE SUB-ASSY, SUCTION
88704-0K190	KUN15,25..DCB,SCB SINGLE AIR CONDITIONER	07/2005 - 10/2006	1
88704-0K050	KUN15,25..LHD..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2006	1
88704-0K701	KUN15,2#..LHD..(DCB,SCB) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2009	1
88704-0K680	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88704-0K702	KUN15,2#..LHD..(DCB,SCB) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	09/2009 - 08/2011	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0K010	KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88710-0K030	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88710-0K010	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88710-0K030	KUN15,2#..DCB,SCB COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 08/2011	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K090	KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88703-0K260	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88711-0K091	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	11/2008 - 11/2009	1
88711-0K090	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 11/2008	1
88711-0K092	KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER	11/2009 - 08/2011	1
Common parts
88718-0K060
88899-52050
90105-T0007
90105-T0066
90105-T0085
90105-T0241
91511-G0614
91511-G0630
Linked diagrams
8714
8719
