KUN15L-PRMDHW3 (2006)

Toyota Hilux

Production Oct 2006 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507-0810)DCB,SCB

Click highlighted areas on diagram

diagram 1601 88310E 88330A 88431 88440B 88440D 88688K 9009904349 9009907065 9009907114 90105T0040 90105T0040 90105T0066 90119T0186 9331915008
Part # Description Qty Price
88310E - COMPRESSOR, W/MAGNET CLUTCH
88310-0K110

KUN15,2#..DCB,SCB

SINGLE AIR CONDITIONER

 1
88310-0K112

KUN15,2#..DCB,SCB

SINGLE AIR CONDITIONER

 1
88310-0K111

KUN15,2#..DCB,SCB

SINGLE AIR CONDITIONER

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-0K060

KUN15,2#..DCB,SCB

SINGLE AIR CONDITIONER

 1
88440B - PULLEY ASSY, IDLE
88440-0K250

KUN15,2#..DCB,SCB

SINGLE AIR CONDITIONER

 1
88440D - PULLEY ASSY, IDLE NO.2
88440-0K030

KUN15,2#..DCB,SCB

SINGLE AIR CONDITIONER

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-0K140

KUN15,2#..DCB,SCB

SINGLE AIR CONDITIONER

 1
Common parts
90099-04349
90099-07065
90099-07114
90105-T0040
90105-T0066
90119-T0186
93319-15008
Linked diagrams
1601

(0808- )THDCB,THSCB,XTR ; (0810- )DCB,SCB

Click highlighted areas on diagram

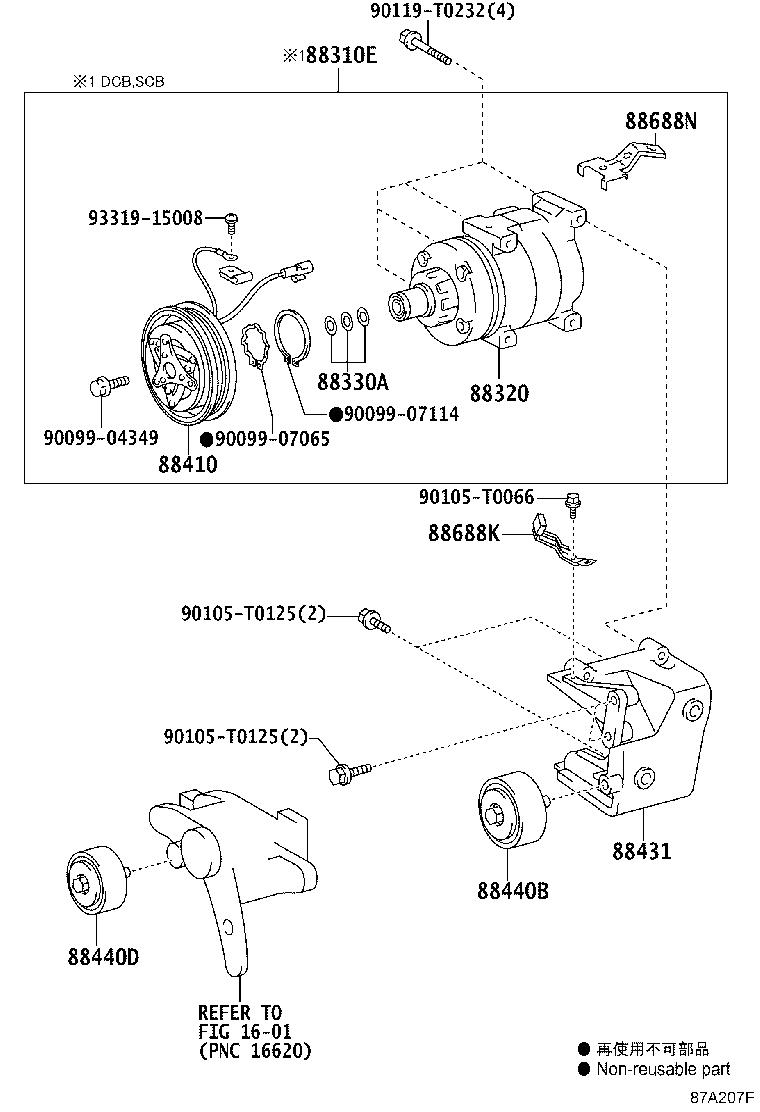

diagram 1601 88310E 88320 88330A 88410 88431 88440B 88440D 88688K 88688N 9009904349 9009907065 9009907114 90105T0066 90105T0125 90105T0125 90119T0232 9331915008
Part # Description Qty Price
88310E - COMPRESSOR, W/MAGNET CLUTCH
88310-0K110

KUN15,2#..DCB,SCB

SINGLE AIR CONDITIONER

 1
88310-0K112

KUN15,2#..DCB,SCB

SINGLE AIR CONDITIONER

 1
88310-0K111

KUN15,2#..DCB,SCB

SINGLE AIR CONDITIONER

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-0K060

KUN15,2#..DCB,SCB

SINGLE AIR CONDITIONER

 1
88440B - PULLEY ASSY, IDLE
88440-0K250

KUN15,2#..DCB,SCB

SINGLE AIR CONDITIONER

 1
88440D - PULLEY ASSY, IDLE NO.2
88440-0K030

KUN15,2#..DCB,SCB

SINGLE AIR CONDITIONER

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-0K140

KUN15,2#..DCB,SCB

SINGLE AIR CONDITIONER

 1
Common parts
90099-04349
90099-07065
90099-07114
90105-T0066
90105-T0125
90119-T0232
93319-15008
Linked diagrams
1601
