KUN15L-PRMDHW3 (2006)
Toyota Hilux

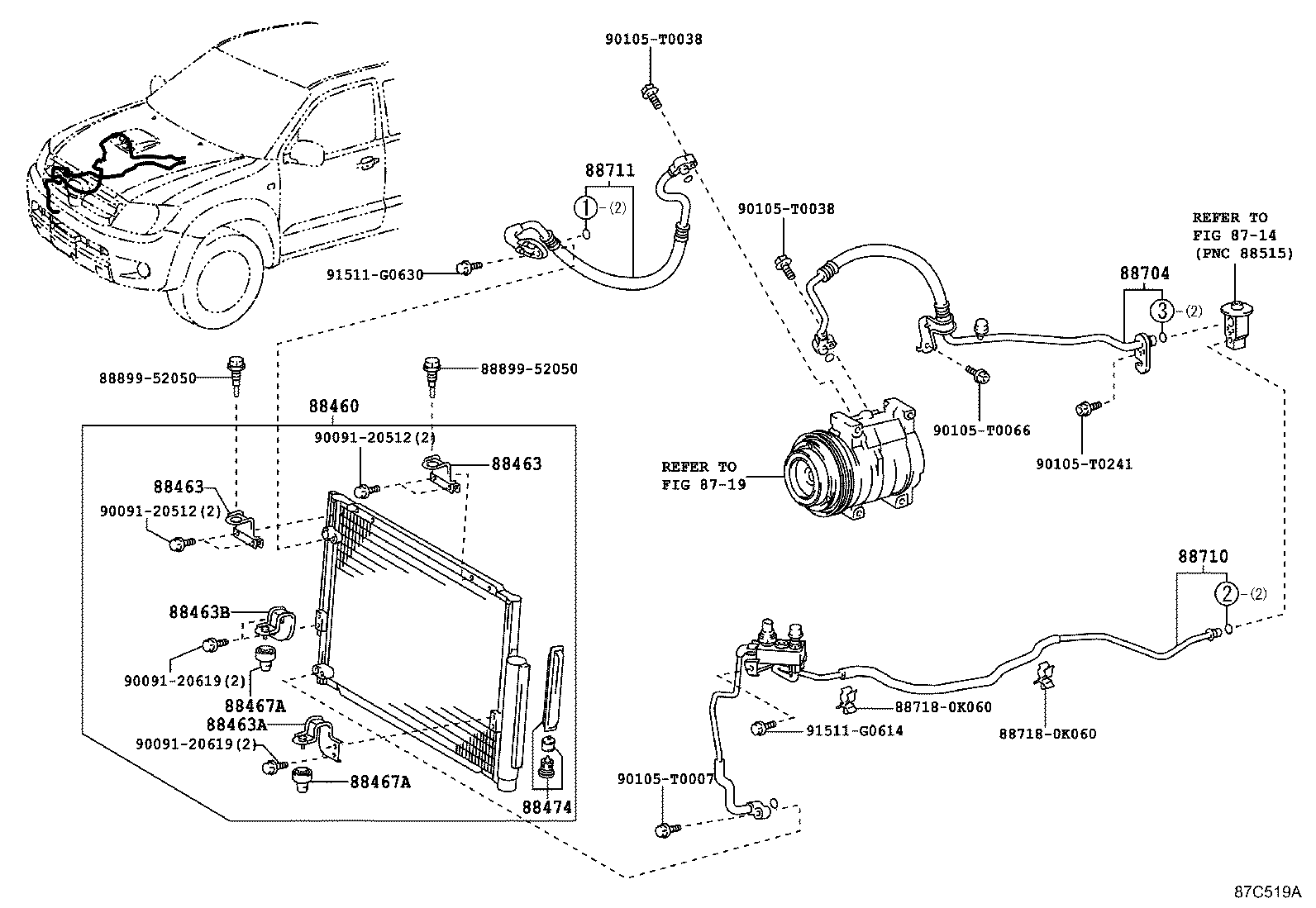

ILLUST NO. 1 OF 2(0507-0810)DCB,SCB
SINGLE AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K080 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K120 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-0K200 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K200 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-0K210 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K210 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-02220 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88474-02220 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K190 |
KUN15,25..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K050 |
KUN15,25..LHD..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K700 |
KUN15,25..LHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K680 |
KUN15,25..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0K010 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K030 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0K090 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88703-0K260 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88718-0K060 | ||||
| 88899-52050 | ||||
| 90091-20512 | ||||
| 90091-20619 | ||||
| 90105-T0007 | ||||
| 90105-T0038 | ||||
| 90105-T0066 | ||||
| 90105-T0241 | ||||
| 91511-G0614 | ||||
| 91511-G0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
