KUN15L-PRMDHW3 (2006)

Toyota Hilux

Production Oct 2006 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0808- )LHD

Click highlighted areas on diagram

MANUAL---AUTO AIR CONDITIONER

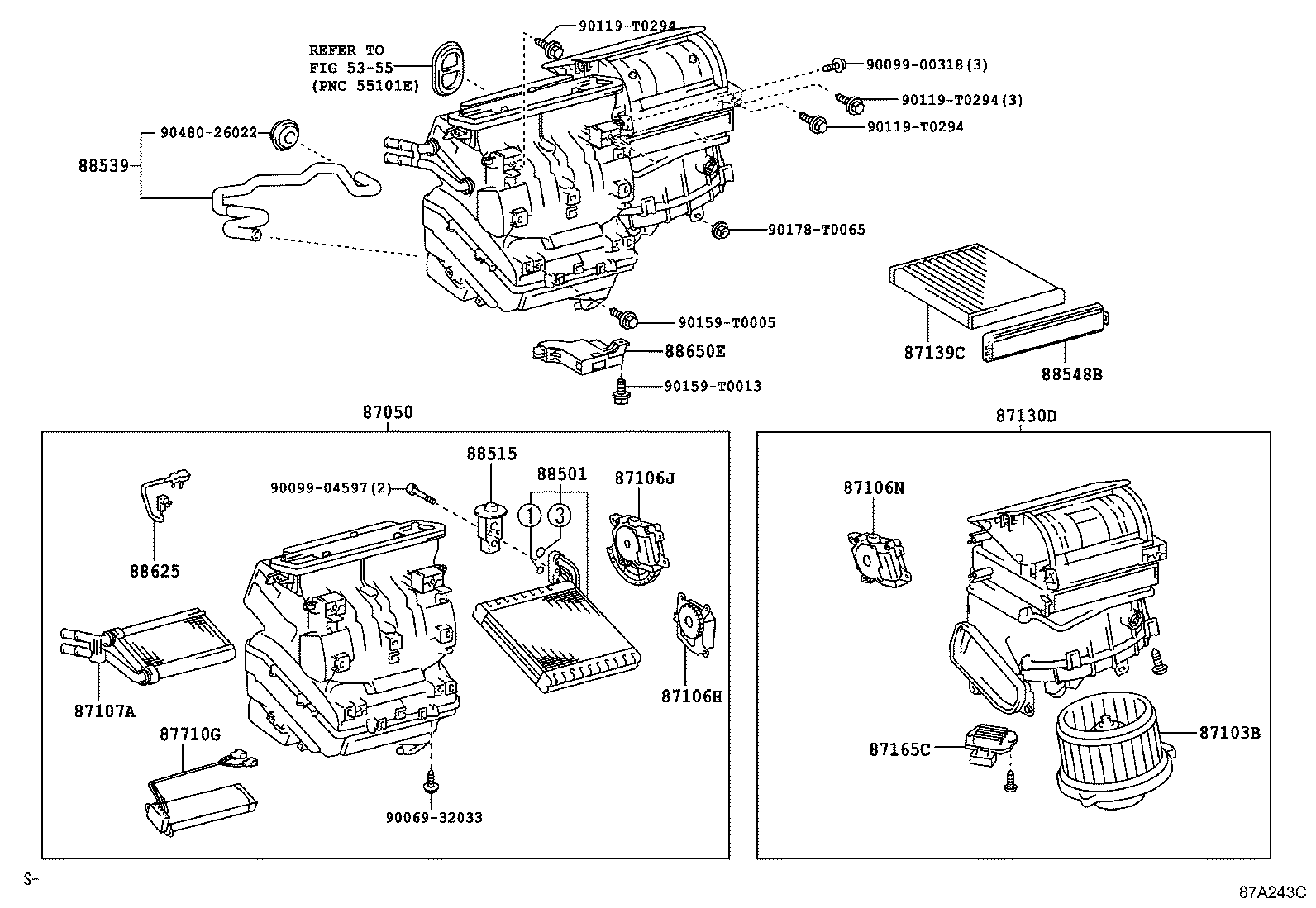

diagram 5355 87050 87103B 87106H 87106J 87106N 87107A 87130D 87139C 87165C 87710G 88501 88515 88539 88548B 88625 88650E 9006932033 9009900318 9009904597 90119T0294 90119T0294 90119T0294 90159T0005 90159T0013 90178T0065 9048026022
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0K240

KUN15,2#..LHD..(DCB,SCB)

 1
87050-0K260

KUN15,25..LHD..(DCB,SCB)..5F

COLD AREA SPEC

 1
87050-0K280

KUN15,25..LHD..(DCB,SCB)..5F

COLD AREA SPEC&SINGLE AIR CONDITIONER

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K150

KUN15,2#..LHD..(DCB,SCB)

 1
87103-0K270

KUN15,2#..LHD..(DCB,SCB)

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K050

KUN15,2#..DCB,SCB

 1
87130D - BLOWER ASSY
87130-0K150

KUN15,2#..LHD..(DCB,SCB)

 1
87710G - QUICK HEATER ASSY
87710-26070

KUN15,25..LHD;KUN26..LHD..DCB

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K120

KUN15,2#..DCB,SCB

 1
88501-0K121

KUN15,2#..DCB,SCB

 1
88515 - VALVE, COOLER EXPANSION
88515-71010

KUN15,25..DCB,SCB

 1
88515-26080

KUN15,25..(DCB,SCB)..5F

COLD AREA SPEC&SINGLE AIR CONDITIONER

 1
88515-0K190

KUN15,25..DCB,SCB

COLD AREA SPEC&SINGLE AIR CONDITIONER

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0K030

KUN15,2#..LHD..(DCB,SCB)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

KUN25..RHD;KUN15..RHD..XTR;KUN15..LHD..XTR..HDCR;KUN25..LHD..(DCB,SCB,THDCB,THSCB);KUN15,26..(DCB,SCB,THDCB,THSCB)..(4FC,5F)

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-0K140

KUN15,25..(DCB,SCB)..5F

COLD AREA SPEC&SINGLE AIR CONDITIONER

 1
88650-0K150

KUN15,2#..DCB,SCB

 1
88650-0K130

KUN15,25..(DCB,SCB)..5F

COLD AREA SPEC

 1
Common parts
90069-32033
90099-00318
90099-04597
90119-T0294
90159-T0005
90159-T0013
90178-T0065
90480-26022
Linked diagrams
5355
