KUN15L-PRMDHW3 (2006)

Toyota Hilux

Production Oct 2006 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507-0808)THDCB,THSCB,XTR ; (0507-0810)DCB,SCB

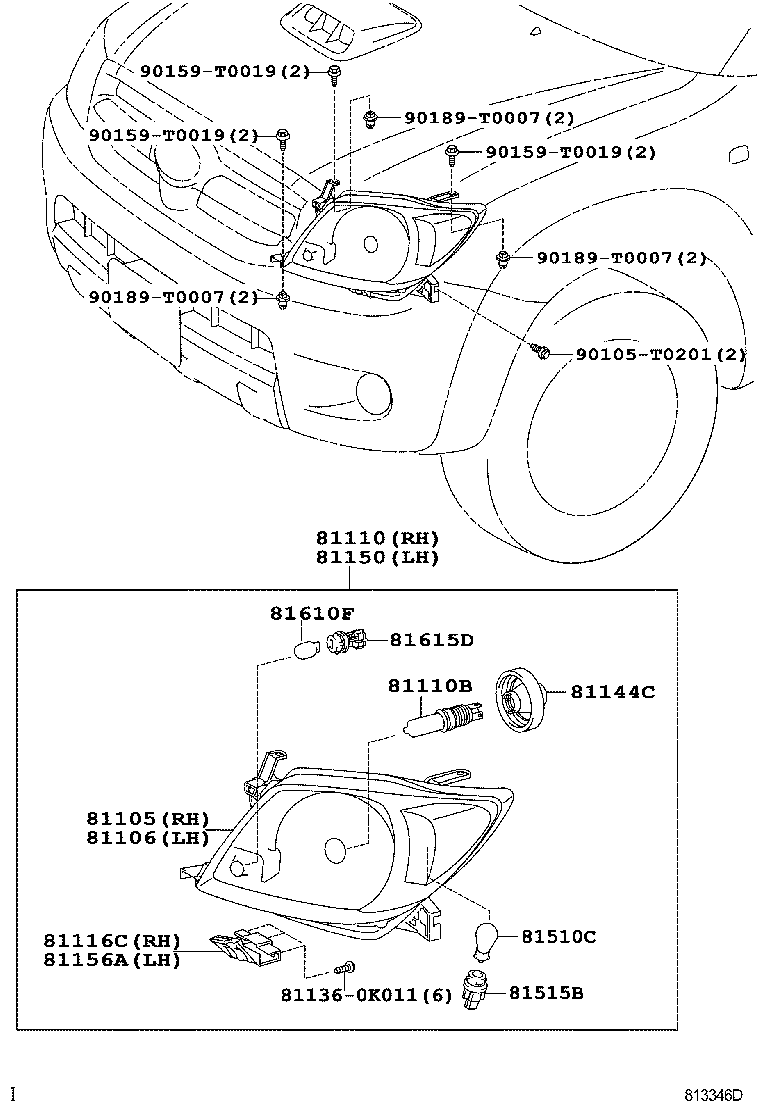

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81116C 811360K011 81144C 81150 81156A 81510C 81515B 81610F 81615D 90105T0201 90159T0019 90159T0019 90159T0019 90189T0007 90189T0007 90189T0007
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81130-0K080

KUN15,2#..LHD..(DCB,SCB)

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81170-0K080

KUN15,2#..LHD..(DCB,SCB)

 1
81110 - HEADLAMP ASSY, RH
81110-0K080

KUN15,2#..LHD..(DCB,SCB)

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

KUN15..XTR..DCR;KUN15,2#..DCB,SCB

12V 60/55W,*HAL *WH

 2
81116C - BRACKET, HEADLAMP, RH
81116-0K010

KUN15,2#..4FC,5F

 1
81144C - COVER, HEADLAMP SOCKET
90069-81040

KUN15,2#..DCB,SCB

 2
81150 - HEADLAMP ASSY, LH
81150-0K080

KUN15,2#..LHD..(DCB,SCB)

 1
81156A - BRACKET, HEADLAMP, LH
81156-0K010

KUN15,2#..4FC,5F

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

KUN15,2#..4FC,5F

12V 21W

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90069-81057

KUN15,2#..DCB,SCB

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

KUN15,2#..4FC,5F

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90069-81058

KUN15,2#..DCB,SCB

 2
Common parts
81136-0K011
90105-T0201
90159-T0019
90189-T0007

(0808- )THDCB,THSCB,XTR ; (0810- )DCB,SCB

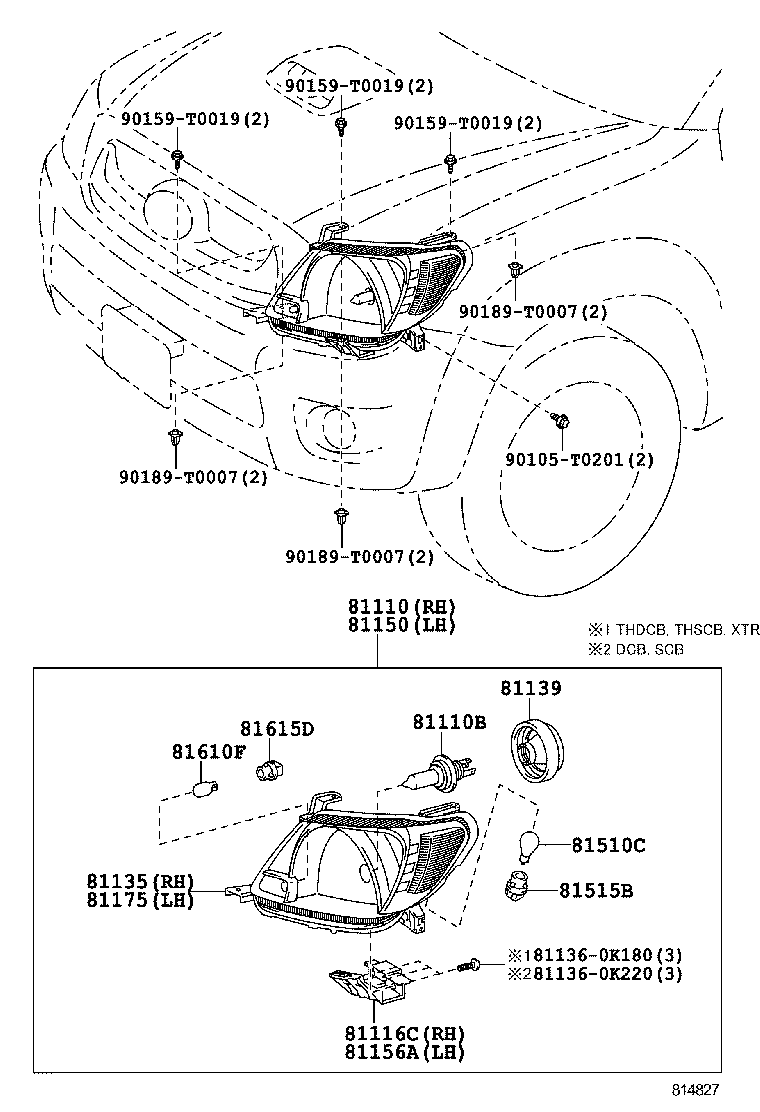

Click highlighted areas on diagram

diagram 81110 81110B 81116C 81135 811360K180 811360K220 81139 81150 81156A 81175 81510C 81515B 81610F 81615D 90105T0201 90159T0019 90159T0019 90159T0019 90189T0007 90189T0007 90189T0007
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-0K080

KUN15,2#..LHD..(DCB,SCB)

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

KUN15..XTR..DCR;KUN15,2#..DCB,SCB

12V 60/55W,*HAL *WH

 2
81116C - BRACKET, HEADLAMP, RH
81116-0K010

KUN15,2#..4FC,5F

 1
81150 - HEADLAMP ASSY, LH
81150-0K080

KUN15,2#..LHD..(DCB,SCB)

 1
81156A - BRACKET, HEADLAMP, LH
81156-0K010

KUN15,2#..4FC,5F

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

KUN15,2#..4FC,5F

12V 21W

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90069-81057

KUN15,2#..DCB,SCB

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

KUN15,2#..4FC,5F

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90069-81058

KUN15,2#..DCB,SCB

 2
Common parts
81136-0K180
81136-0K220
90105-T0201
90159-T0019
90189-T0007
