KUN15L-PRMDHW3 (2006)
Toyota Hilux

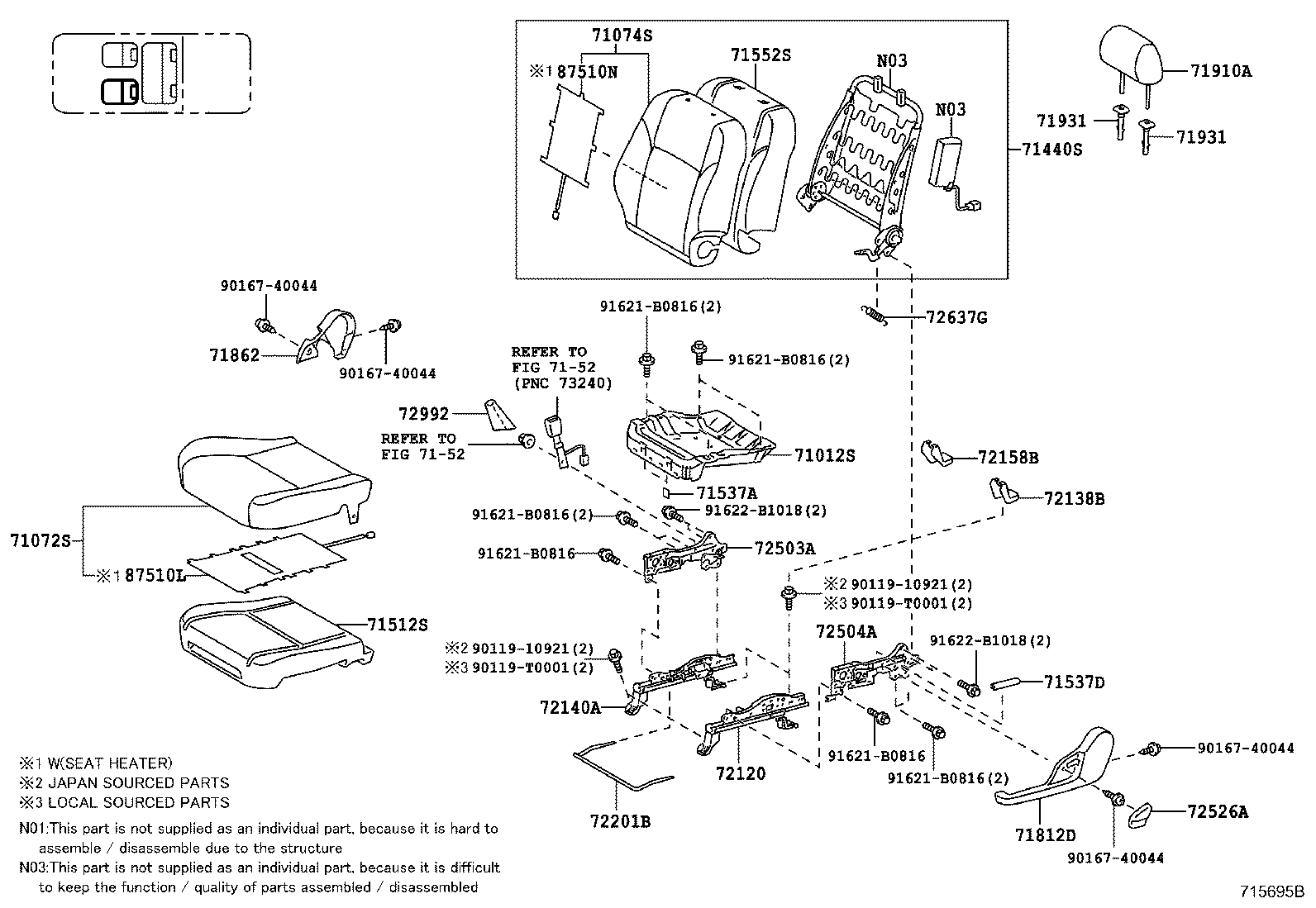

ILLUST NO. 1 OF 3(0808- )LHD
DRIVER SEAT W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-0K030 |
KUN2#..DCB,THDCB;KUN15..(DCB,THDCB)..DLX..HDCR |
1 | ||
| 71011-0K030 |
KUN15..SR;KUN15,25..LHD..SCB;KUN15..(DCB,XTR)..DCR |
1 | ||
| 71011-0K050 |
KUN15,2#..(DCB,THDCB)..(4FC,5F) |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0K210B1 |
KUN15,25..LHD..DCB..DLX NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1# |
1 | ||
| 71072-0K190B1 |
KUN15,25..DCB..DLX MID. GRAY,TRIM1# |
1 | ||
| 71072-0K210B1 |
KUN15,25..LHD..DCB..DLX NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND,MID. GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-0K200B2 |
KUN15,25..DCB..DLX MID. GRAY,TRIM1# |
1 | ||
| 71073-0K240B2 |
KUN15,25..LHD..DCB..DLX NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND,MID. GRAY,TRIM1# |
1 | ||
| 71073-0K240B2 |
KUN15,25..LHD..DCB..DLX NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-0K050 |
KUN15..LHD;KUN15..RHD..XTR;KUN25..LHD..(SCB,THSCB);KUN2#..(DCB,THDCB,XTR)..(4FC,5F) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-0K020 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F) |
4 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-71010 |
KUN15..LHD;KUN15..RHD..XTR;KUN25..LHD..(SCB,THSCB);KUN2#..(DCB,THDCB,XTR)..(4FC,5F) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-0K020 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0K020B0 |
KUN15,25..LHD;KUN26..4FC,5F;KUN25..RHD..(DCB,THDCB) GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0K020B0 |
KUN15..LHD;KUN15..RHD..XTR;KUN25..LHD..(SCB,THSCB);KUN2#..(DCB,THDCB,XTR)..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0K140B3 |
KUN15,25..DCB..DLX MID. GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02080B3 |
KUN15,2#..DCB,SCB W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02060B1 |
KUN15,2#..DCB,SCB W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02080B3 |
KUN15,2#..DCB,SCB W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02060B1 |
KUN15,2#..DCB,SCB W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-0K010 |
KUN15,25..LHD;KUN26..4FC,5F;KUN25..RHD..(DCB,THDCB) |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-0K010B0 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-0K010 |
KUN15,25..LHD;KUN26..4FC,5F;KUN25..RHD..(DCB,THDCB) |
1 | ||
| 72158B - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-0K010B0 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72211-0K010 |
KUN15..LHD;KUN15..RHD..XTR;KUN25..LHD..(SCB,THSCB);KUN2#..(DCB,THDCB,XTR)..(4FC,5F) |
1 | ||
| 72503A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH | ||||
| 72503-0K040 |
KUN15..LHD;KUN15..RHD..XTR;KUN25..LHD..(SCB,THSCB);KUN2#..(DCB,THDCB,XTR)..(4FC,5F) |
1 | ||
| 72504A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH | ||||
| 72504-0K030 |
KUN15..LHD;KUN15..RHD..XTR;KUN25..LHD..(SCB,THSCB);KUN2#..(DCB,THDCB,XTR)..(4FC,5F) |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0K040B0 |
KUN15..LHD;KUN15..RHD..XTR;KUN25..LHD..(SCB,THSCB);KUN2#..(DCB,THDCB,XTR)..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 72637G - SPRING, SEAT BACK, LH | ||||
| 72637-0K010 |
KUN15..LHD;KUN15..RHD..XTR;KUN25..LHD..(SCB,THSCB);KUN2#..(DCB,THDCB,XTR)..(4FC,5F) |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-0K010 |
KUN15,25..LHD..DCB..5F NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K010 |
KUN15,25..LHD..DCB..5F NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-0K020 |
KUN15,25..LHD..DCB..5F NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-0K020 |
KUN15,25..LHD..DCB..5F NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 91621-B0816 | ||||
| 91622-B1018 | ||||
| Linked diagrams | ||||
| 7152 | ||||

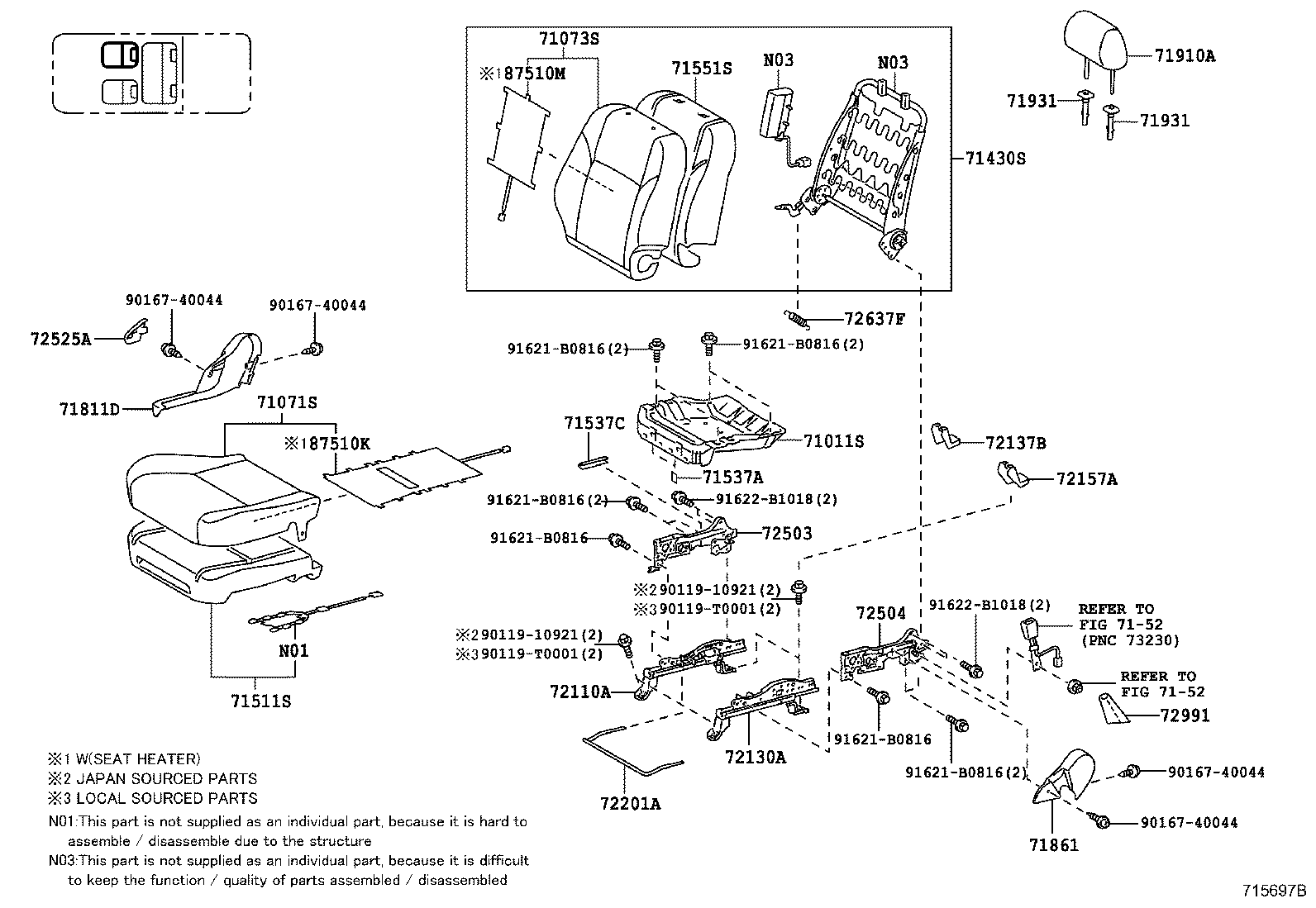

ILLUST NO. 2 OF 3(0808- )LHD
PASSENGER SEAT W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-0K030 |
KUN2#..DCB,THDCB;KUN15..(DCB,THDCB)..DLX..HDCR |
1 | ||
| 71011-0K030 |
KUN15..SR;KUN15,25..RHD..SCB;KUN15..(DCB,XTR)..DCR |
1 | ||
| 71011-0K050 |
KUN15,2#..(DCB,THDCB)..(4FC,5F) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0K280B2 |
KUN15,25..LHD..DCB..DLX NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND,MID. GRAY,TRIM1# |
1 | ||
| 71071-0K190B2 |
KUN15,25..DCB..DLX MID. GRAY,TRIM1# |
1 | ||
| 71071-0K280B2 |
KUN15,25..LHD..DCB..DLX NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0K200B2 |
KUN15,25..DCB..DLX MID. GRAY,TRIM1# |
1 | ||
| 71073-0K240B2 |
KUN15,25..LHD..DCB..DLX NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND,MID. GRAY,TRIM1# |
1 | ||
| 71073-0K240B2 |
KUN15,25..LHD..DCB..DLX NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-0K020 |
KUN15,2#..LHD..(DCB,THDCB,XTR)..(4FC,5F) SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 71511-0K050 |
KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F) |
1 | ||
| 71051-0K020 |
KUN15,25..LHD..(DCB,THDCB,XTR)..5F NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-0K020 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F) |
4 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-71010 |
KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0K020 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0K020B0 |
KUN15,25..RHD;KUN25..LHD..(DCB,THDCB);KUN15,26..(DCB,THDCB)..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0K020B0 |
KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0K140B3 |
KUN15,25..DCB..DLX MID. GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02080B3 |
KUN15,2#..DCB,SCB W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02060B1 |
KUN15,2#..DCB,SCB W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02080B3 |
KUN15,2#..DCB,SCB W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02060B1 |
KUN15,2#..DCB,SCB W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-0K010 |
KUN15,25..RHD;KUN25..LHD..(DCB,THDCB);KUN15,26..(DCB,THDCB)..(4FC,5F) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-0K010 |
KUN15,25..RHD;KUN25..LHD..(DCB,THDCB);KUN15,26..(DCB,THDCB)..(4FC,5F) |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-0K010B0 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-0K010B0 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72211-0K010 |
KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F) |
1 | ||
| 72503 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH | ||||
| 72503-0K030 |
KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F) |
1 | ||
| 72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH | ||||
| 72504-0K040 |
KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0K040B0 |
KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F) GRAY,TRIM1# |
1 | ||
| 72637F - SPRING, SEAT BACK, RH | ||||
| 72637-0K010 |
KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F) |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-0K010 |
KUN15,25..LHD..DCB..5F NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND |
1 | ||
| 87510-0K010 |
KUN15,25..LHD..DCB..5F NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-0K020 |
KUN15,25..LHD..DCB..5F NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND |
1 | ||
| 87510-0K020 |
KUN15,25..LHD..DCB..5F NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 91621-B0816 | ||||
| 91622-B1018 | ||||
| Linked diagrams | ||||
| 7152 | ||||
